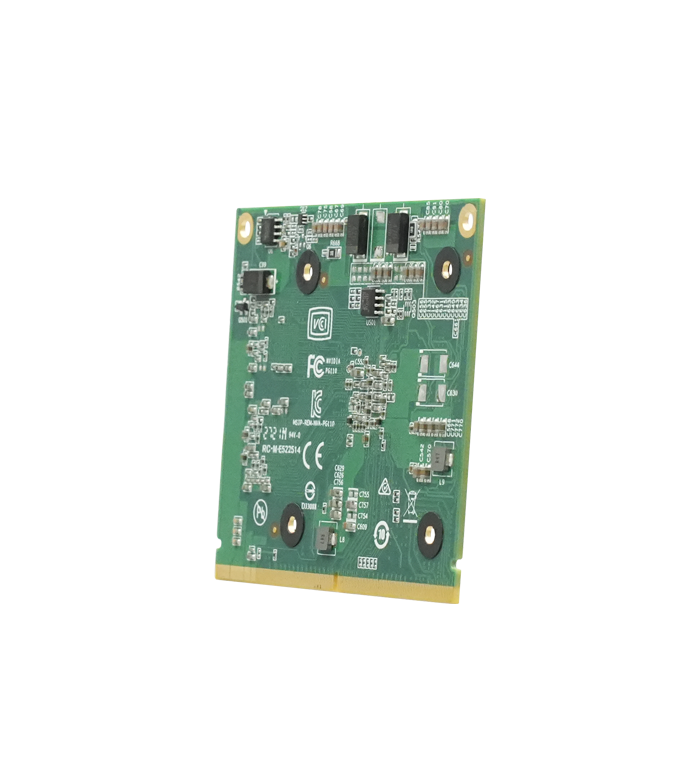

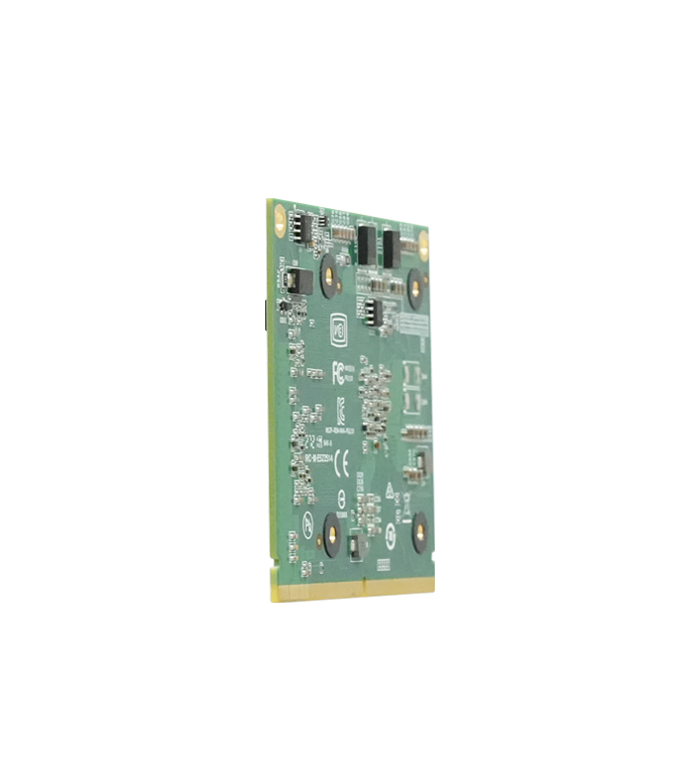

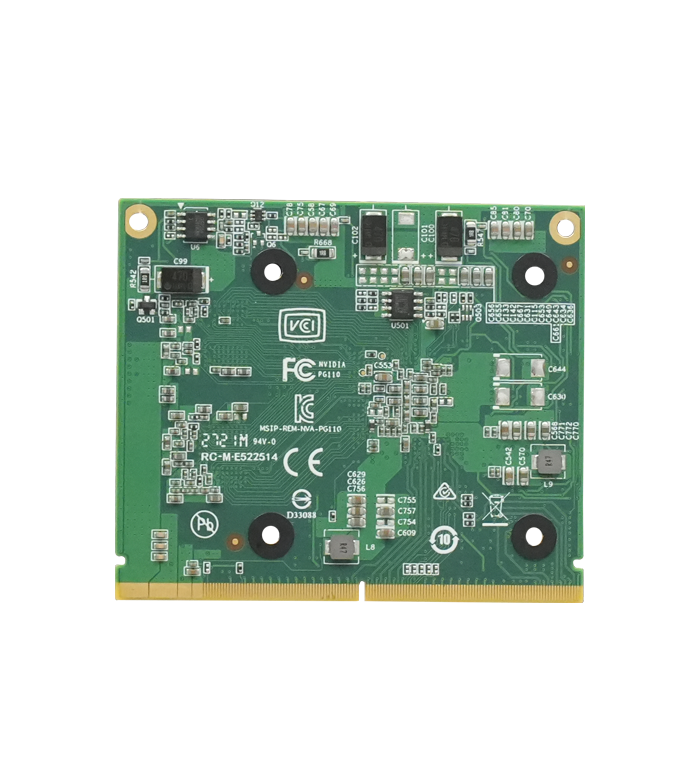

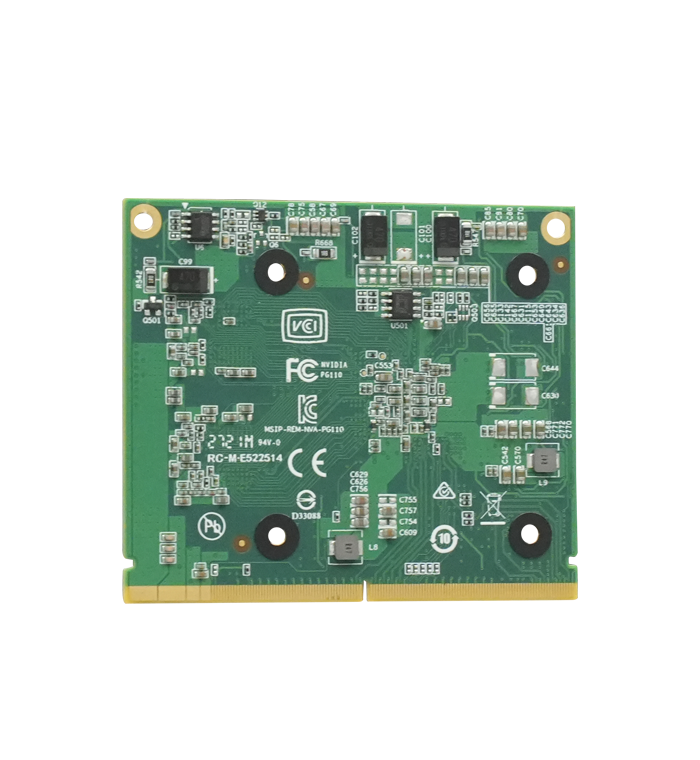

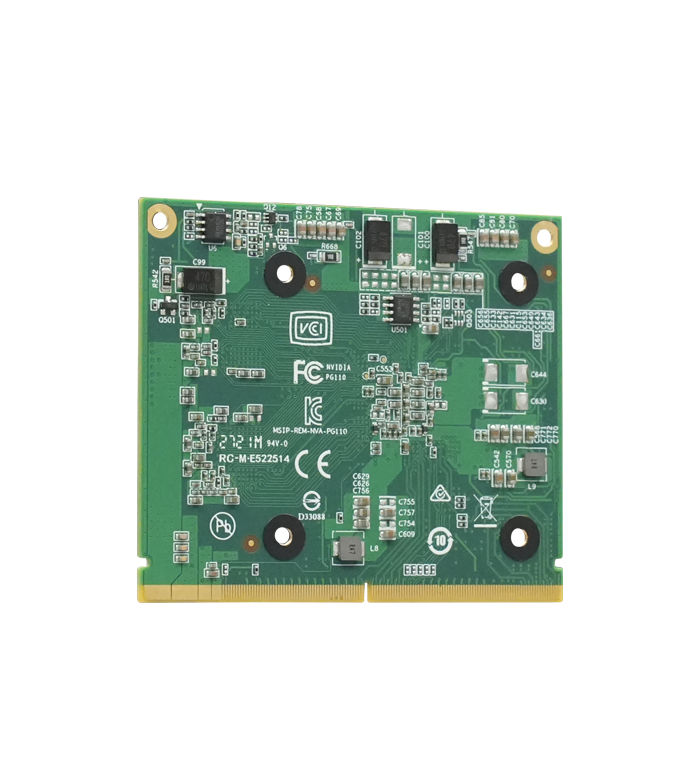

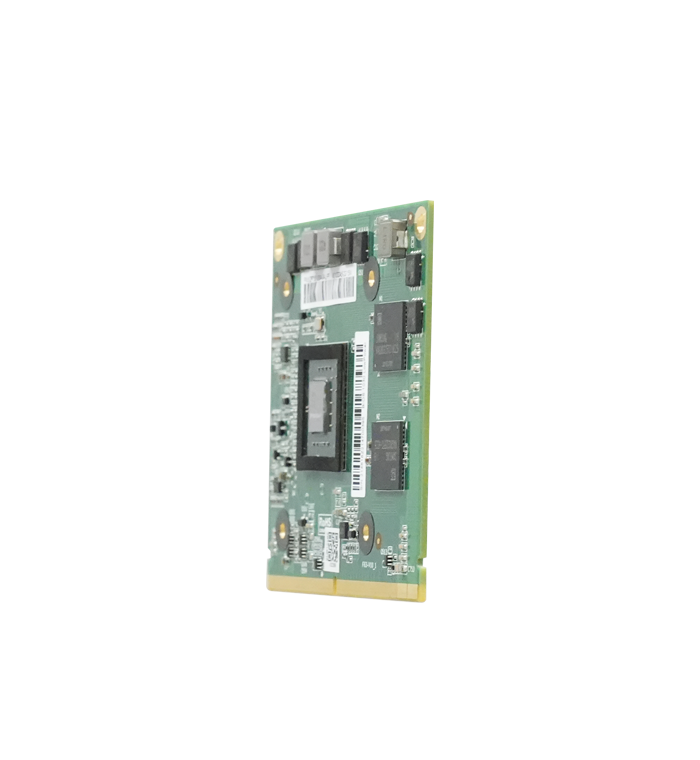

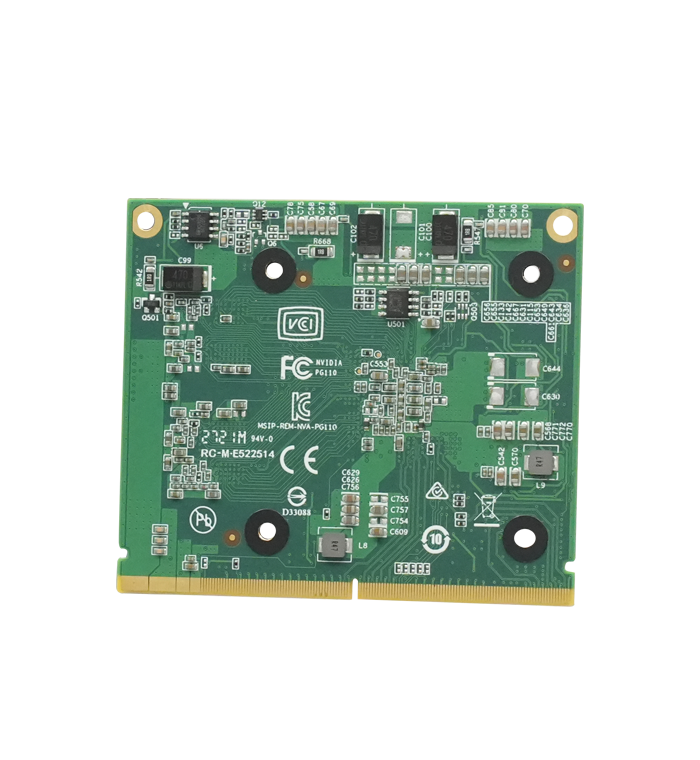

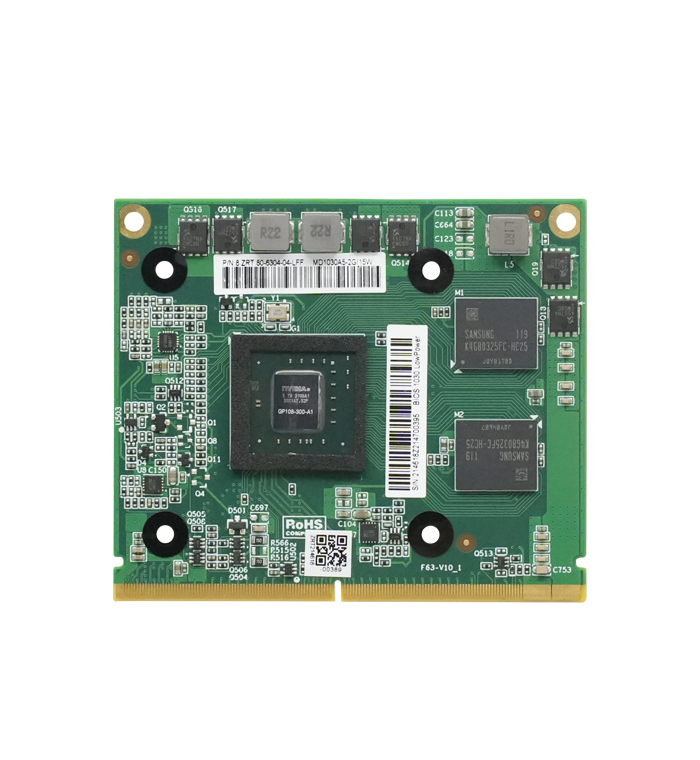

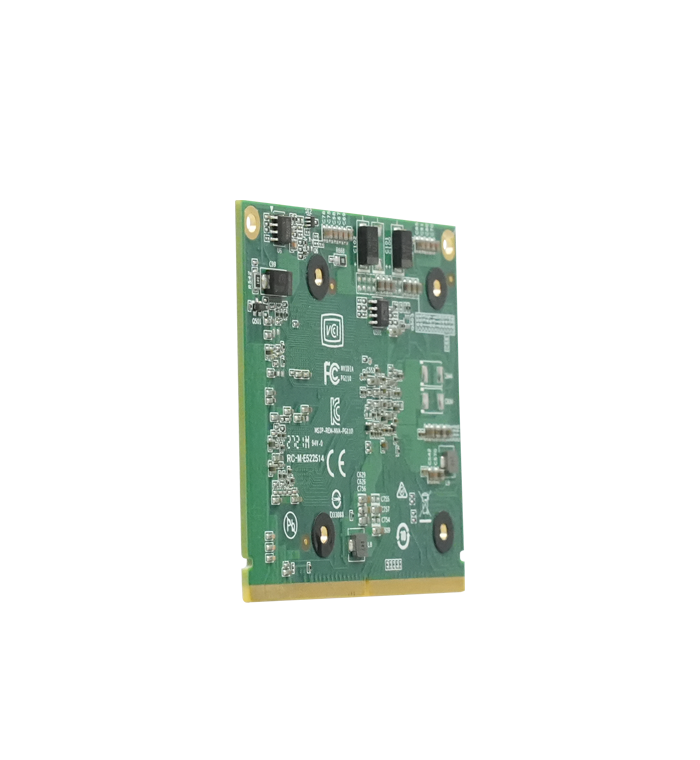

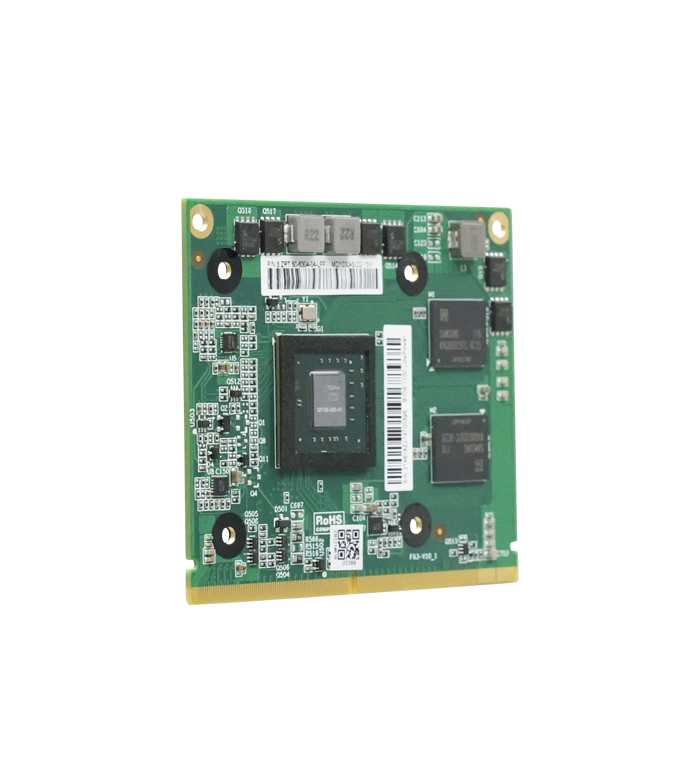

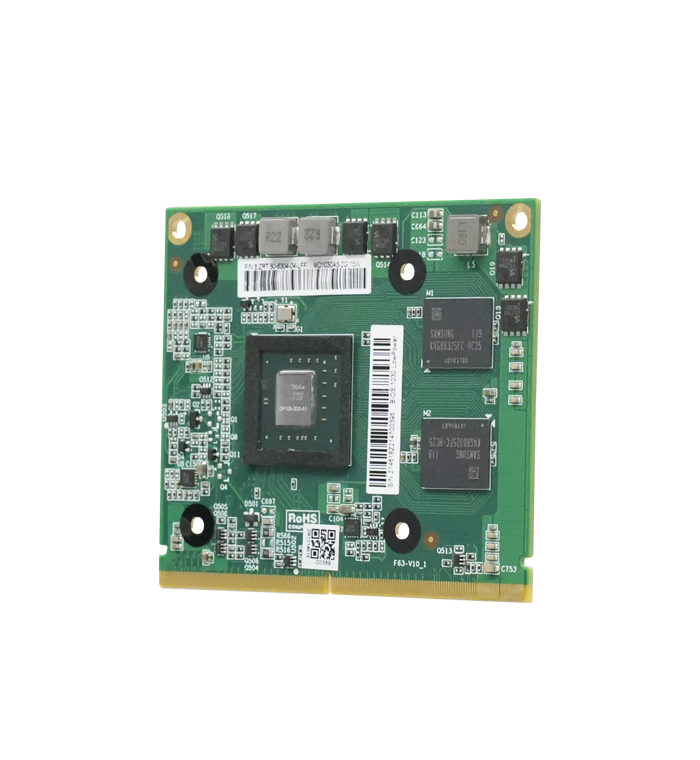

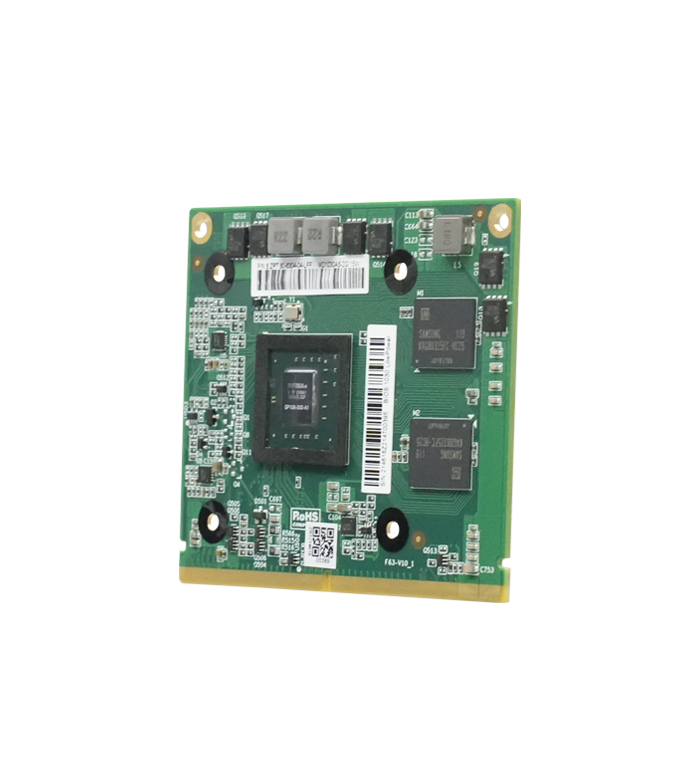

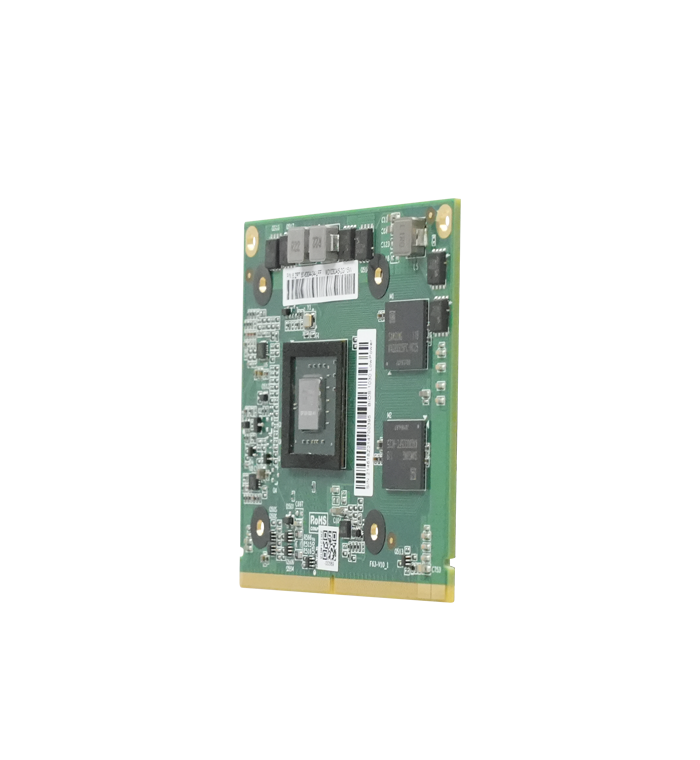

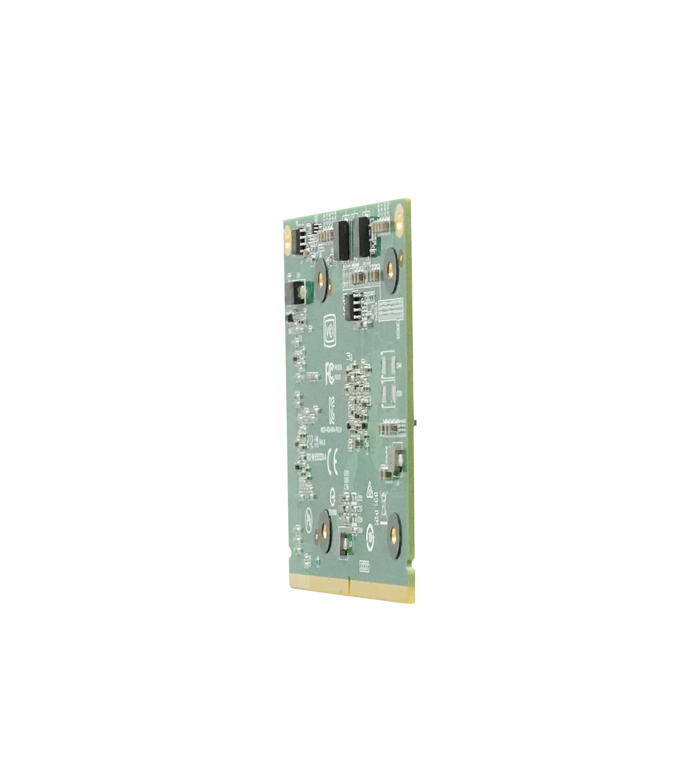

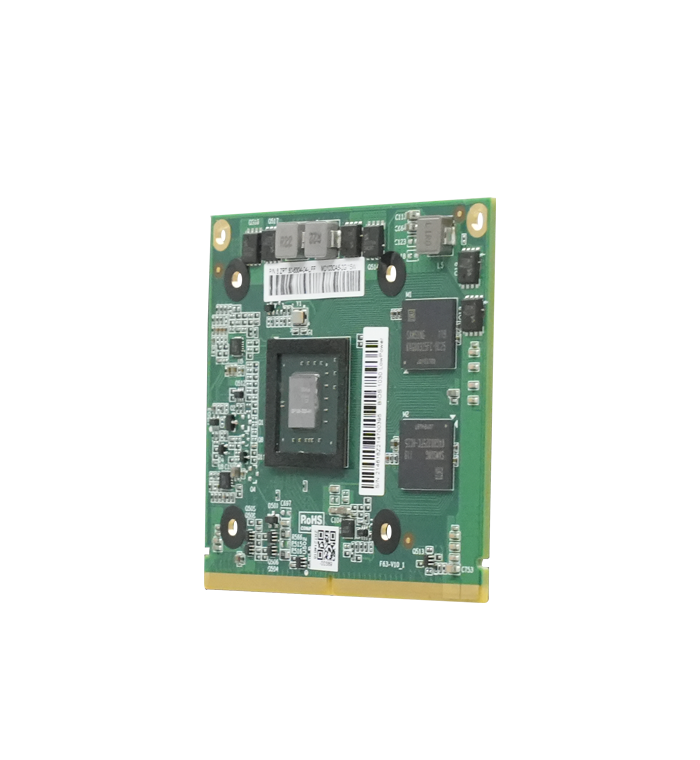

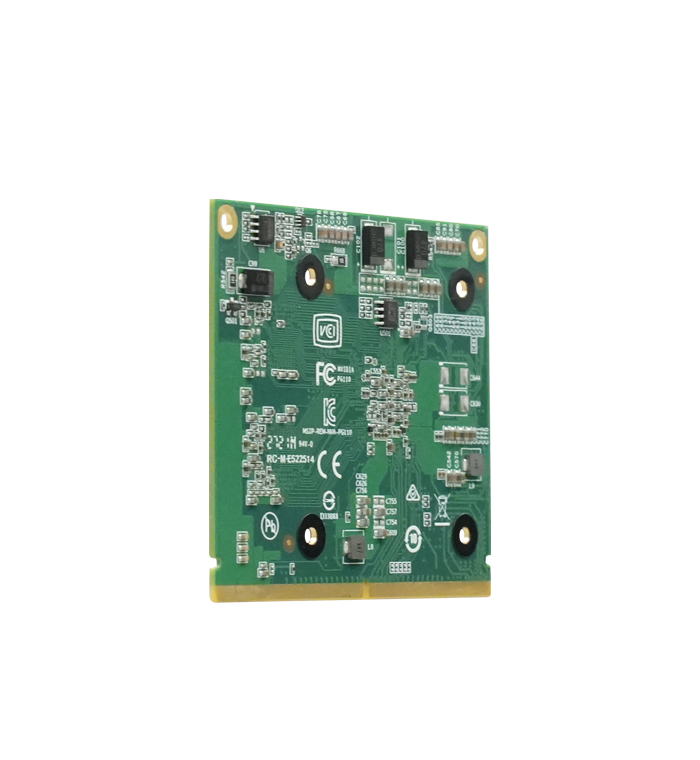

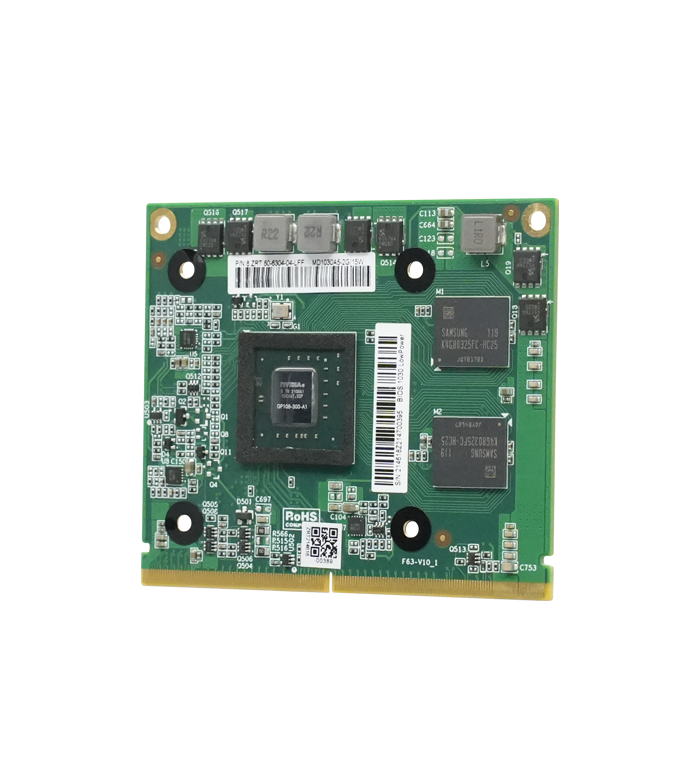

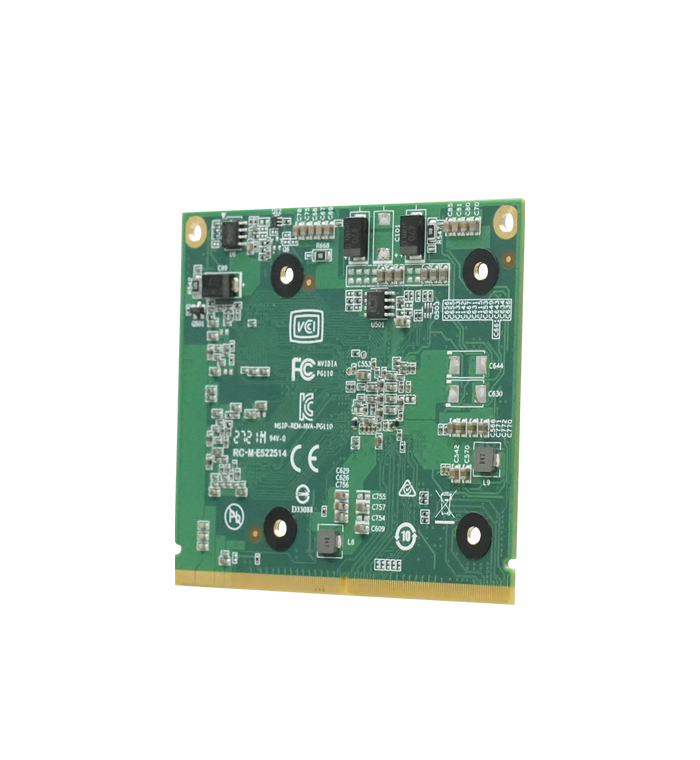

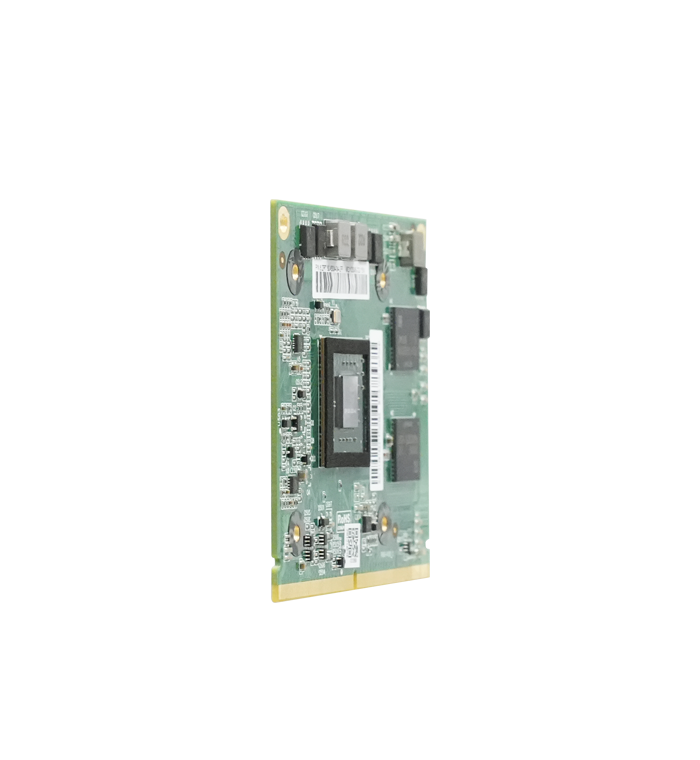

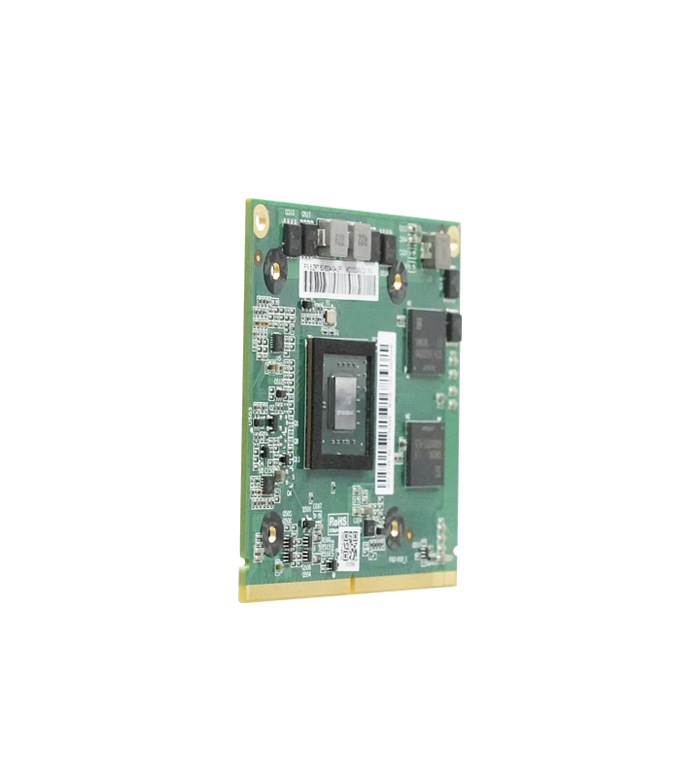

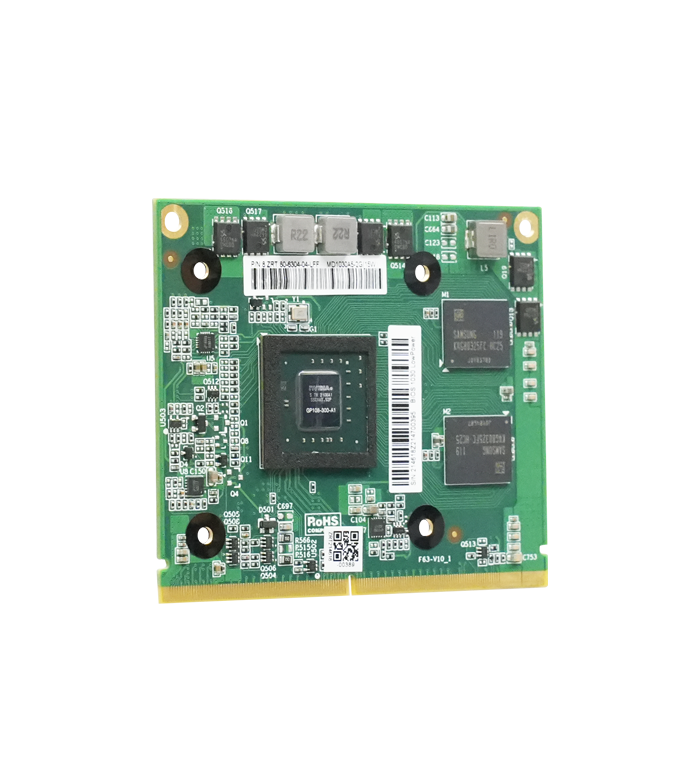

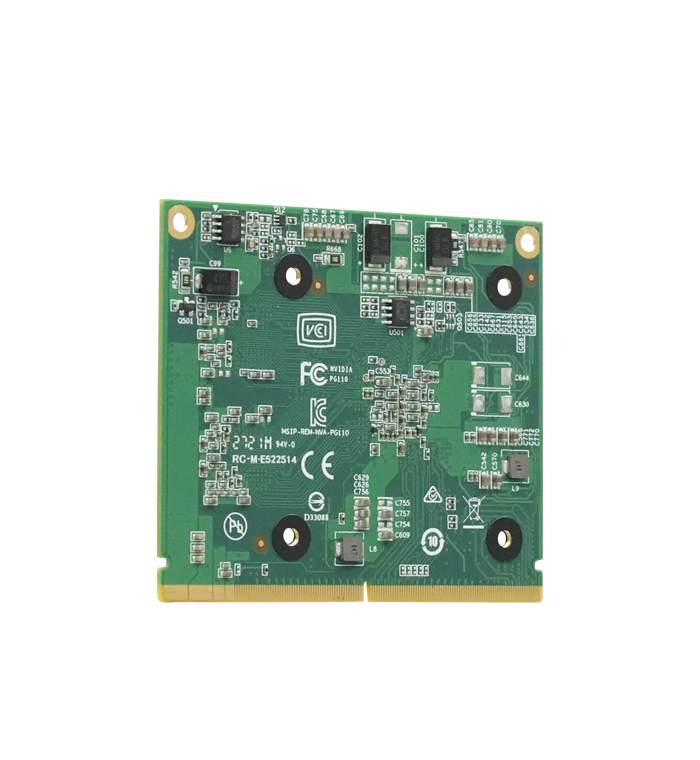

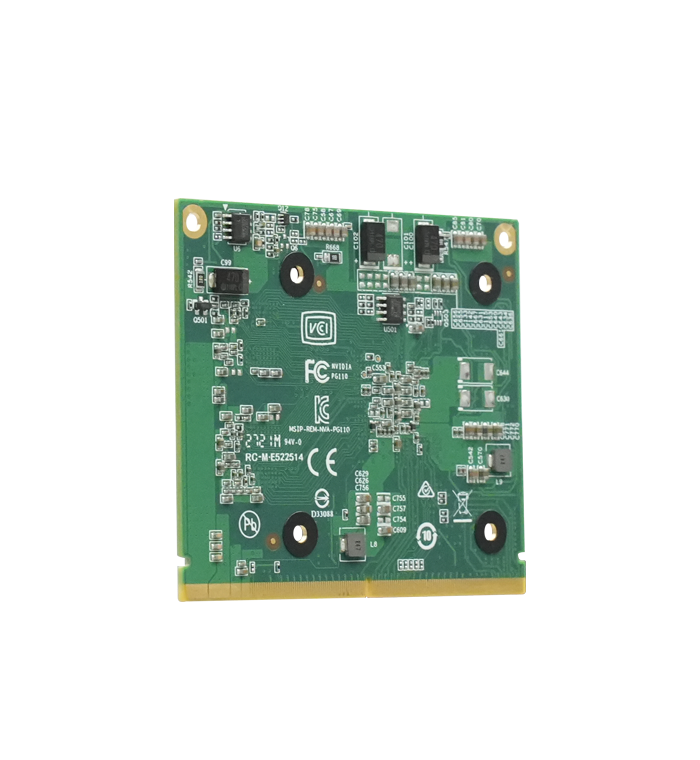

鼠标拖拽图片360°查看
产品特点
• NVIDIA GeForce GT1030显示芯片
• 2G GDDR5显存
• HDMI+DVI显示接口
• Type A尺寸
• MXM3.1插槽
| 处理器 Processor System | 图形核心 GPU | NVIDIA GeForce GT1030 | ||||
| GPU架构 Graphic Architecture | Pascal | |||||
| 流处理器 Shader | 384SP | |||||
| 基本频率 GPU clock | 1266MHz | |||||
| 内存 Memory | 显存规格 Technology | 2G GDDR5 | ||||
| 显存位宽 Interface Width | 64bit | |||||
| 显存带宽 Bandwidth | 48.1GB/s | |||||
| 显示 Graphics | 输出接口 DP | HDMI2.0+DVI | ||||
| 扩展 Bus | 插槽规格 PCI express 3.0 | MXM3.1 | ||||
| 功耗 Power Consumption | 最大TDP功耗 Max Power Consumption | 45W | ||||
| 电源要求 Power Supply | 350W | |||||
| 环境 Environment | 工作环境 Operating | 储存环境 Storage Temperature | ||||
| 温度 Temperature | 0~45°C | -20~75°C | ||||
| 湿度 Humidity | 0~95%（non-condensing） | 10~90% | ||||
| 物理特性 Physica | 尺寸 Dimensions | 70*82mm | ||||
| 规格 Form Factor | MXM3.1 | |||||
| 保固 warranty | 3 Years | |||||
| 操作系统 OS | Microsoft | Windows 7/8/8.1/10 64bit、Windows 11 | ||||
| Linux | Linux 32/64bit | |||||
