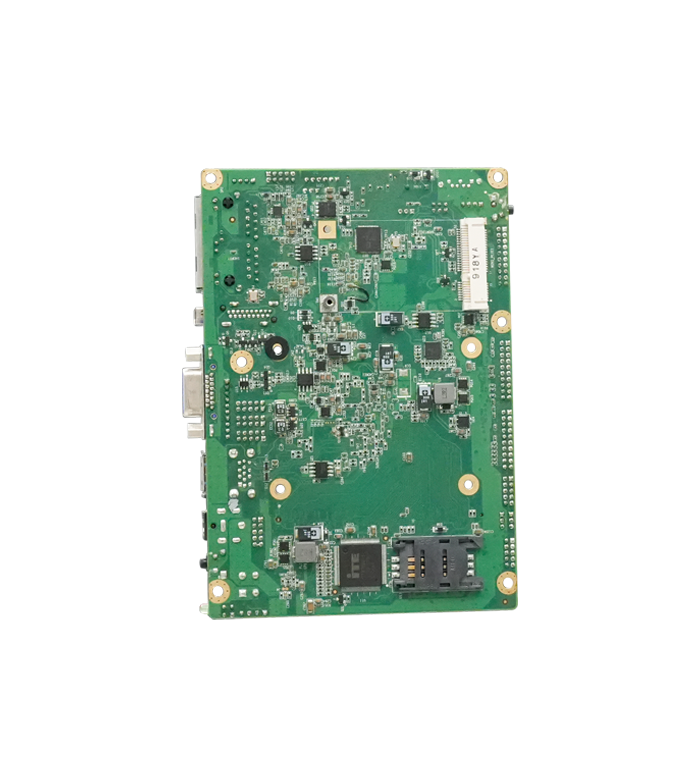

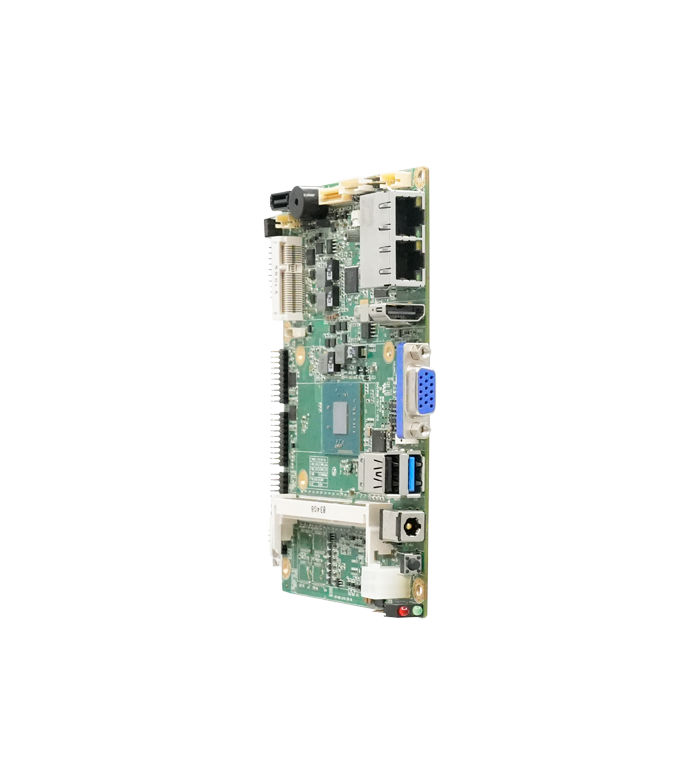

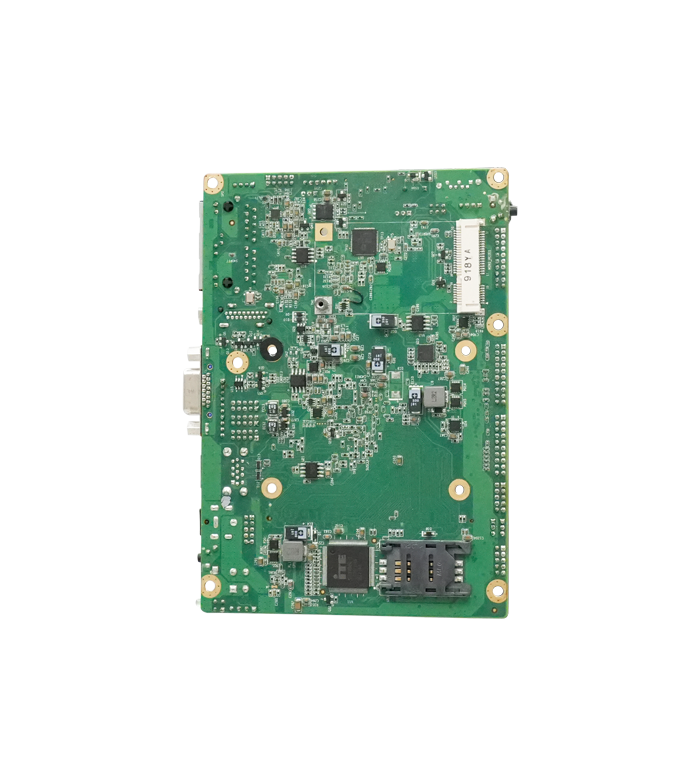

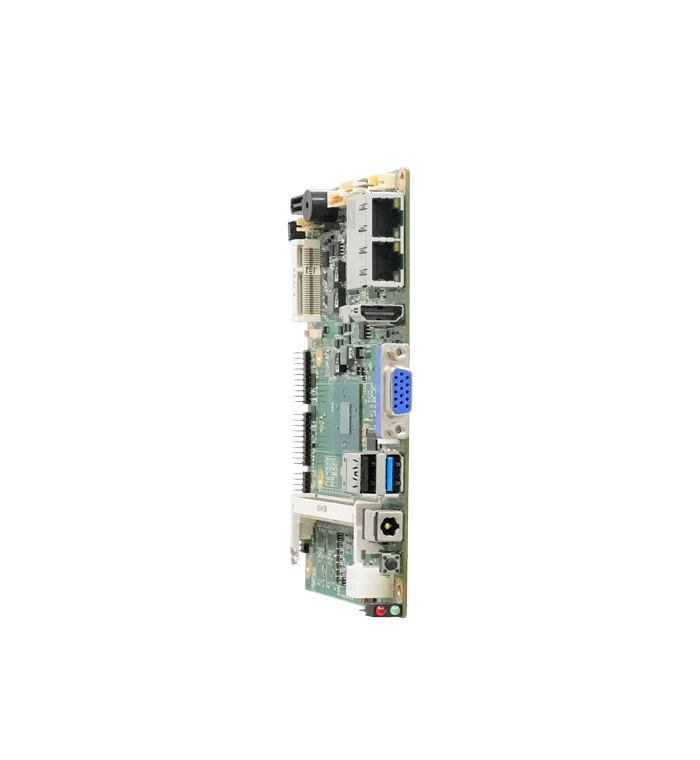

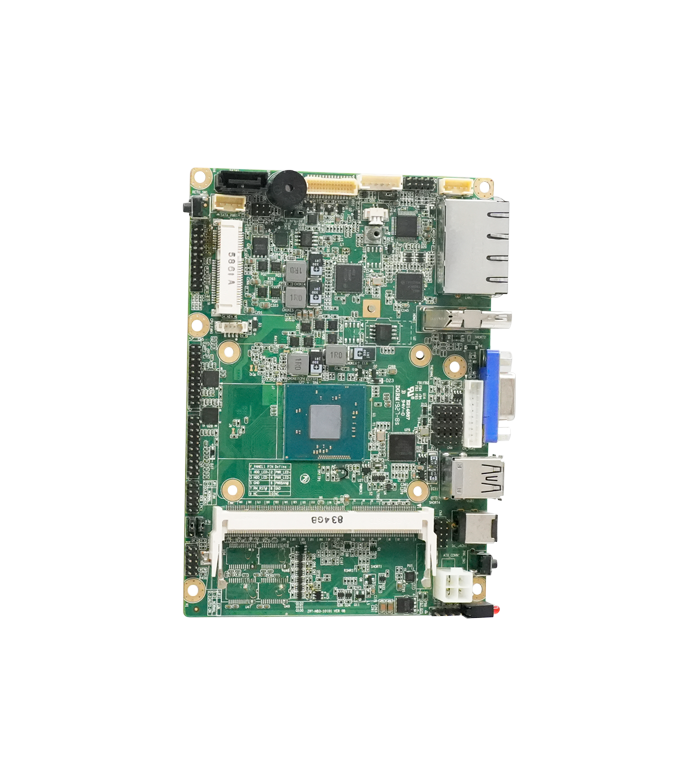

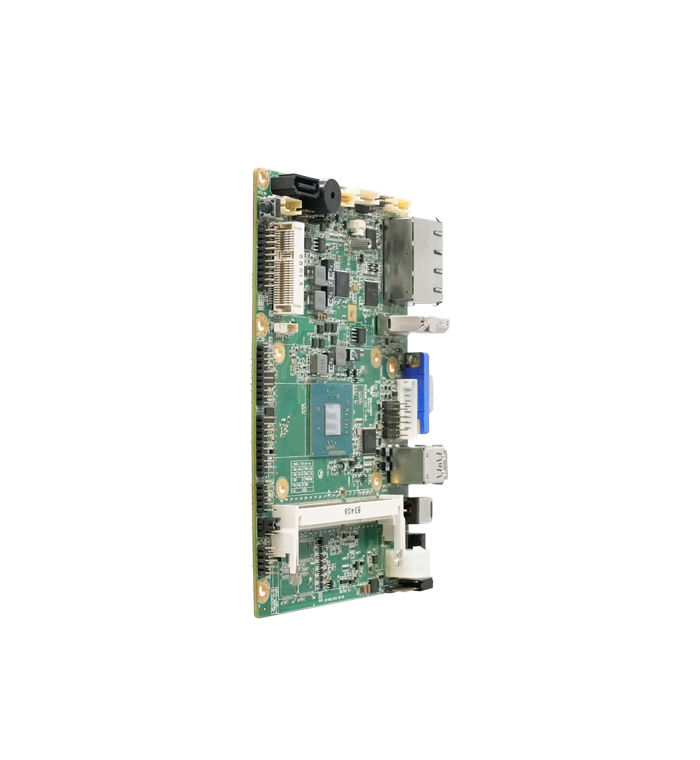

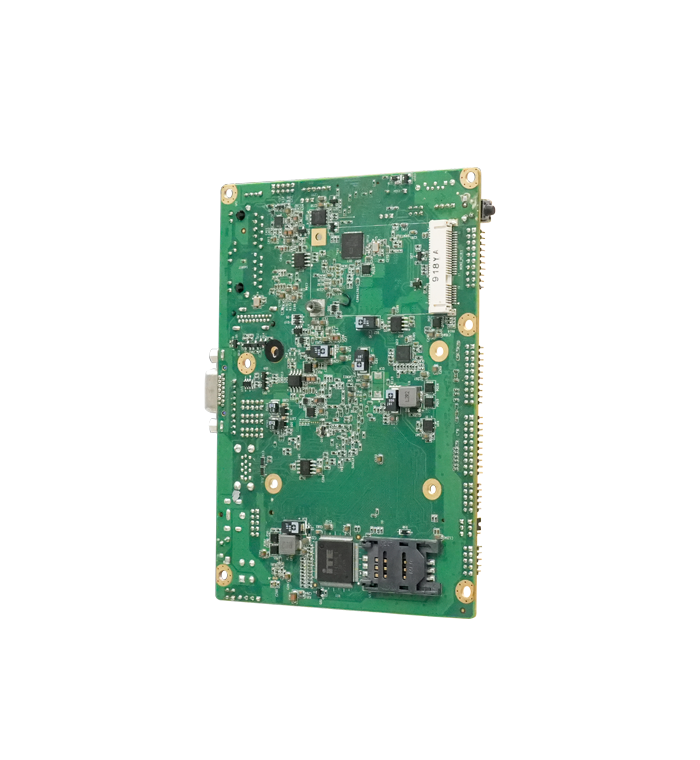

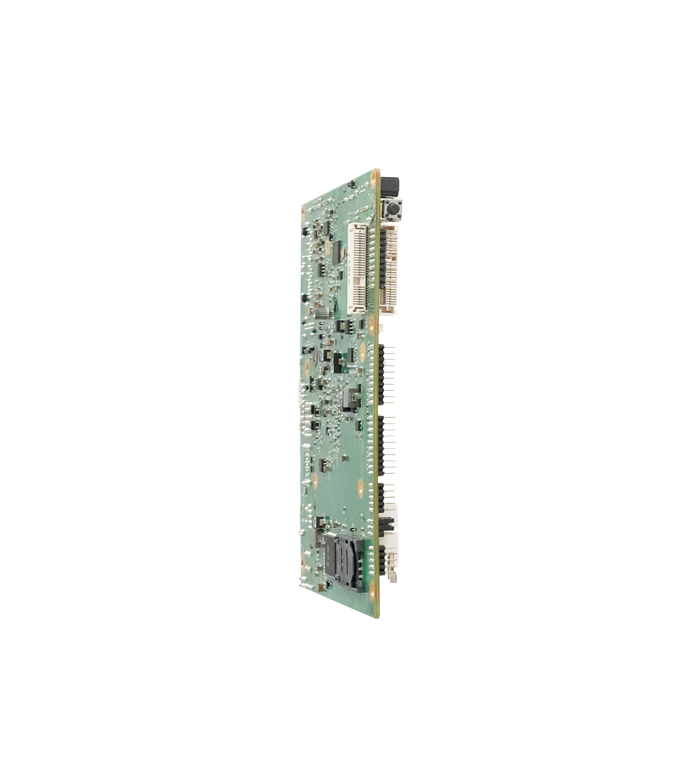

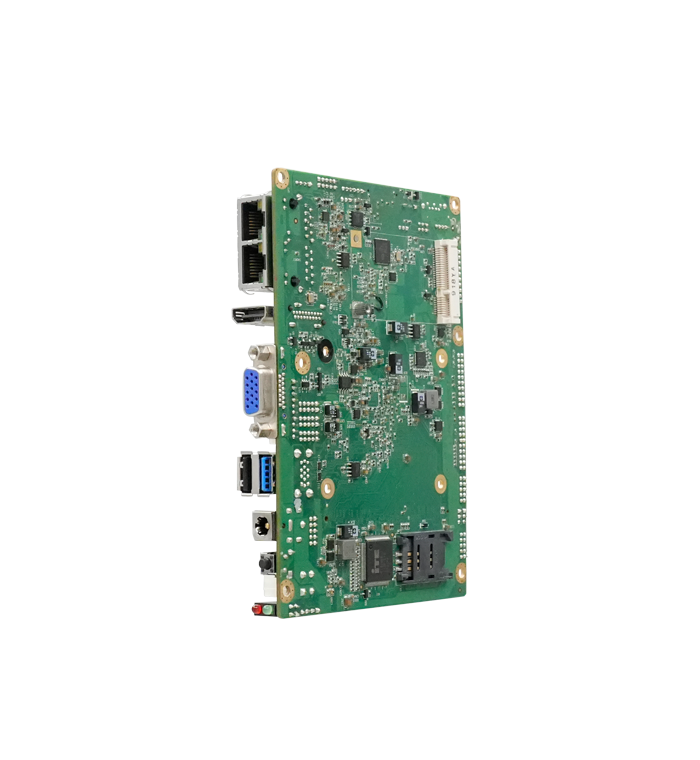

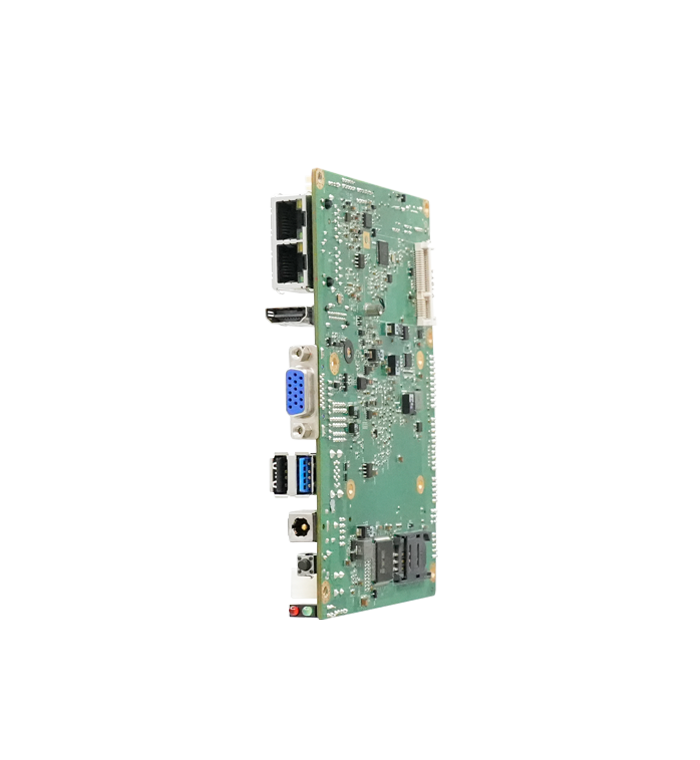

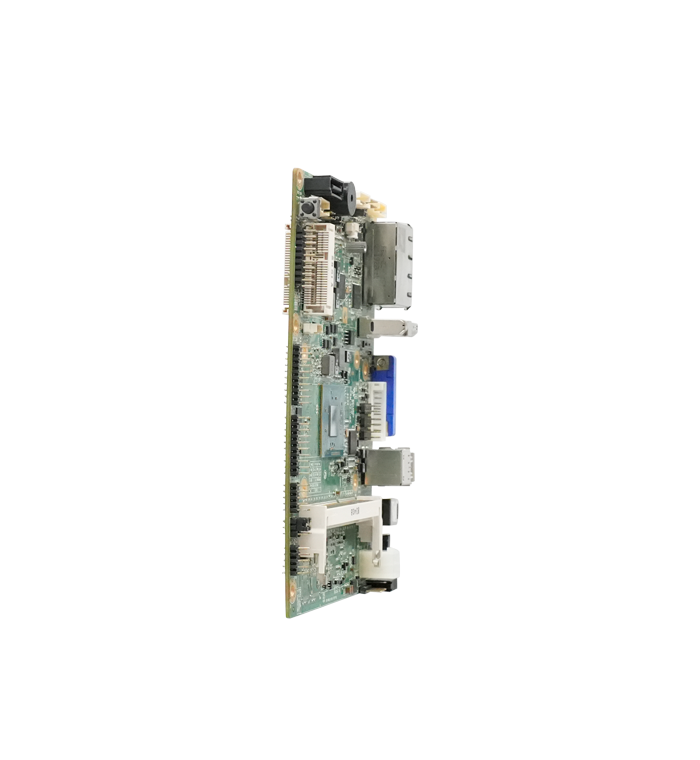

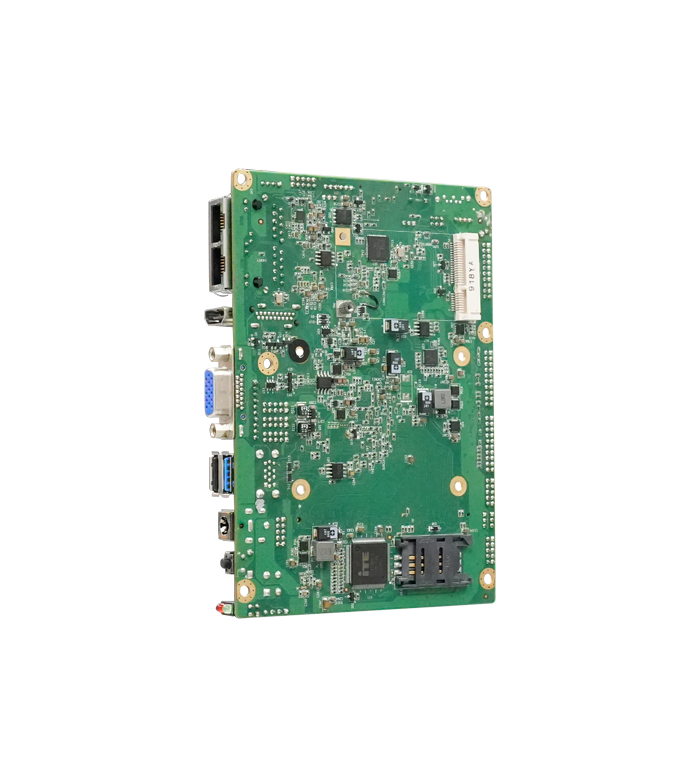

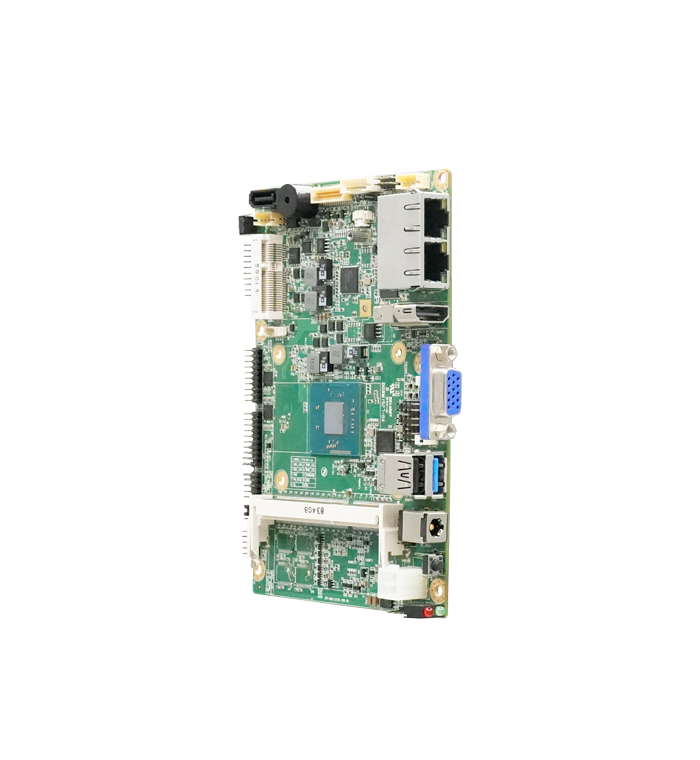

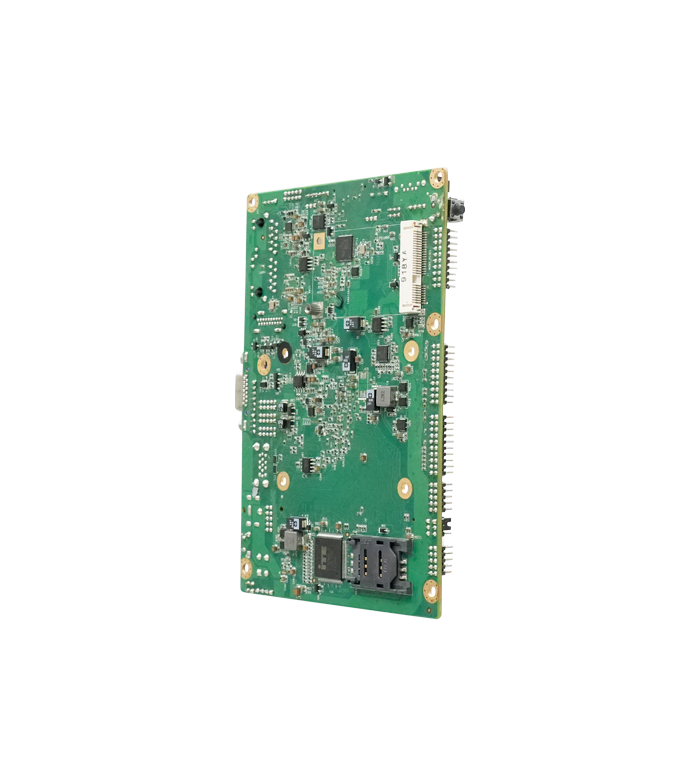

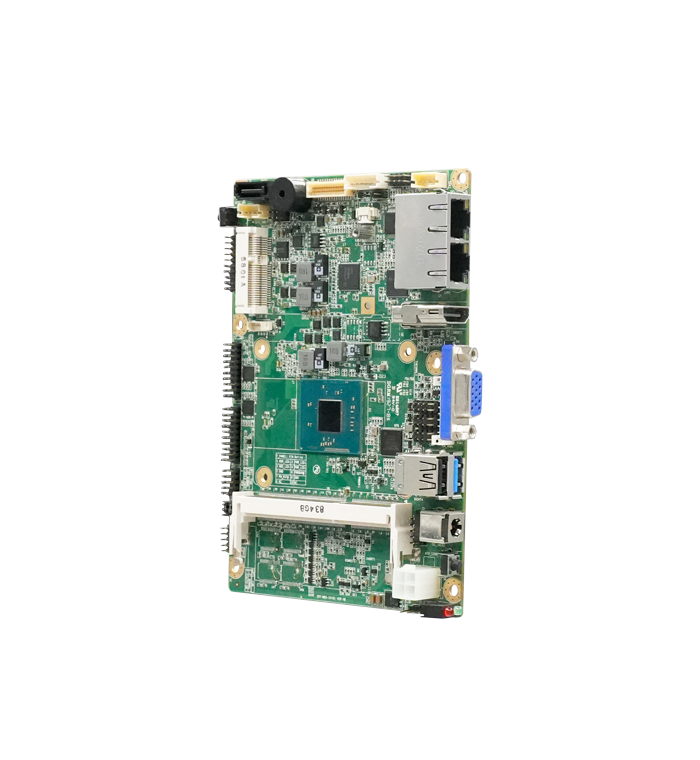

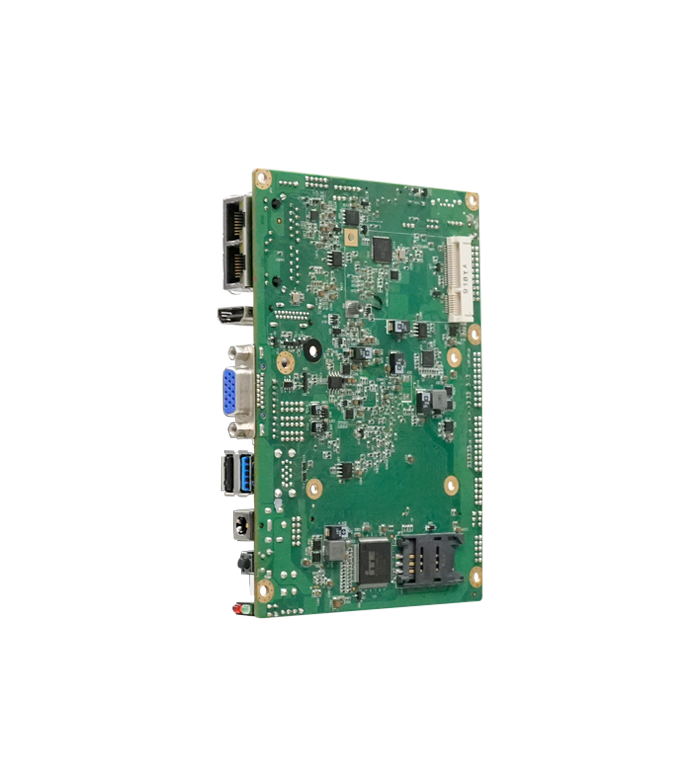

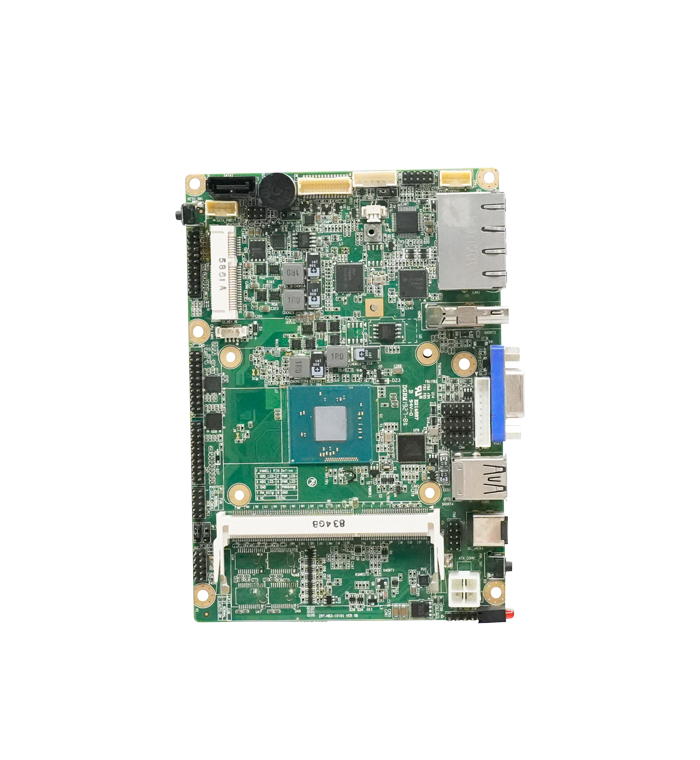

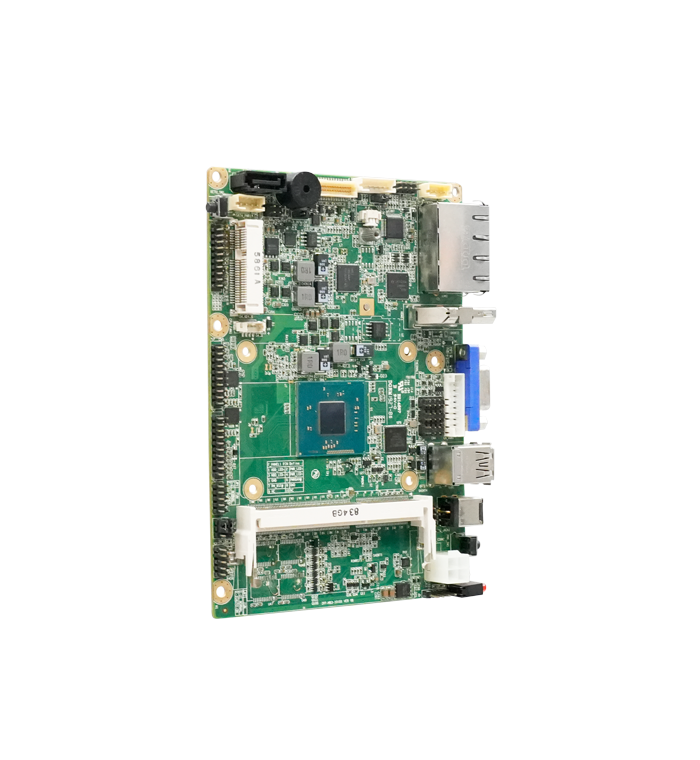

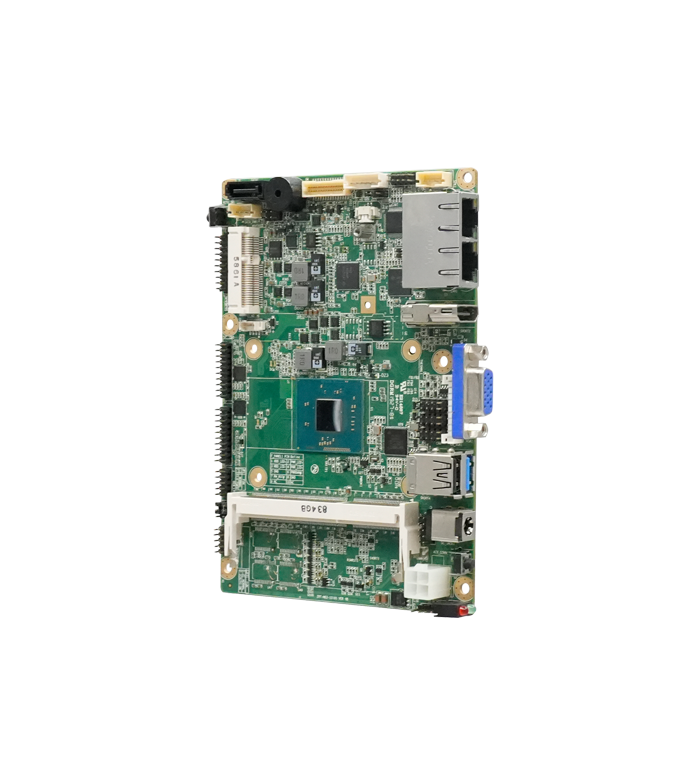

Drag and drop the mouse to view the image 360 °
Features
• Based on Intel Baytrail platform
• Support Celeron J1900 Socket FCBGA1170 processor
• Single-channel DDR3L memory design, maximum support 4GB
• Support HDMI+VGA+LVDS (or EDP)
• Standard 3.5 inch form factor
• Working temperature support -20~70°C
| Form Factor | Form Factor | 3.5" motherboard |
| Processor System | CPU | Intel Celeron J1900 |
| Core Number | ||
| Max. Speed | ||
| L3 Cache | ||
| TDP (W) | ||
| Chipset | ||
| BIOS | AMI 64MBit SPI | |
| Expansion Slot | PCIe x1 (Gen3) | |
| PCIe x4 (Gen3) | ||
| PCIe x16 (Gen3) | ||
| Memory | Technology | |
| Max. Capacity | 4GB | |
| Socket | 1 x SO-DIMM | |
| Graphics | Controller | Intel HD Graphics |
| HDMI | 1 | |
| eDP | 1 | |
| LVDS | option | |
| Display Port | ||
| Ethernet | Controller | Intel® Ethernet Controller I211-AT |
| Connector | ||
| SATA | Max Data Transfer Rate | |
| Q'ty | 1 x SATA3.0 SATA 6Gb/s | |
| Rear I/O | Display Port | 1 x HDMI1.4a 1 x VGA |
| HDMI | ||
| Ethernet | 2 x RJ45 10/100/1000M | |
| USB | 1 x USB3.0 1 x USB2.0 | |
| Audio | ||
| Seria | ||
| Internal Connector | USB 3.0 | |
| USB 2.0 | 6 x USB2.0 | |
| SATA 3.0 | 1 x SATA3.0 SATA 6Gb/s | |
| Extended Display Port (eDP)/LVDS | 1 x eDP or LVDS | |
| M.2 (M key) | ||
| M.2 (E key) | ||
| GPIO | 1 x GPIO 8bit | |
| Power Requirements | Power Type | DC In(φ5.5) |
| Power input Voltage | 12V, Max 5A | |
| Power Consumption | 60W | |
| Environment | Operating Temperature | -20°C - 70°C |
| Storage Temperature | -40°C - 85°C | |
| Physica | Dimensions | 146*101 mm |
| OS | Microsoft | |
| Linux |
