Graphics Processing Unit

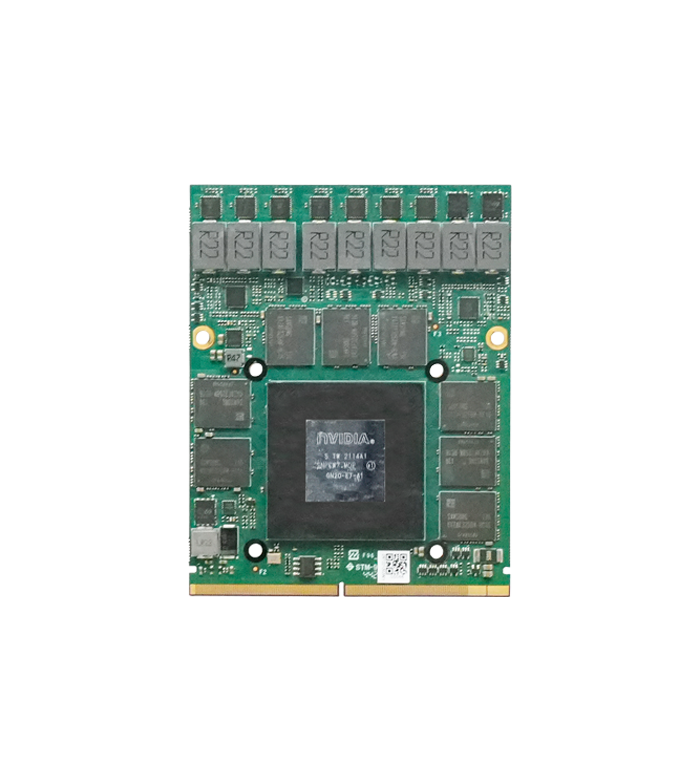

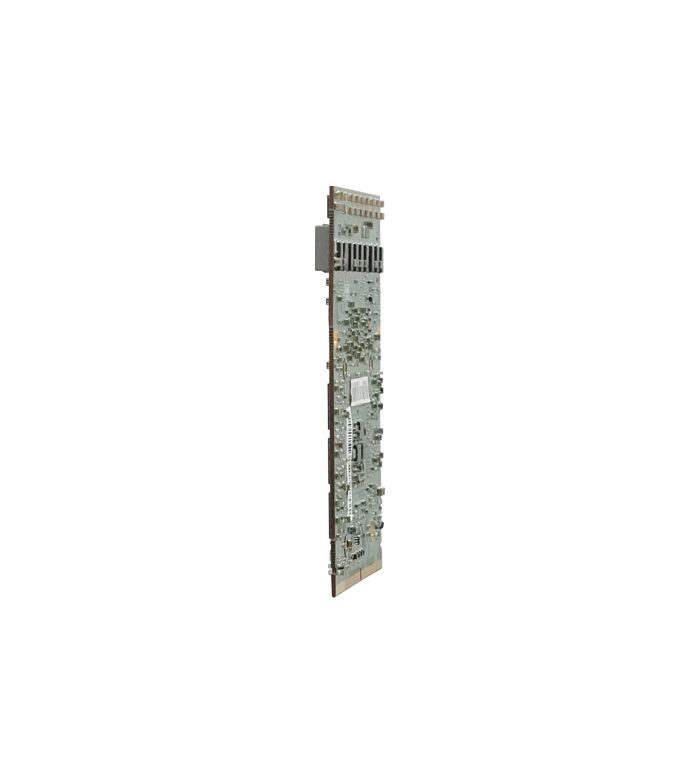

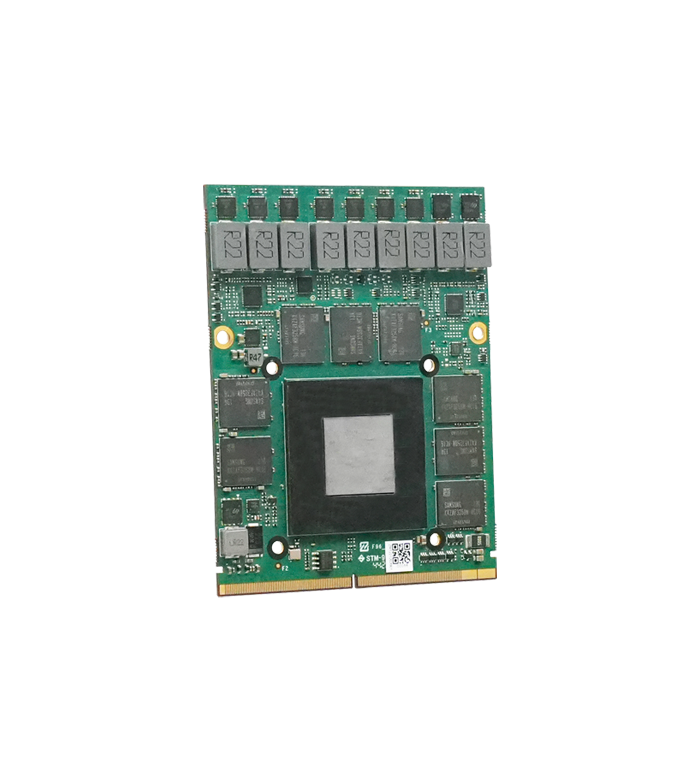

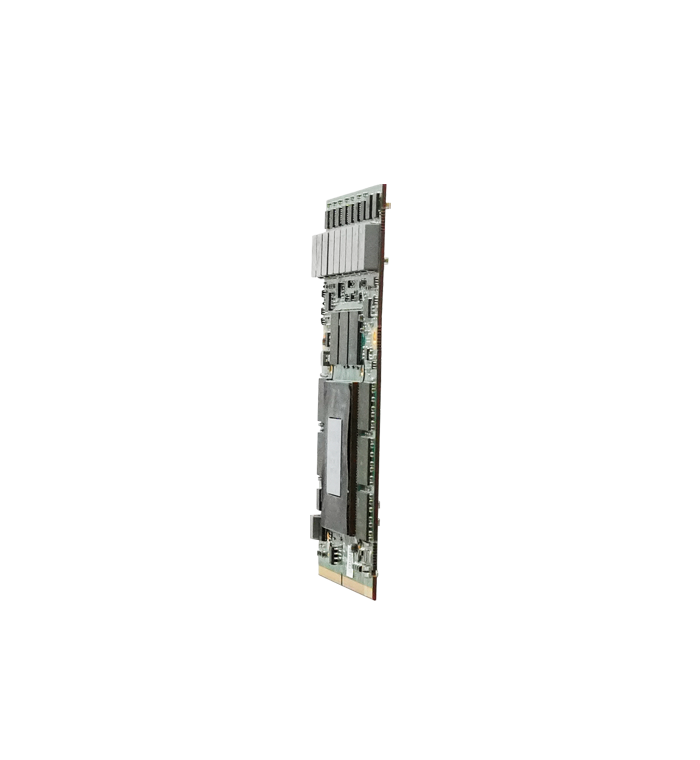

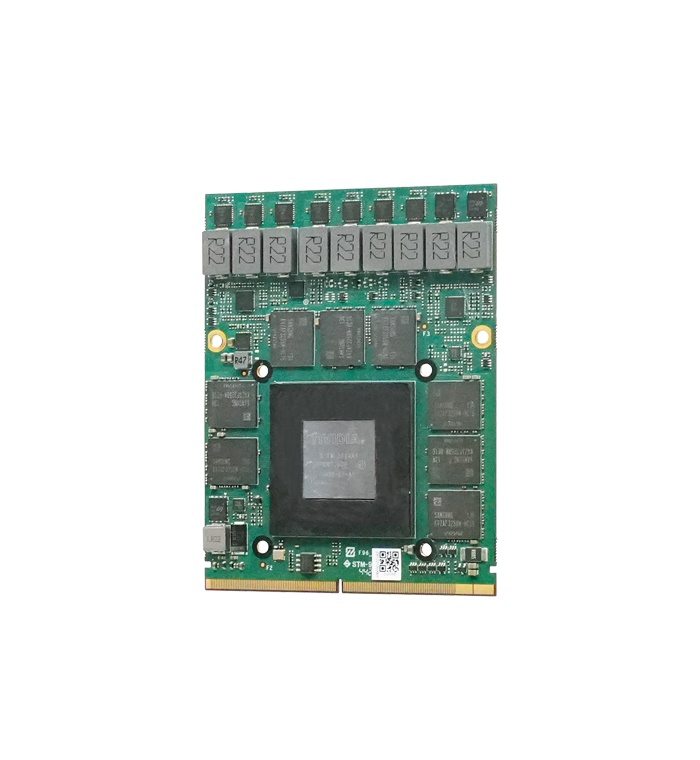

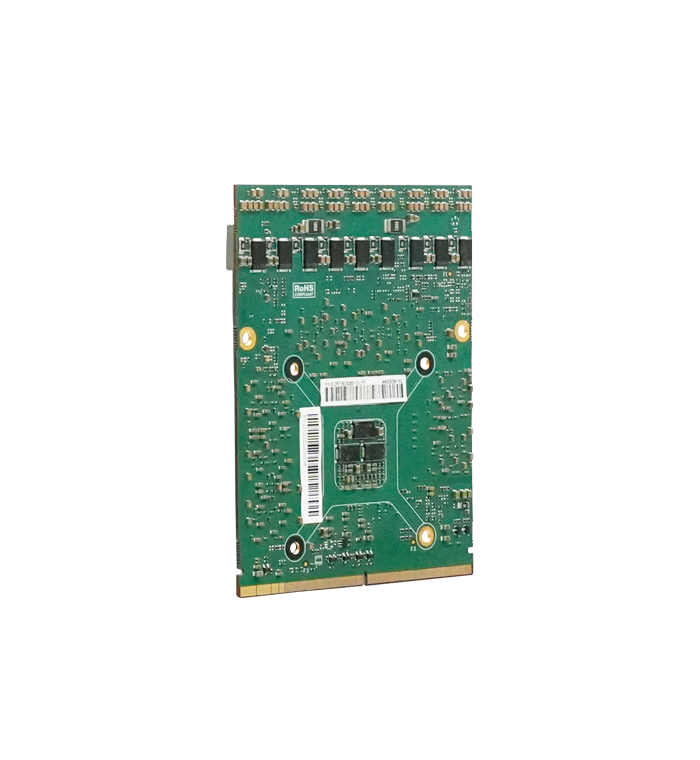

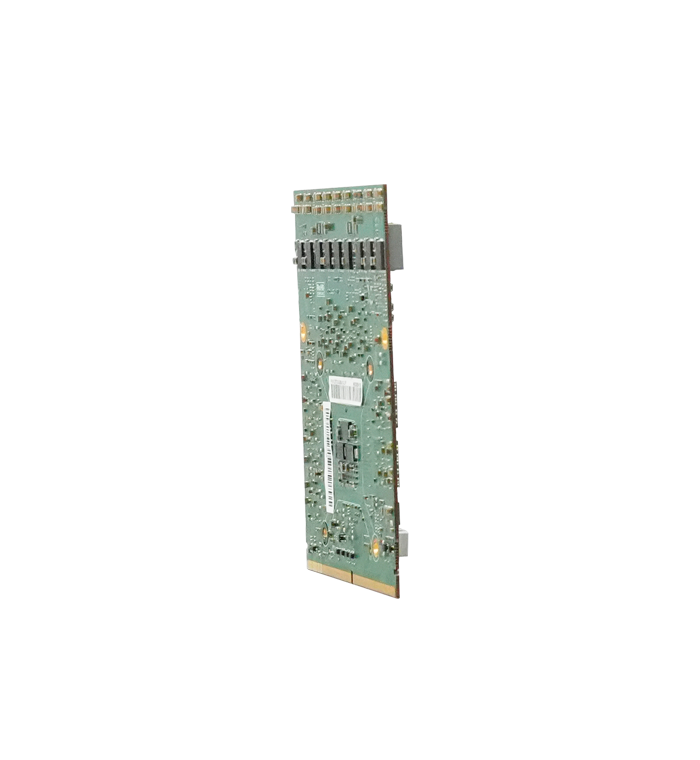

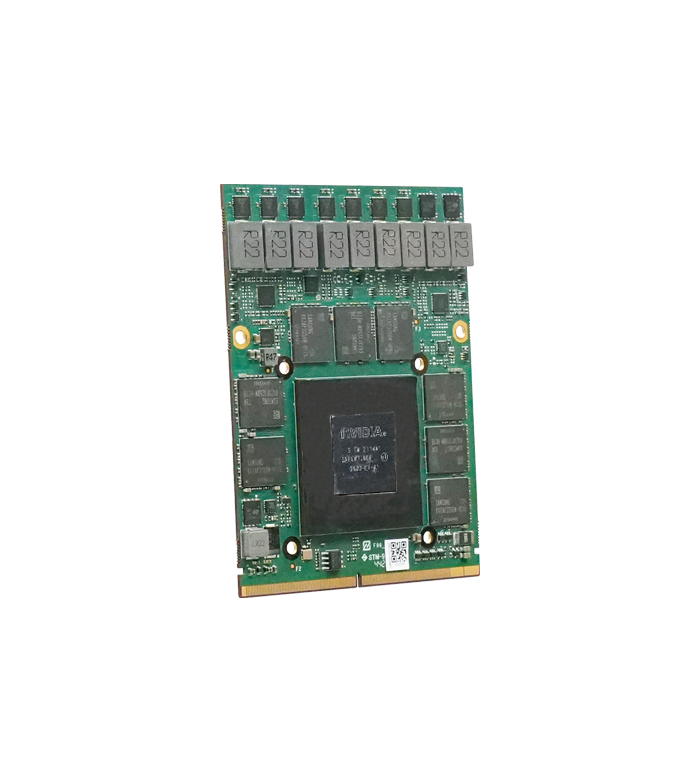

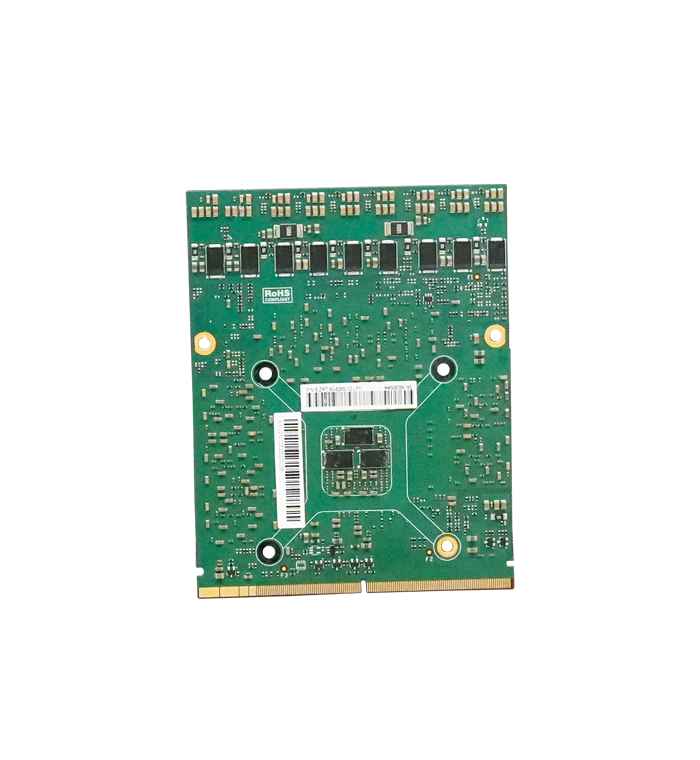

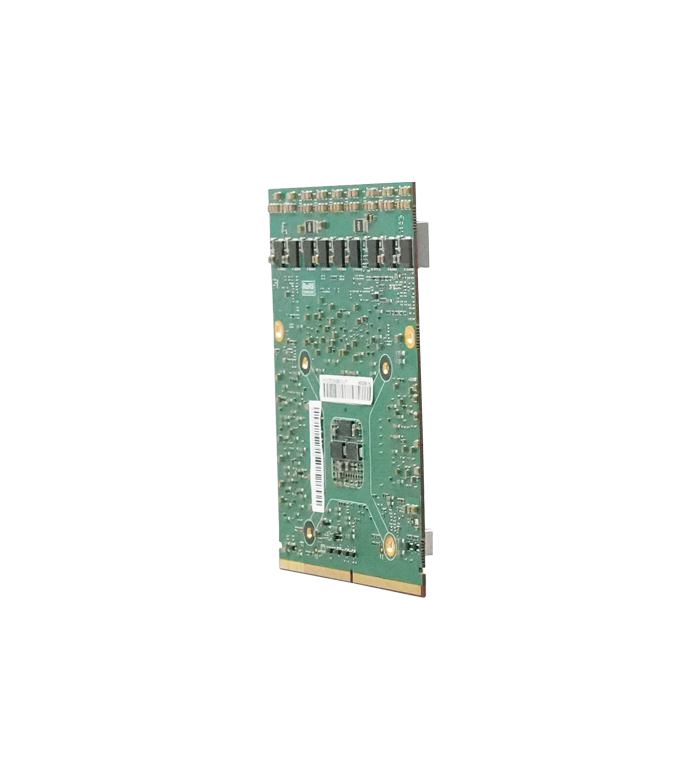

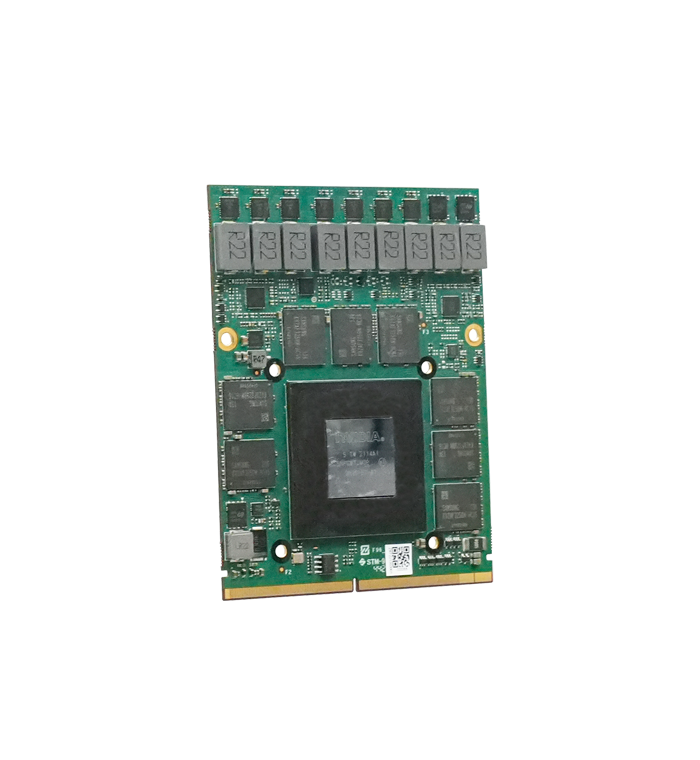

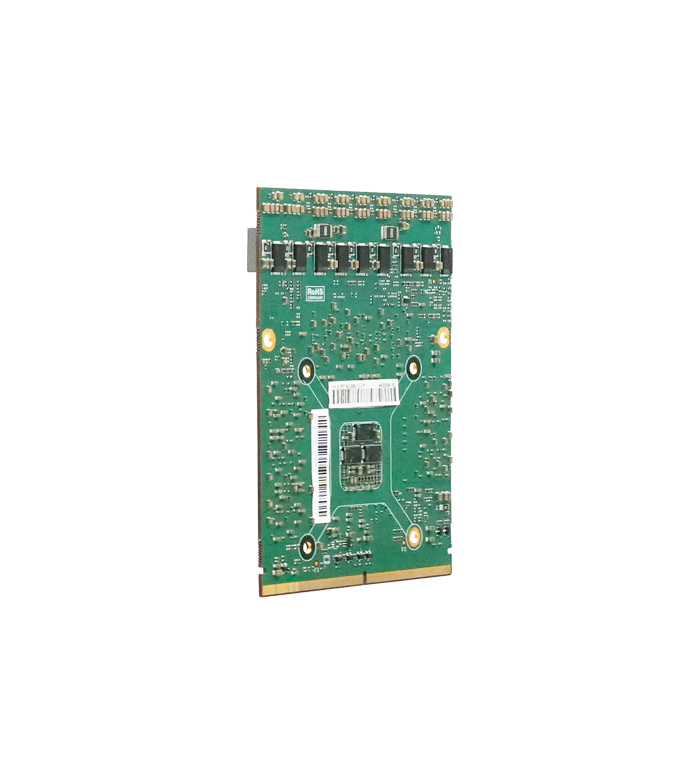

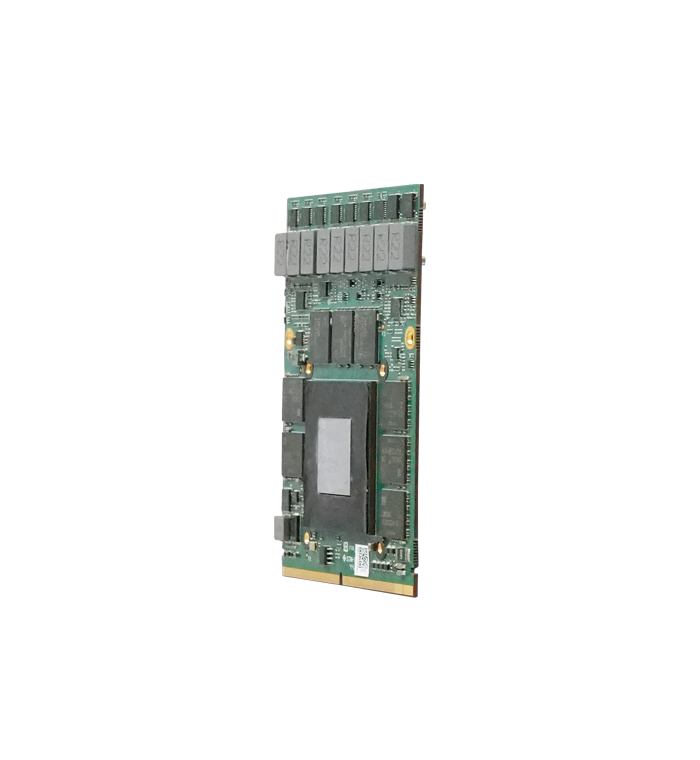

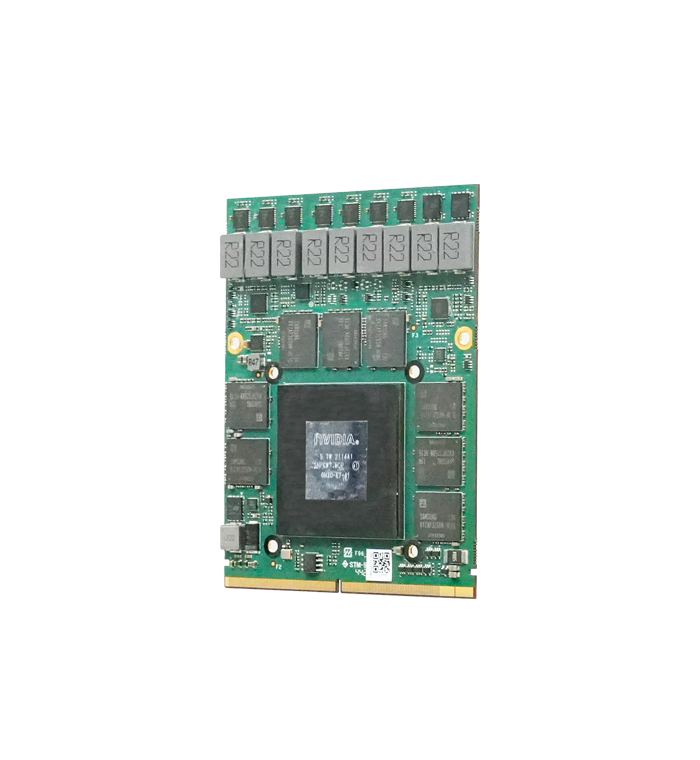

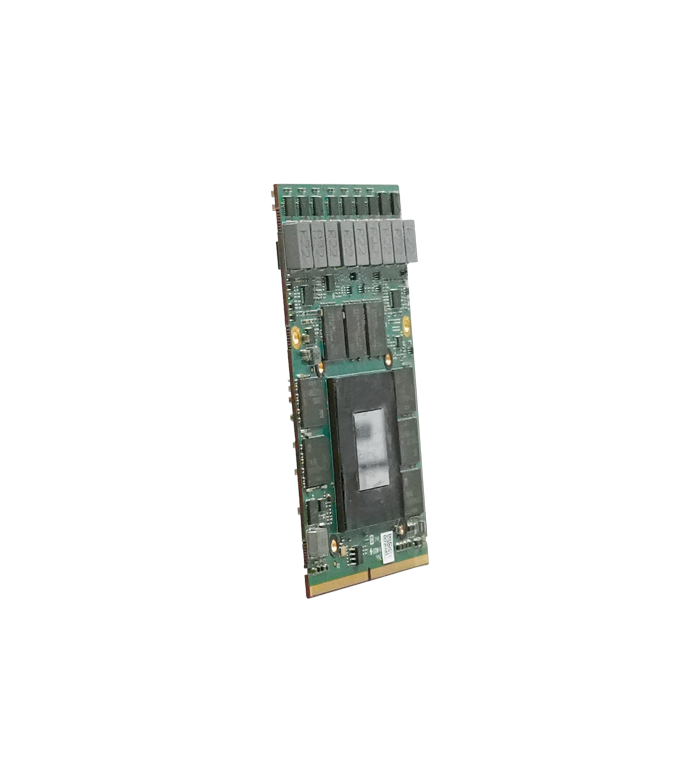

NVIDIA GeForce RTX3080 Mobility

Bus Type

MXM3 .0 / up to PCI Express 4.0 x16

Graphics Clock

1110MHz / 1545MHz (Boost)

Memory Size

16G 256bit GDDR6

Memory Clock

1750MHz (14.0 Gbps)

Memory Bandwidth

448.0GB/s

Display Features

DP_A: Display Port1.4++

DP_B: Display Port1.4++

DP_C: HDMHDMI2.1

DP_D: Display Port1.4++

Max Resolution

DP:7680x4320@120Hz

HDMI: 7680x4320@60Hz

Number of Output Channel

4

Board Power

135W (Option 110W)

Board Dimensions

MXM Graphics Module Version 3.1 Type B (105x82mm)

Operation System

Windows 11/10 64bit、Linux

VIN Range

DC 12~19V, 3.3V & 5V;   +/-5%

Operating Temperature

0~45°C

Storage Temperature

-20~75°C

Operating Humidity

0~95% (non-condensing)

Storage Humidity

10~90%

Shader Processing Units

6144

Tensor Core

192

RT Core

48

TMUs

192

ROPs

96

SM Count

48

L1 Cache

128KB (per SM)

L2 Cache

4MB

Pixel Rate

148.3GPixel/s

Texture Rate

296.6GTexel/s

Single Precision FLOPS(AIDA64)

17525GFLOPS

Double Precision FLOPS(AIDA64)

329,9GFLOPS

DirectX

12 Ultimate (12_2)

OpenGL

4.6

OpenCL

3.0

Vulkan

1.3

Shader Model

6.7

CUDA

8.6

Video Playback

H.265, VC1, MPEG2 1080P

2x1(3840x1080@60Hz)

1x2(1920x2160@60Hz)

3x1(5760x1080@60Hz)

1x3(1920x3240@60Hz)

4x1(7680x1080@60Hz)

2x2(3840x2160@60Hz)

2x1(2160x1920@60Hz)

1x2(1080x3840@60Hz)

3x1(3240x1920@60Hz)

1x3(1080x5760@60Hz)

1x4(1080x7680@60Hz)

2x2(2160x3840@60Hz)
