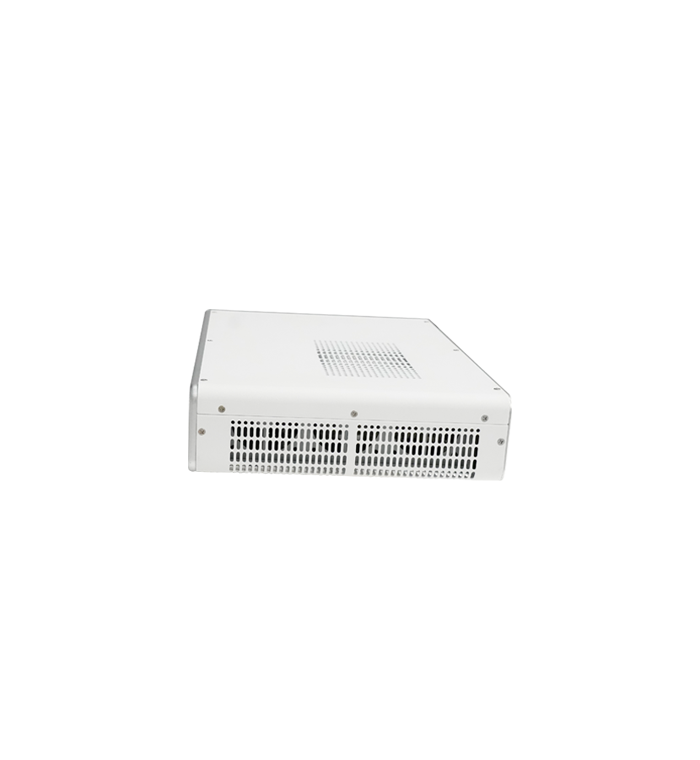

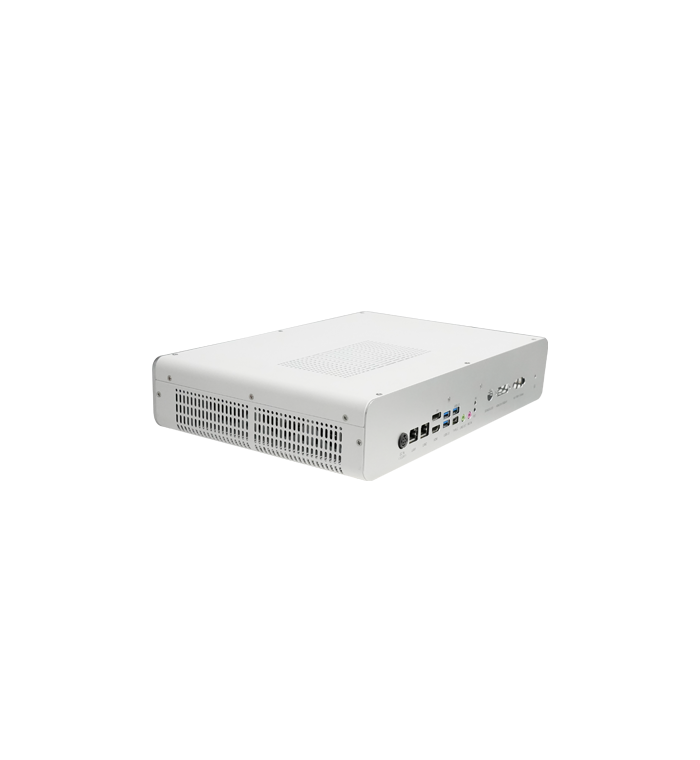

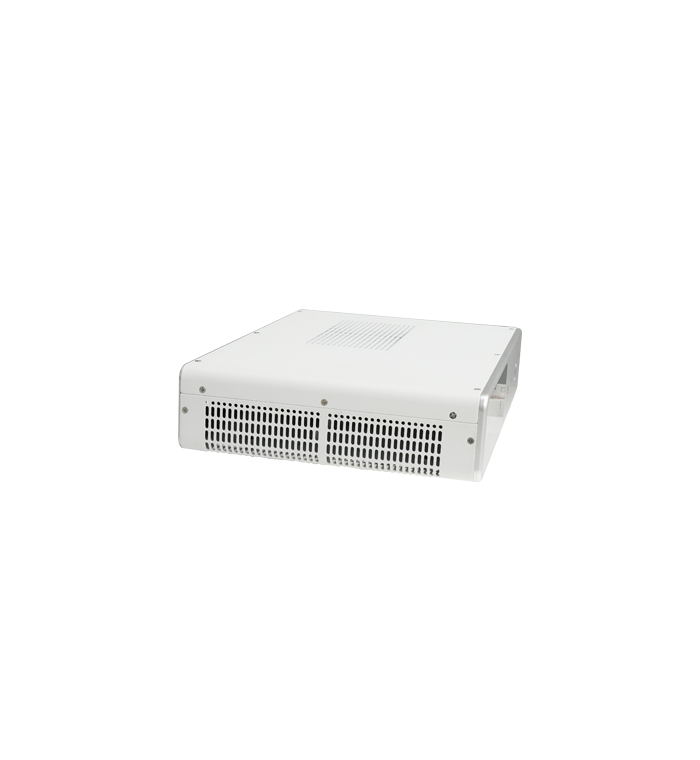

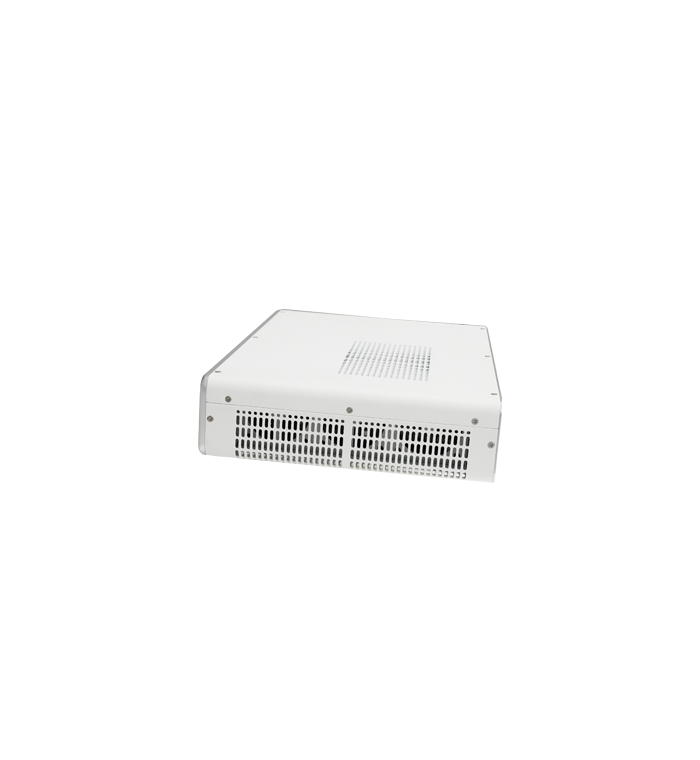

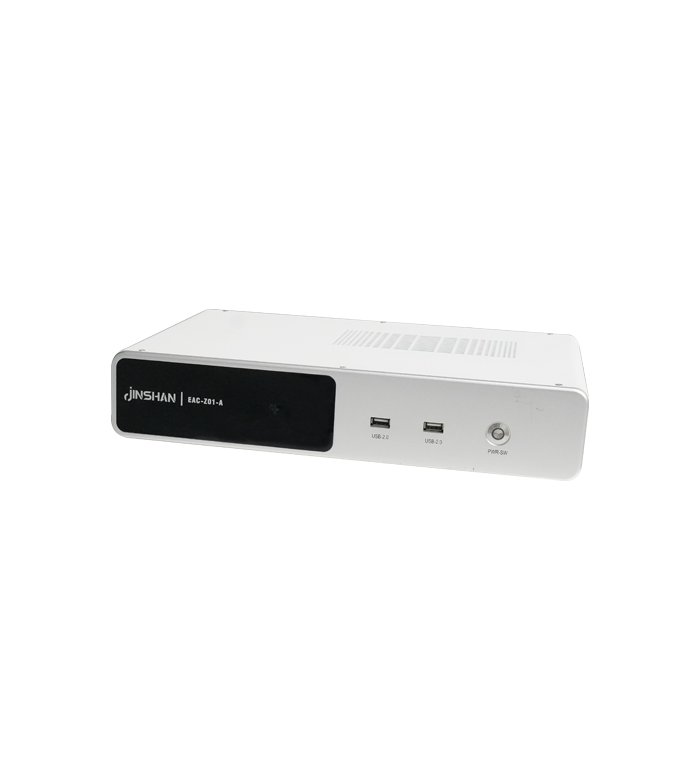

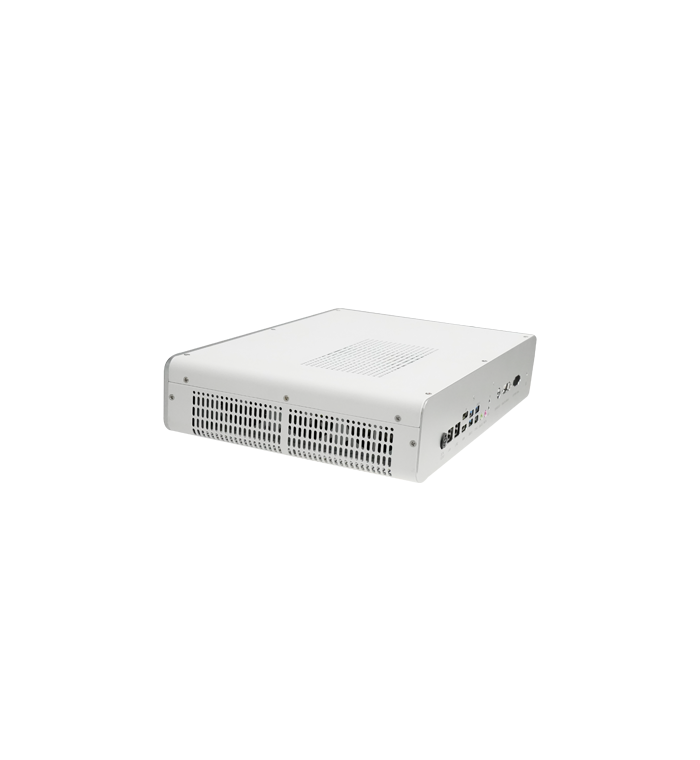

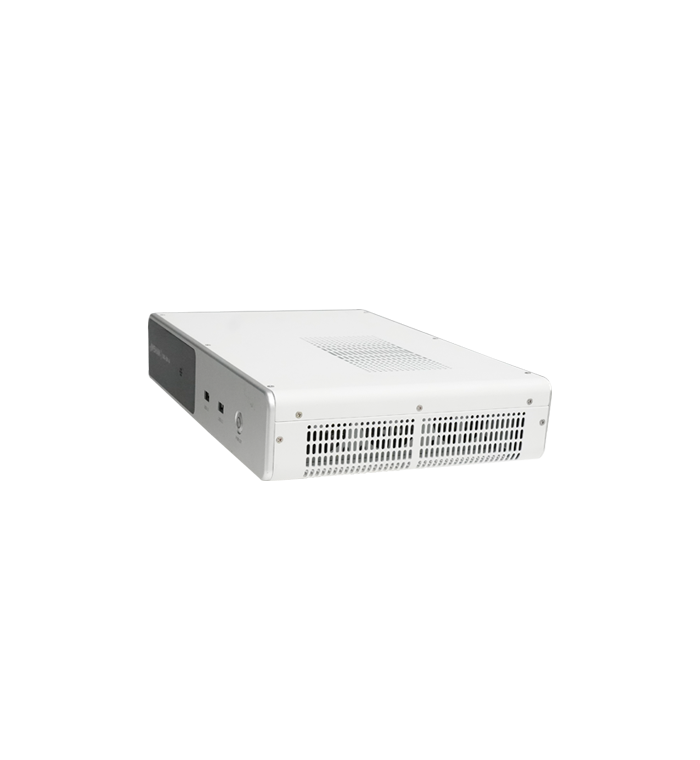

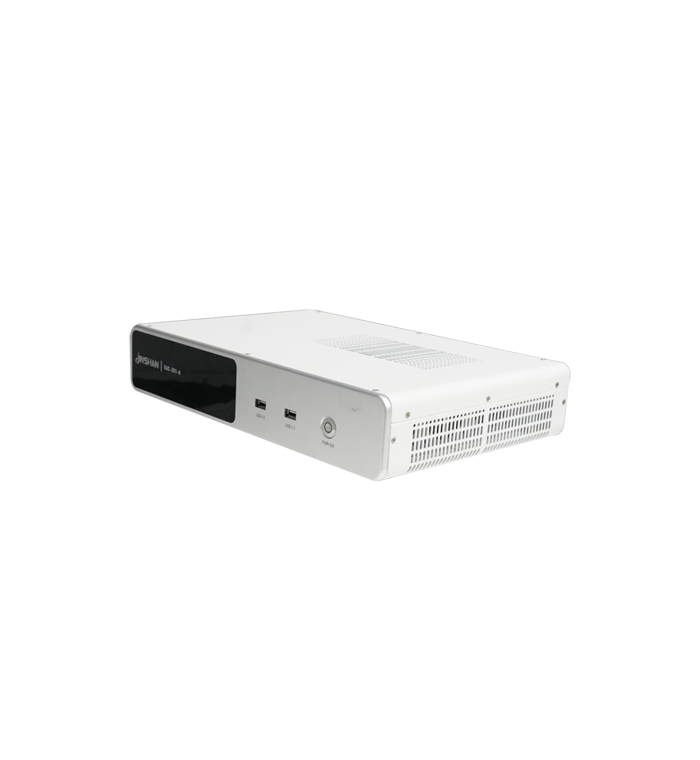

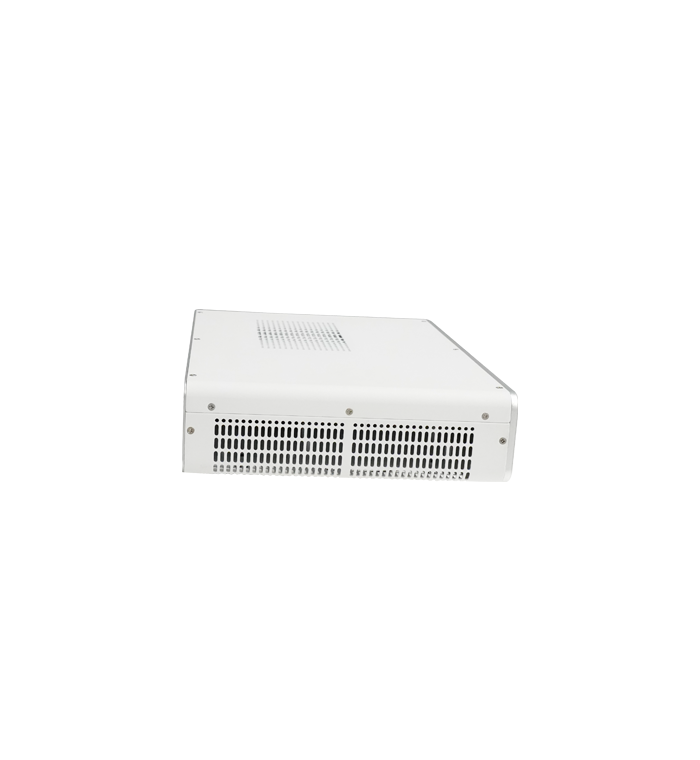

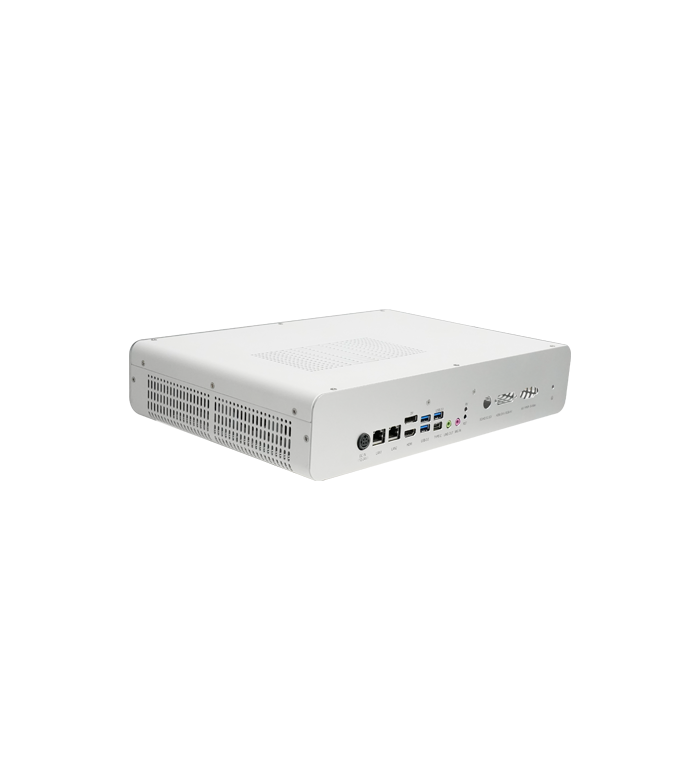

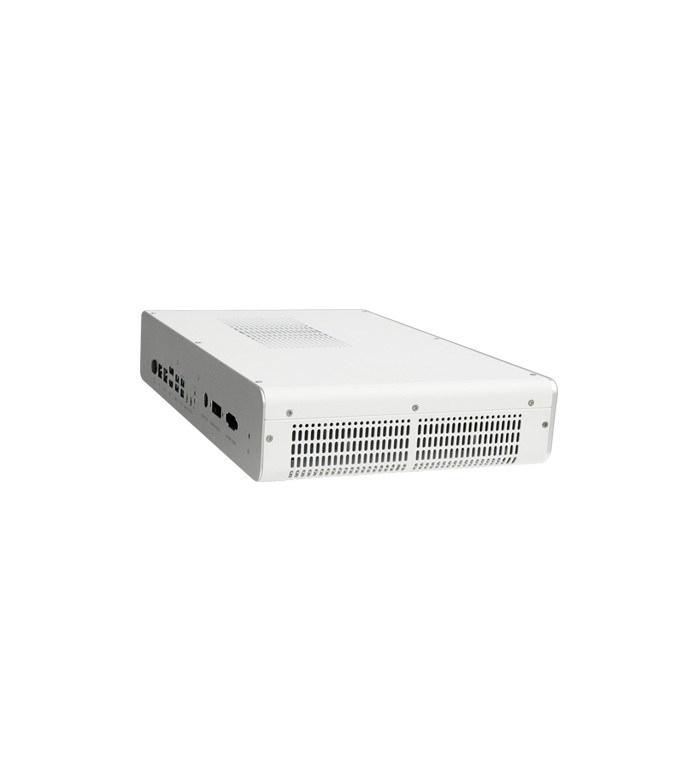

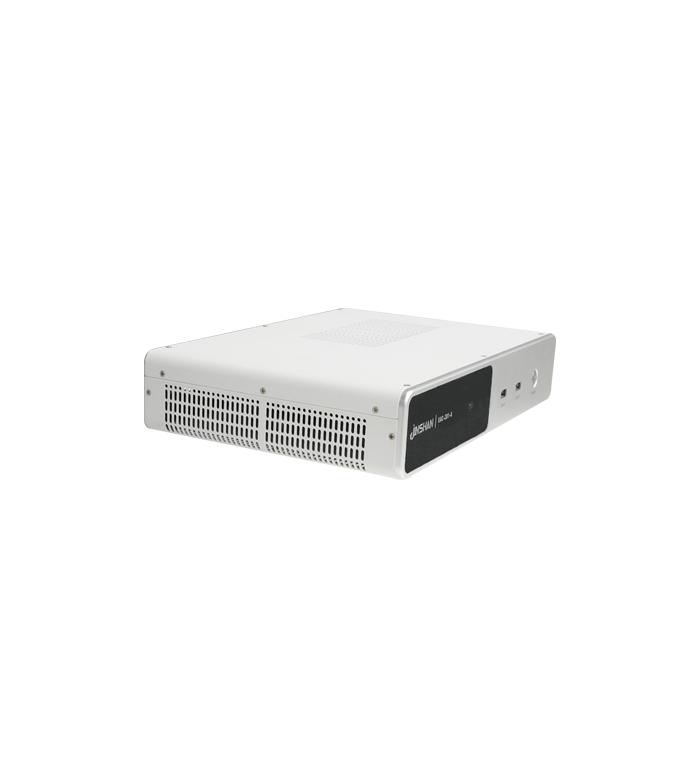

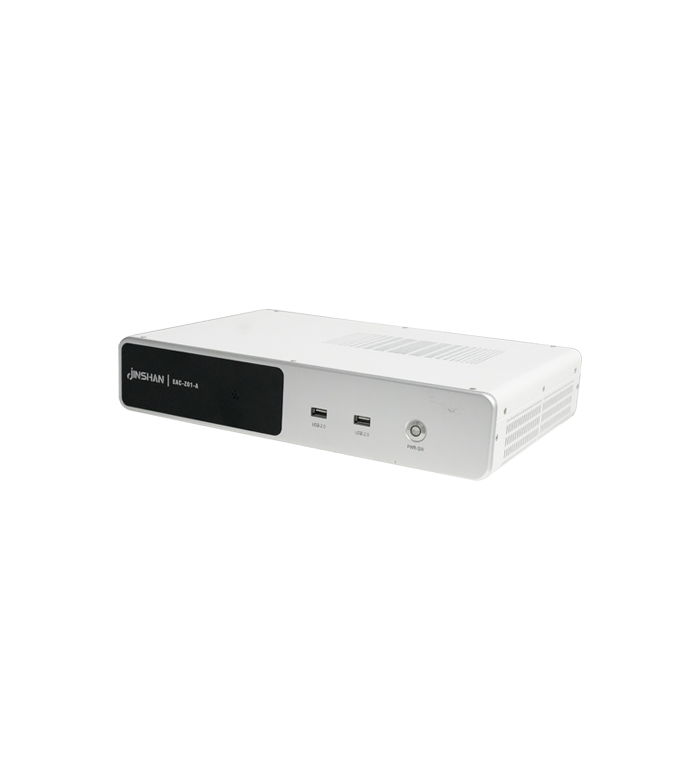

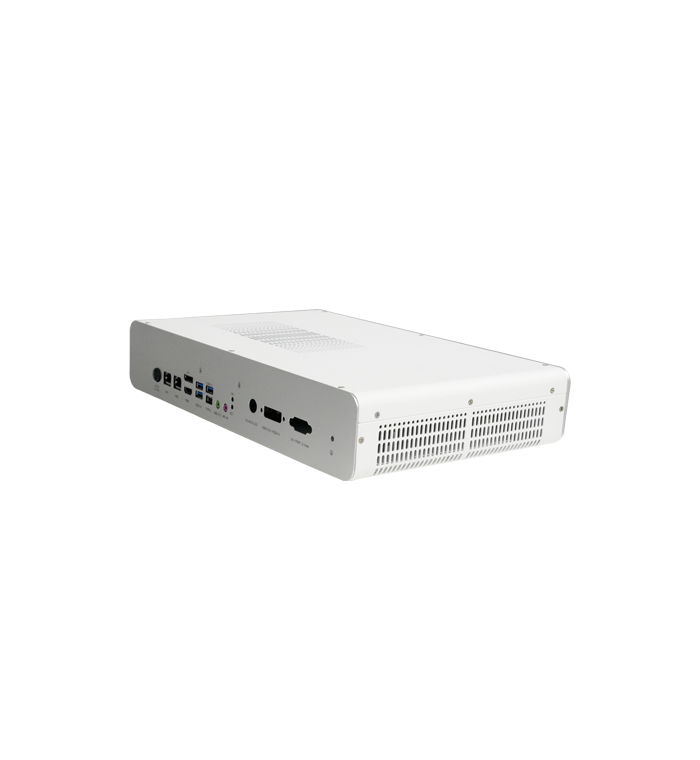

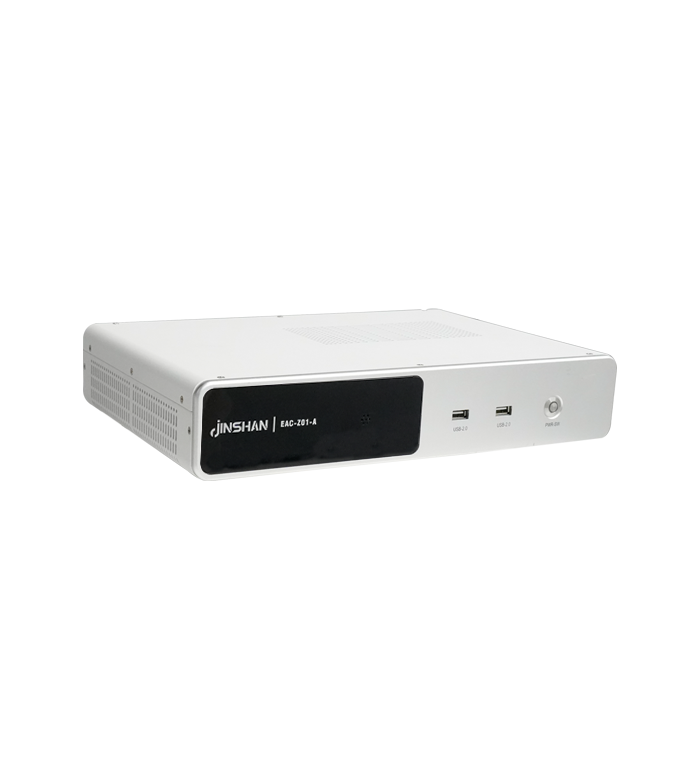

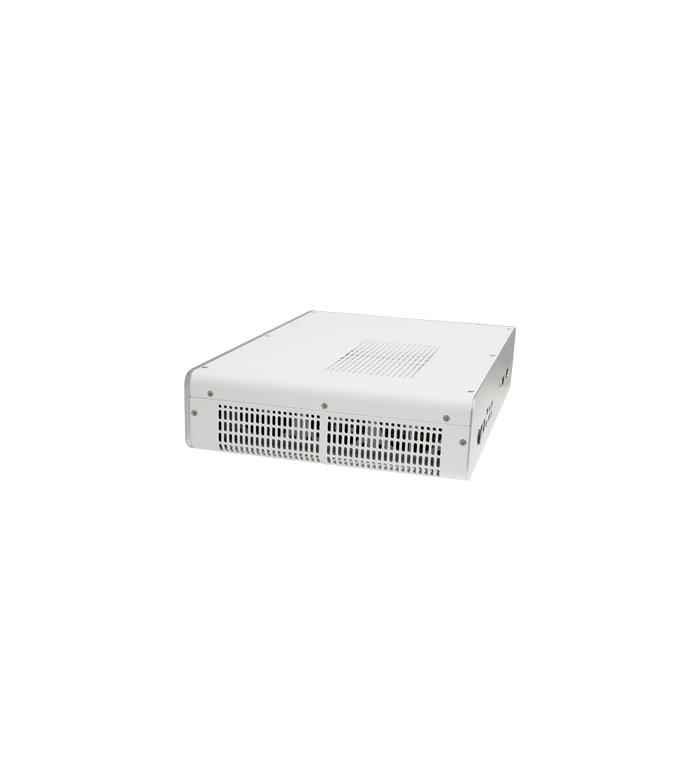

鼠标拖拽图片360°查看

内窥镜专用·医疗AI整机 EAC-Z01-A00
Intel Coff Lake-H 系列处理器内窥镜主机

·适用于内窥镜、造影仪、手术摄像机、超声,手术室内影像等医疗设备的图像采集设备

·支持 1080P/60fpS, 双 HDMI IN 视频采集,HDMI 1080P/60fpS 环出

·可以将静止图像和视频,保存到内部硬盘,或外部 U 盘,还可以记录到 NFS 网络服务器

·使用 HDD 或 NFS,可以连续录制高质量的高清视频长达两周或更长时间

·支持 MXM 多款独立显卡更换,DP+HDMI 高清独显输出

·板内支持 LVDS+DP/HDMI 独显、EDP 集显输出接口

·支持 Intel Coff Lake-H 系列高性能处理器

·双通道 DDR4 内存设计,最大支持 64GB

·带一键还原、一键熄屏功能

·整机尺寸:长 365mm*宽 245mm×高 77.5mm


联系我们



Model

EAC-Z01-A00

Processor

CPU   collections

Intel Coff   Lake On Board CPU LGA1440

Chipset

Intel PCH   QM370

CPU

I5-8400H

I7-8850H

I7-9850H

Basic   Frequency

2.50GHz

2.60GHz

2.60GHz

Turbo Boost Frequency

4.2GHz

4.30GHz

4.60GHz

Core

4

6

6

Cache

8M

9M

12M

CPU TDP

45W

45W

45W

BIOS

AMI 128Mb   SPI FLASH

Memory

Capacity

Max 64GB

Technology

DDR4   2133/2400/2666MHz

Socket

2 x SO-DIMM

Expansion

SIM

1 x SIM

Capture Card

Matrox X Capture 300 1 x SDI

1 x DVI

1 x S-Video

Storage

SATA

1 x   SATA3.0(7 Pins)



M.2

1 x M.2   Key-M for PCIe/SATA,

1 x M.2   Key-B for SATA & 4G/5G,

1 x M.2   Key-E(2230) for WIFI

Display



Slot

1 x MXM3.1 by PCI-E x16   support Type A/B

DP A: Display Port to HDMI

DP B: Display Port

Multiple Display

2 Ports

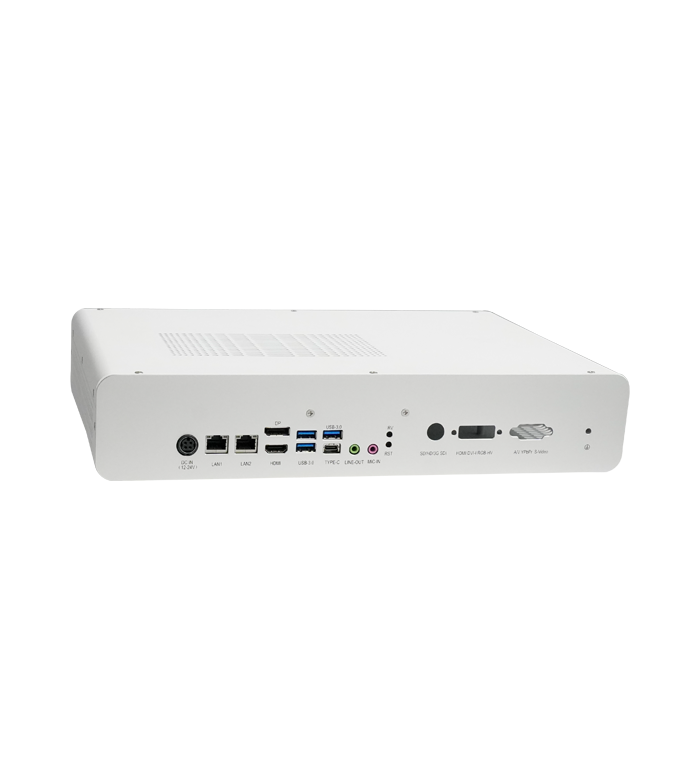

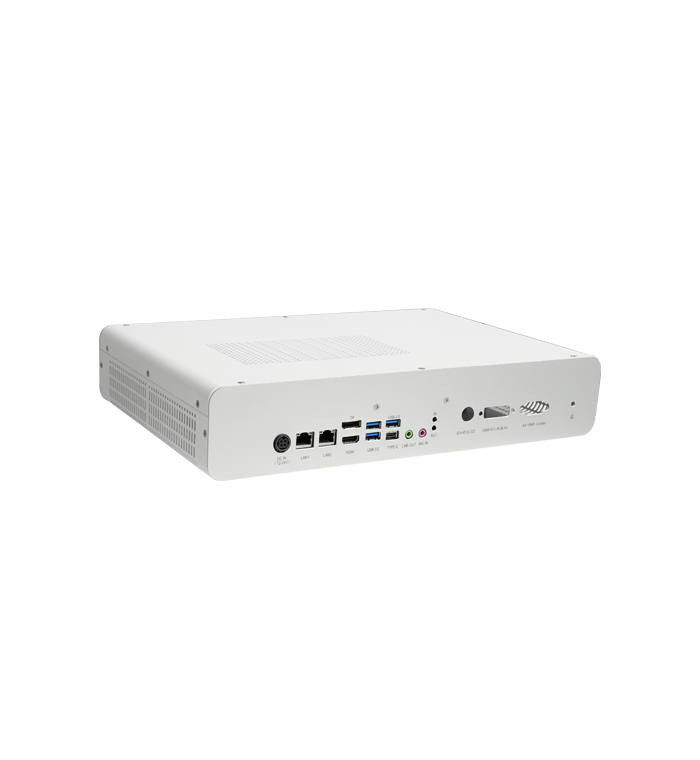

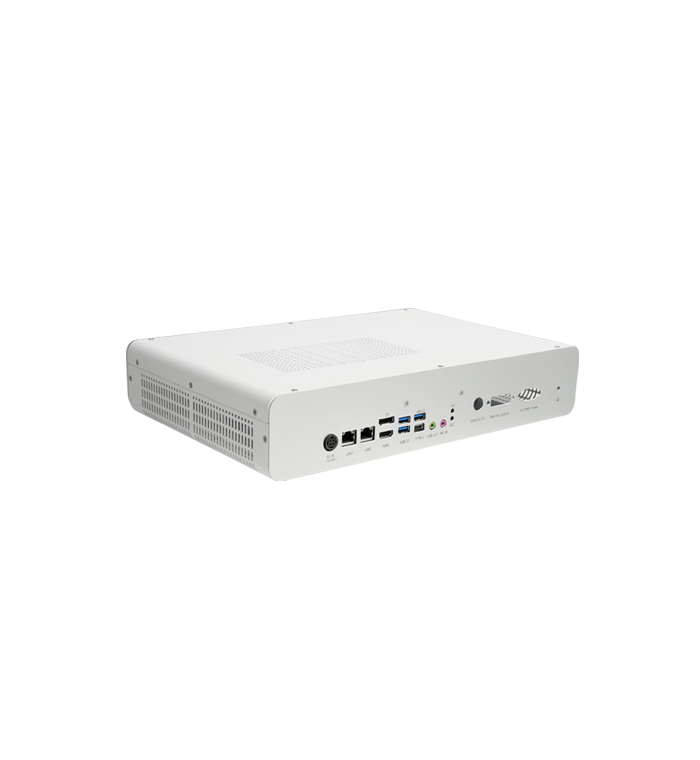

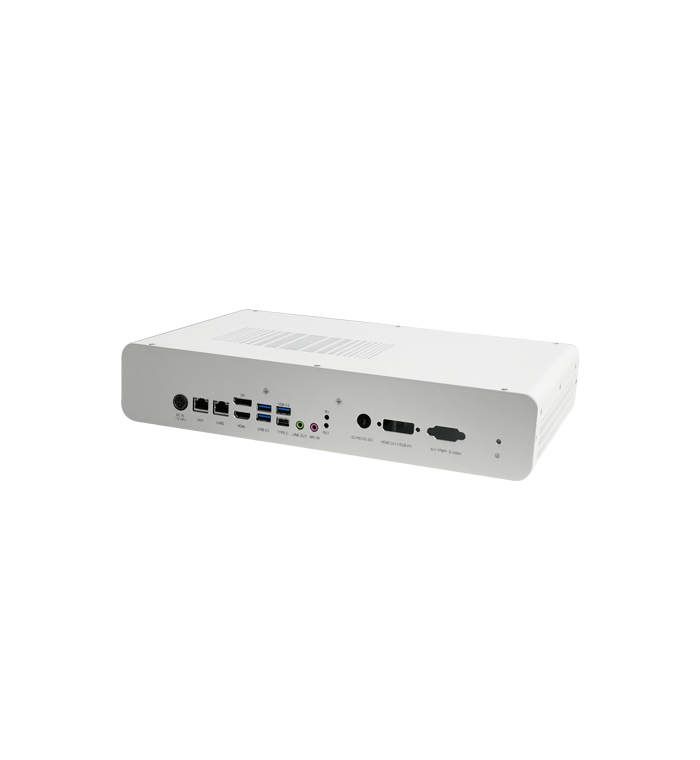

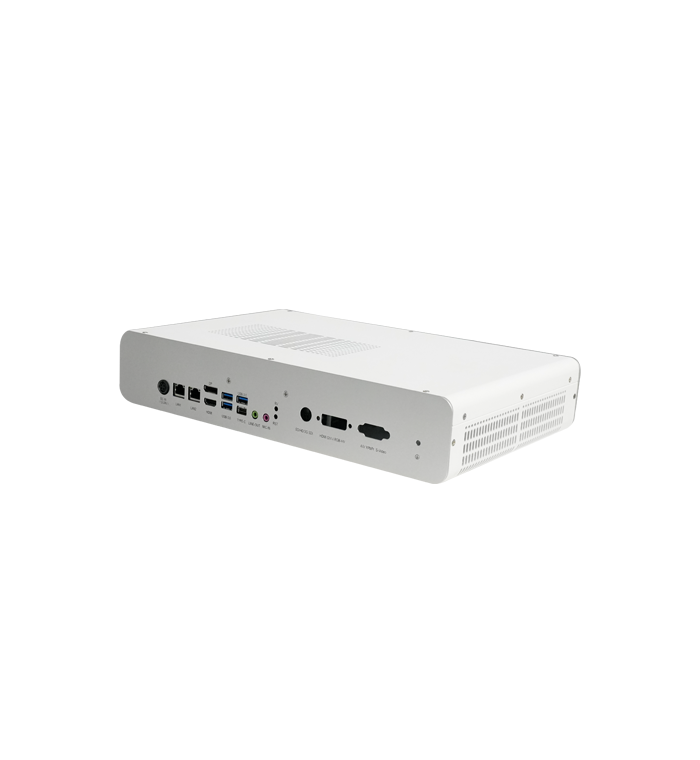

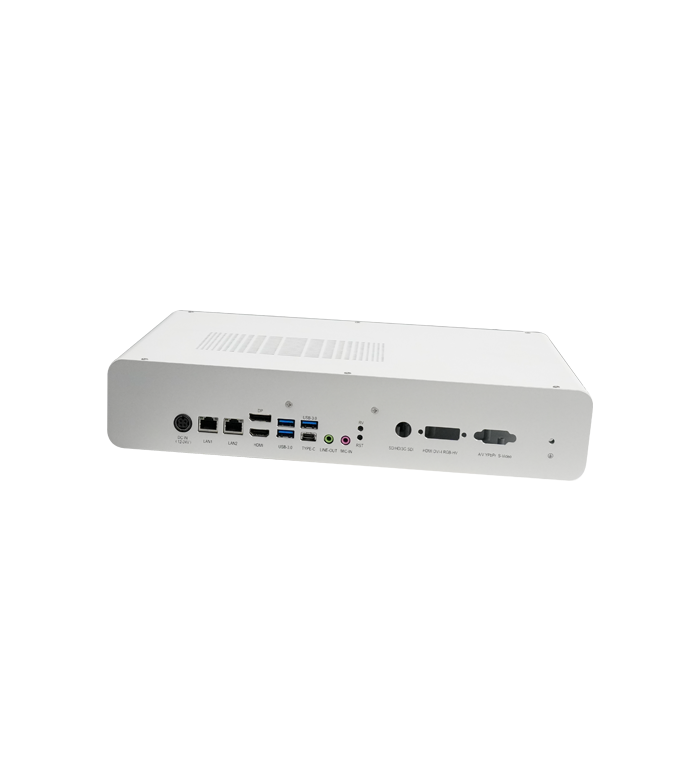

Rear I/O

1 x HDMI   (From GPU DP_A DP to HDMI)

1 x DP   (From GPU DP_B)

Max   Resolution

HDMI2.0:4096*2160@60Hz

DP:7680*4096@60Hz

Graphics   Card (recommended)

F79 GTX   1660S

F96 RTX   3060M

USB

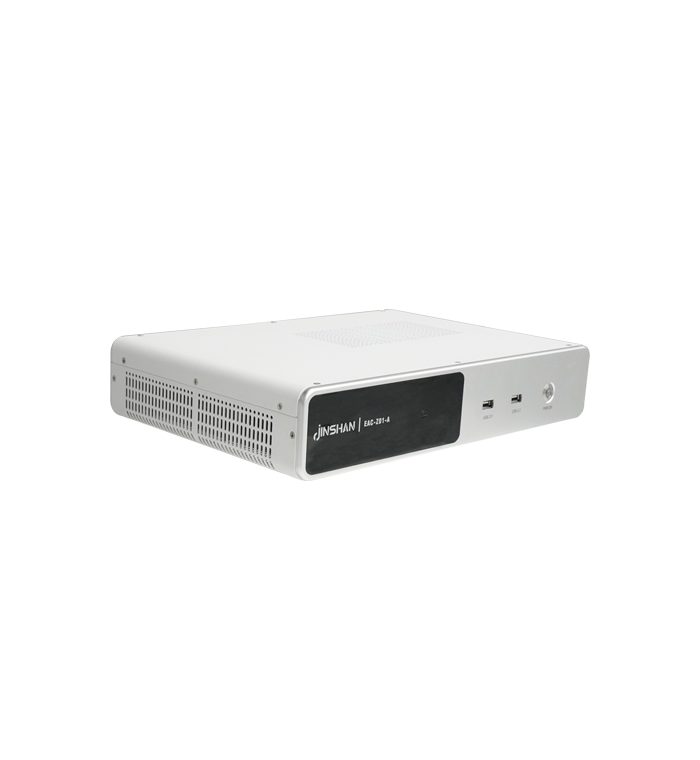

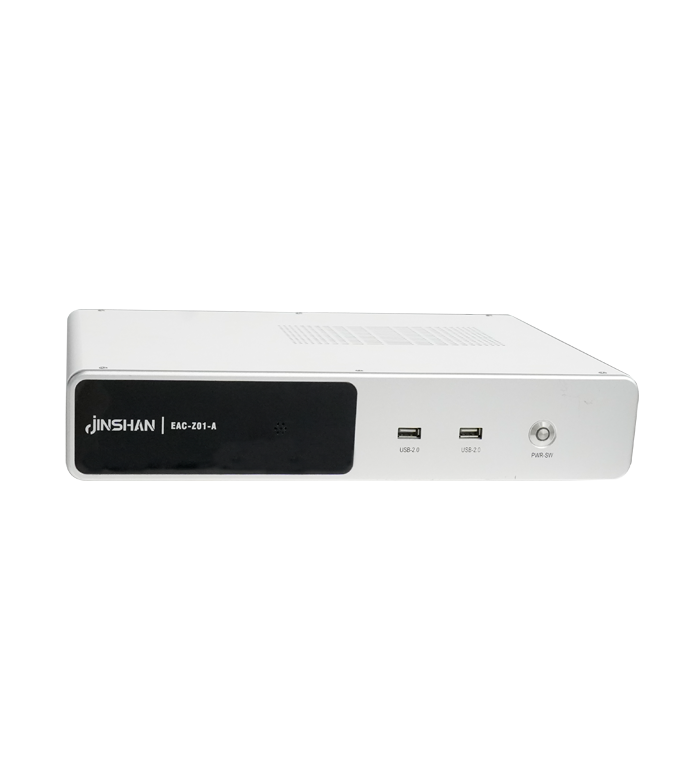

Front I/O

2 x   USB2.0(From Header Pin 1x2.54mm_2*5Pin)

Rear I/O

3 x USB3.0

1 x Type-C

Function

Support   wake up from S3/S4

Ethernet

Chipset

Integrated   10/100/1000M Adaption

(Intel® Ethernet Controller I211-AT)

Rear I/O

2 x RJ45   10/100/1000M

Function

Support   wake up and PXE

Audio

Chipset

Integrated   High Definition Audio Stereo (ALC897)

Rear I/O

1 x Audio   out+1 x MIC in

Header Pin

1 x Line   Out

1 x MIC In

Other

Operating   System

Linux,Windows 7 / 10


Button

1 x 1 x   Power Button 1 x RV Button

1 x Reset   Button


LPC

1 x LPC

Power

Power Input

DC In(4Pin φ10)

Adapter

19.0V 250~300W

Consumption

Max 300W

Physical

Dimension

365*245*77.5mm

Weight

3.934kg

Color

White

Environmental

Operation   Temperature

-20°C~70°C

Operation   Humidity

0%-95%(non-condensing)

Storage   Temperature

-40°C~85°C

Storage   Humidity

10%~90%

Random   Operating

0.5g rms/5~500Hz







EAC-Z01-A size.jpg
