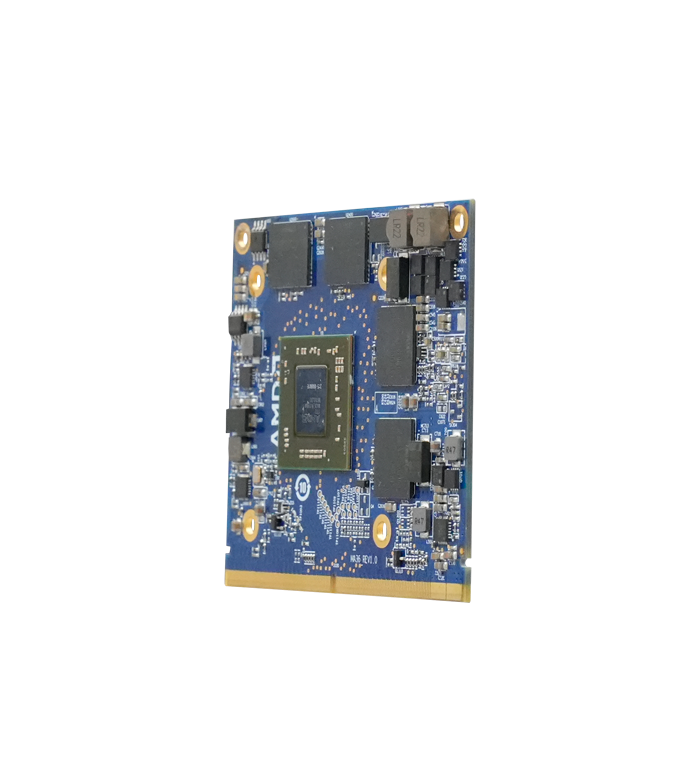

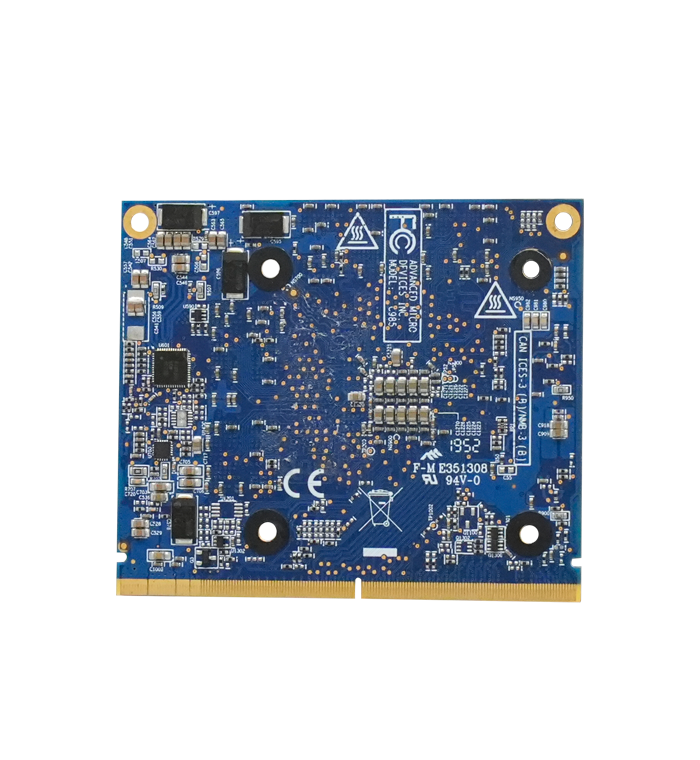

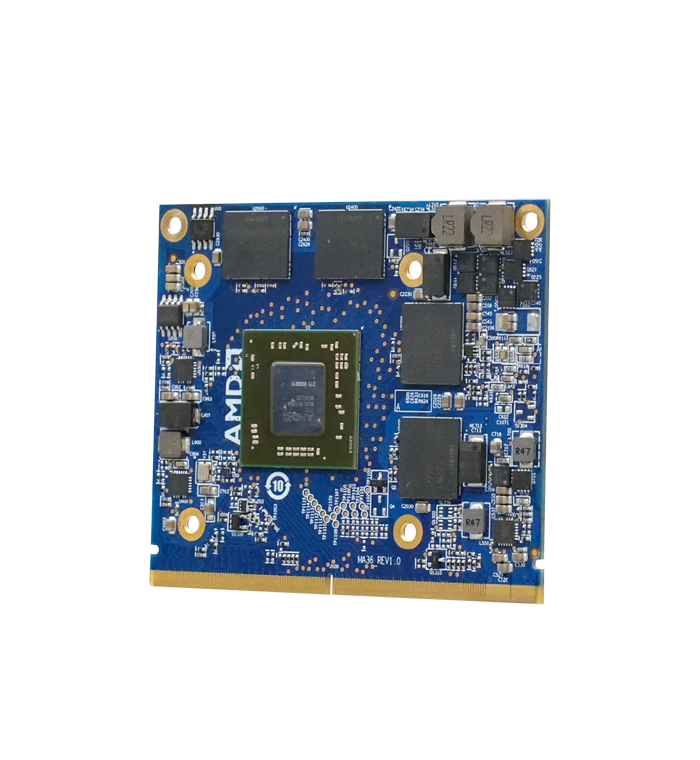

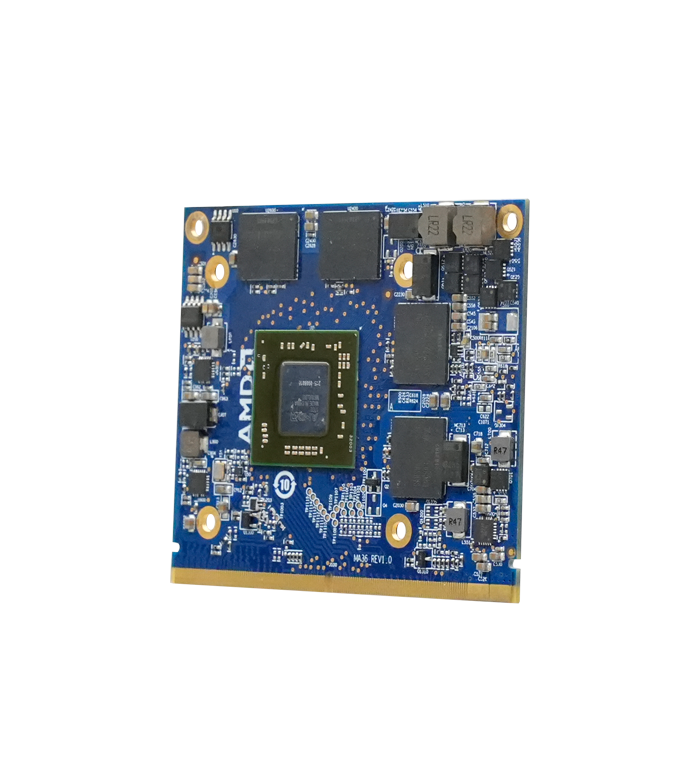

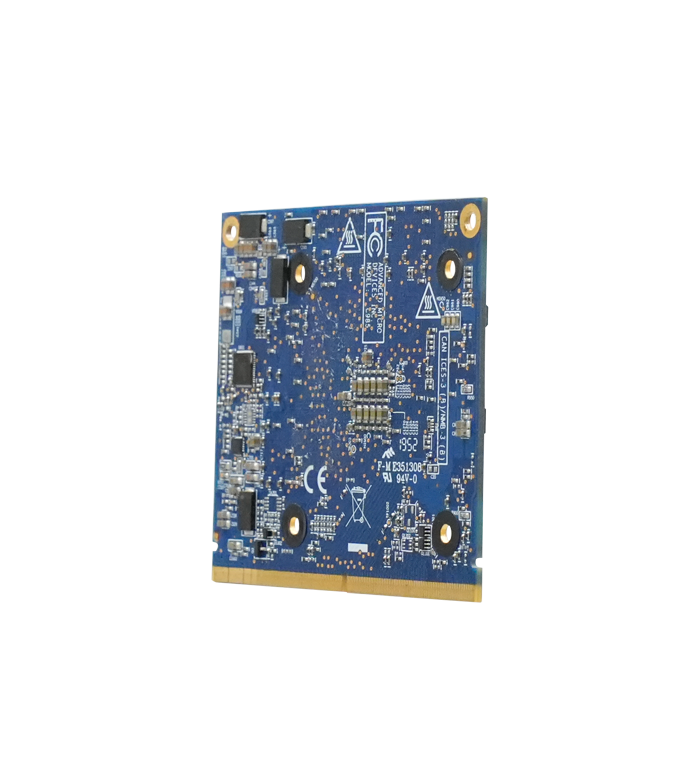

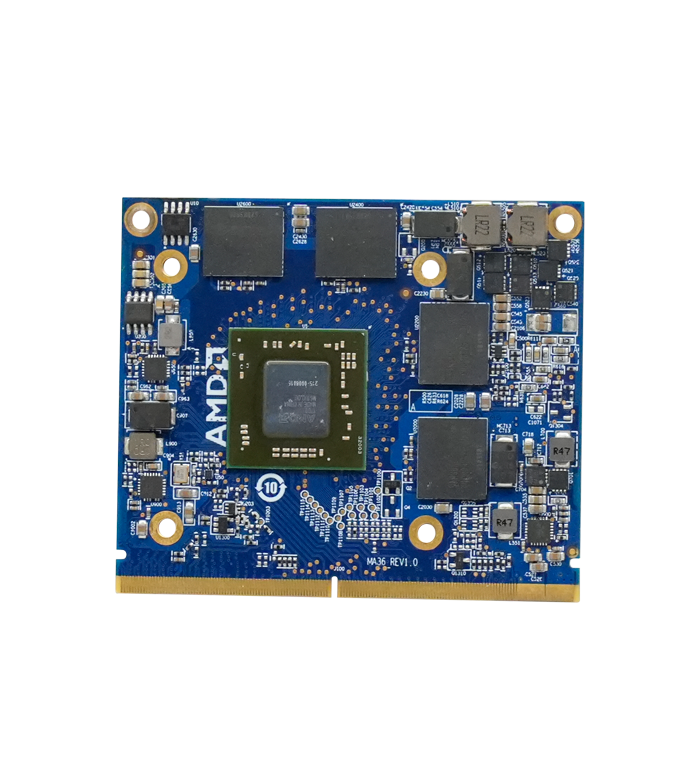

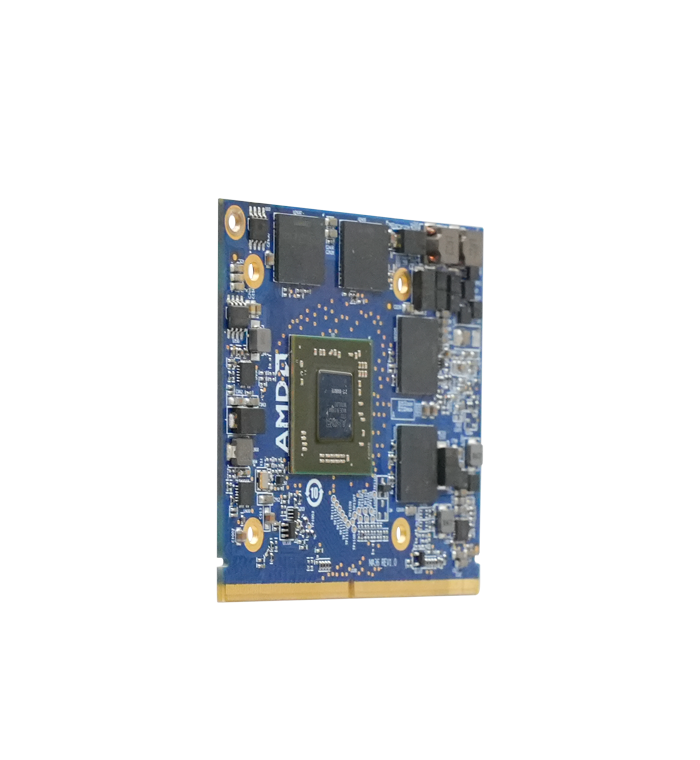

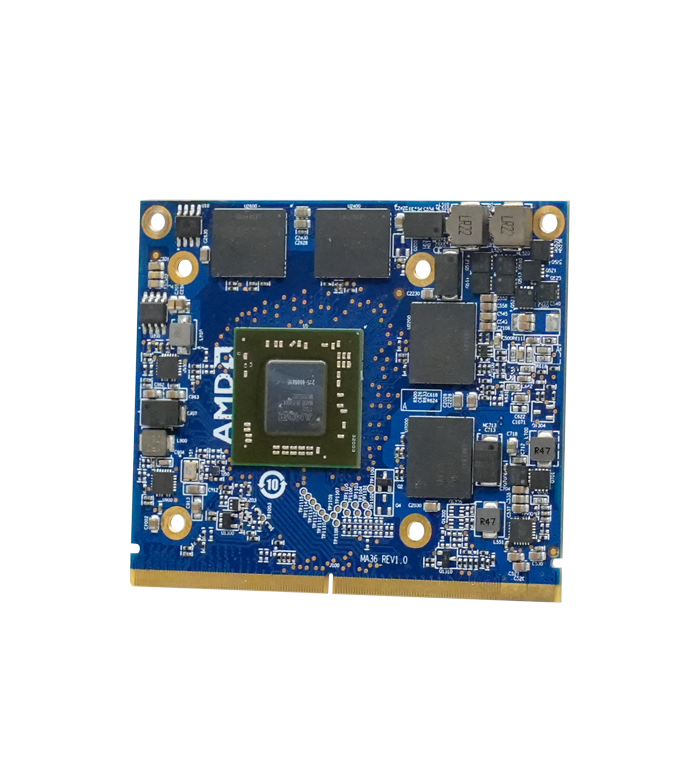

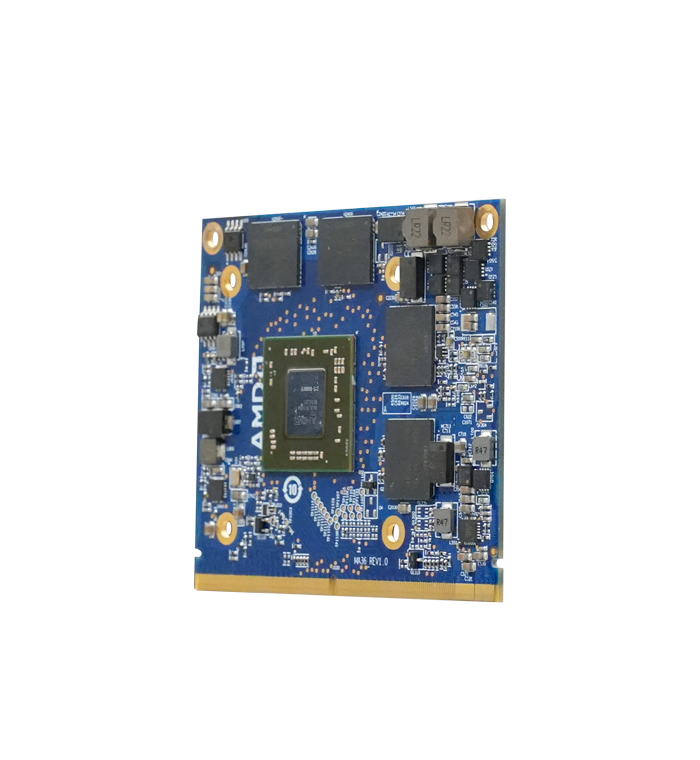

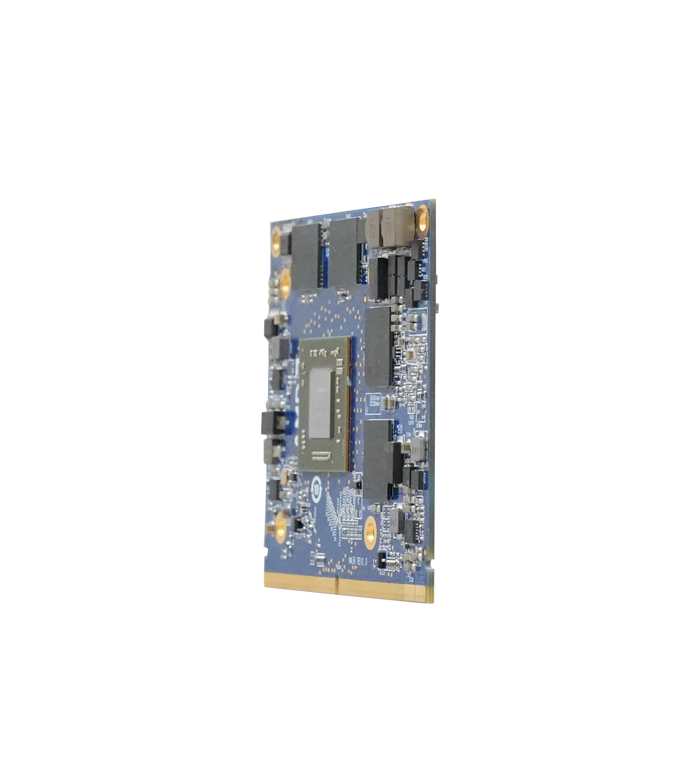

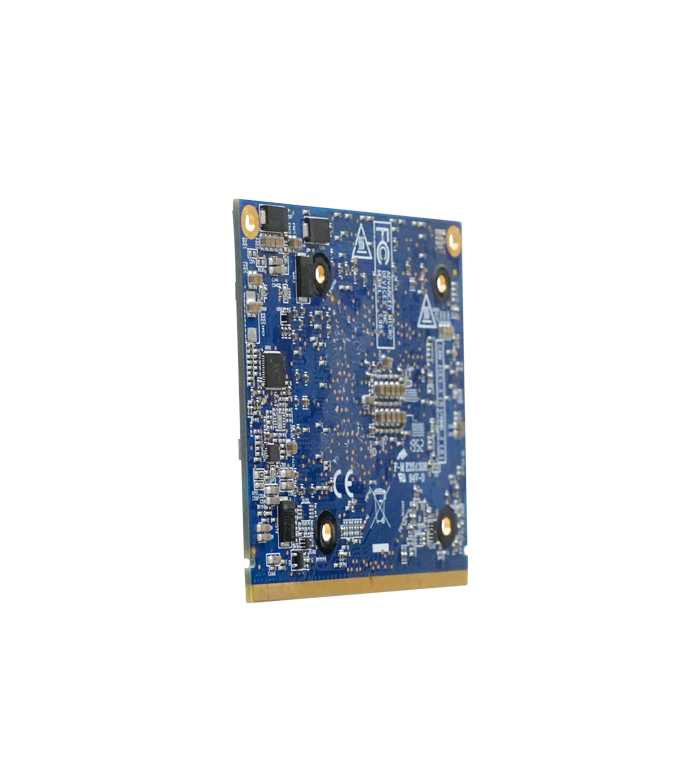

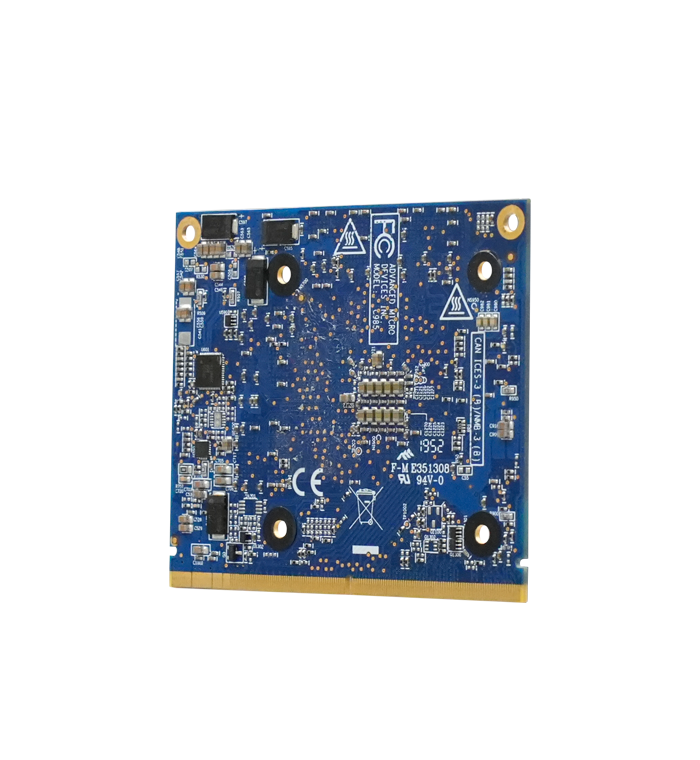

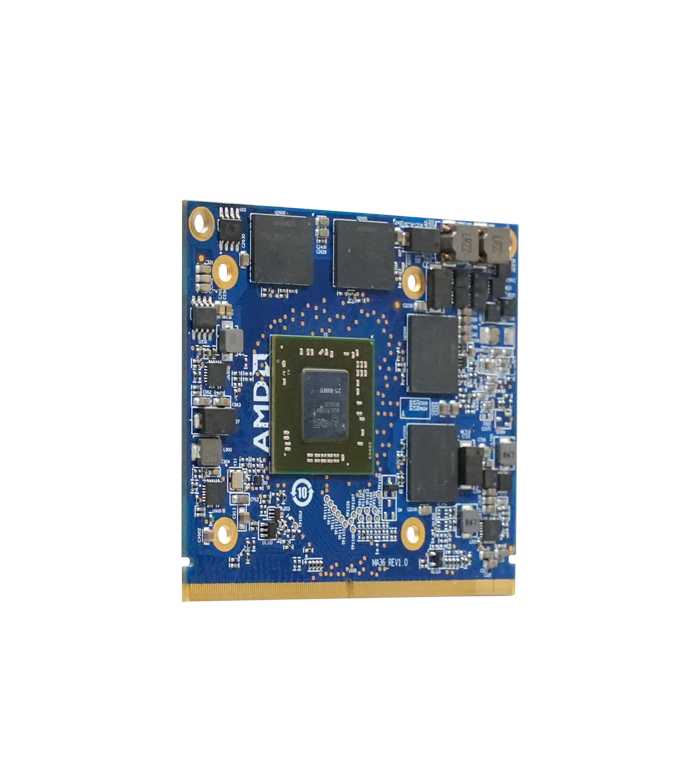

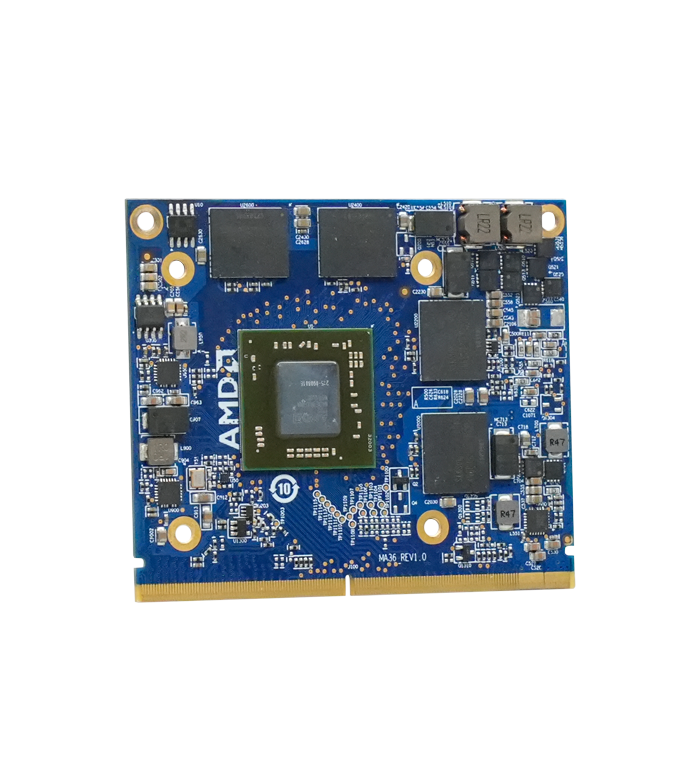

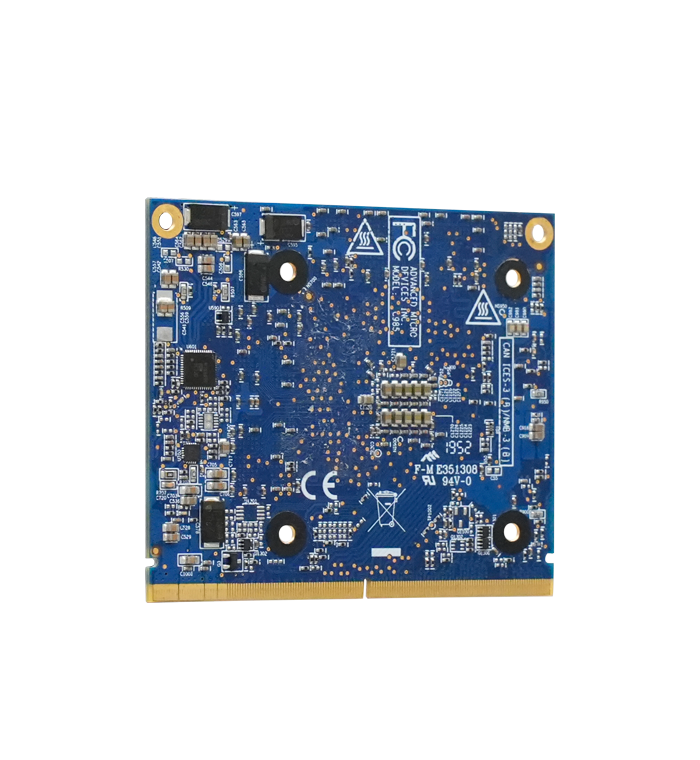

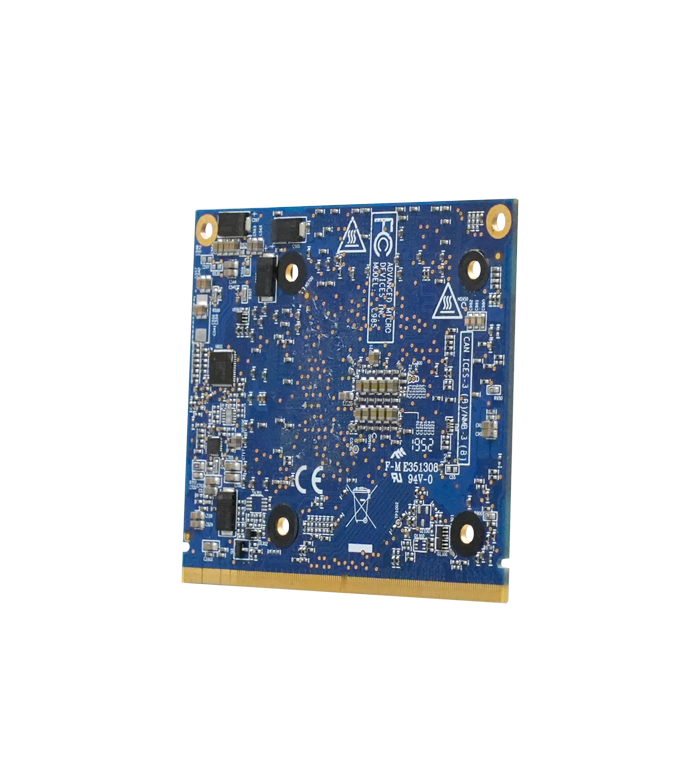

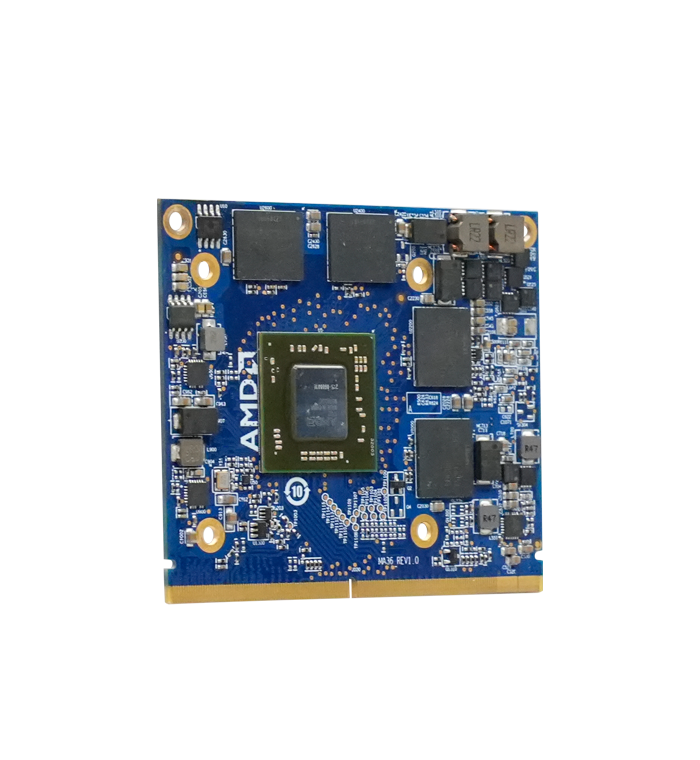

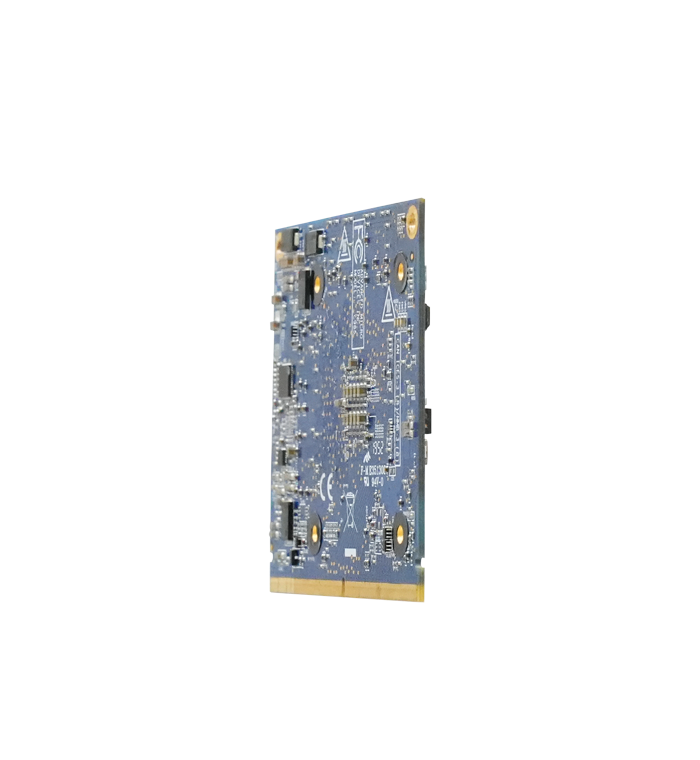

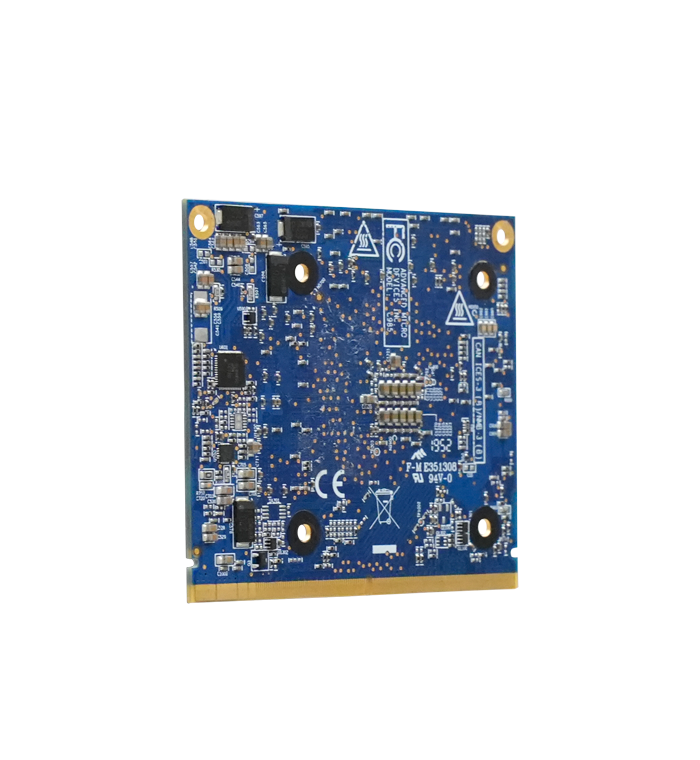

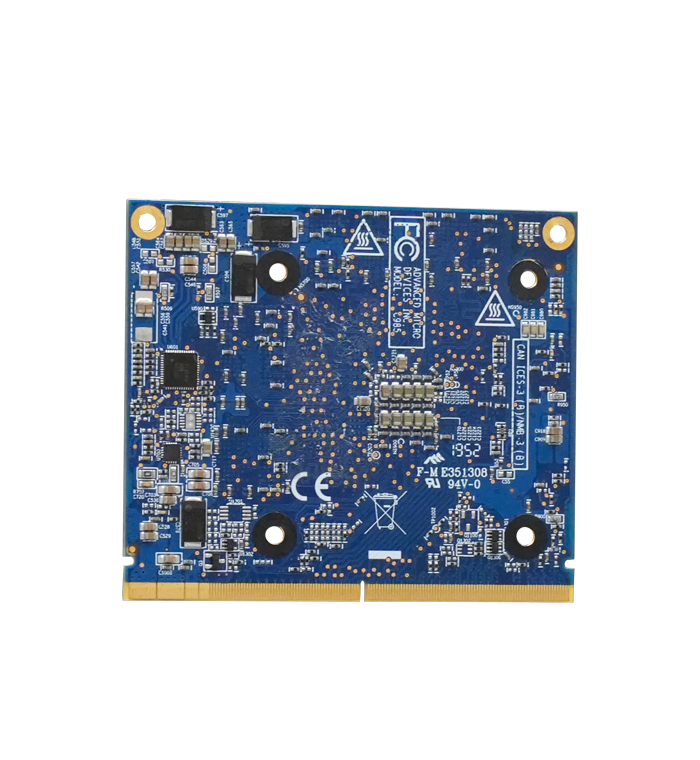

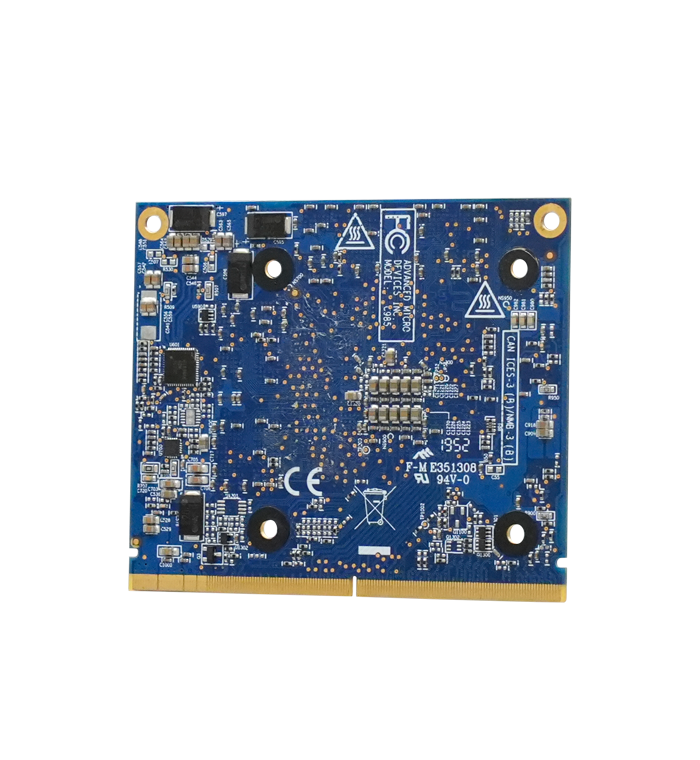

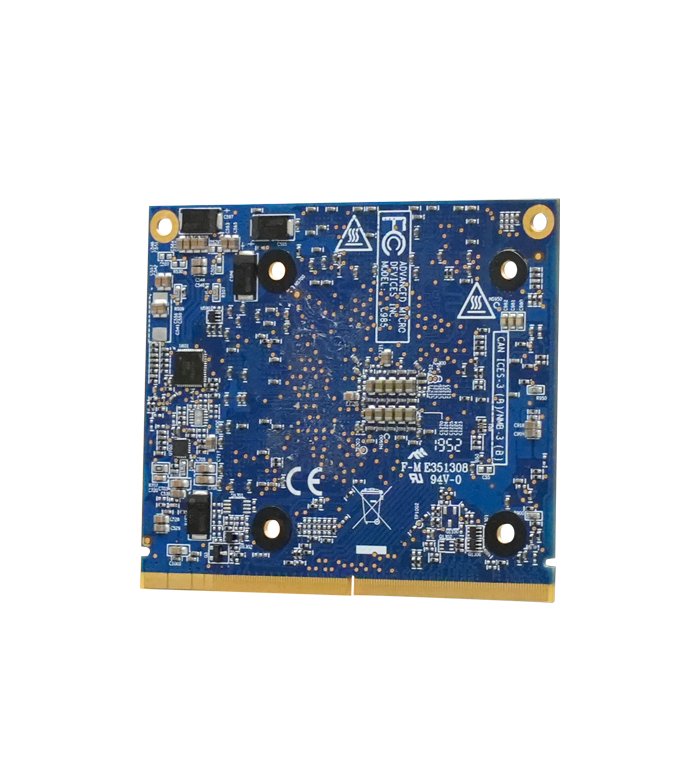

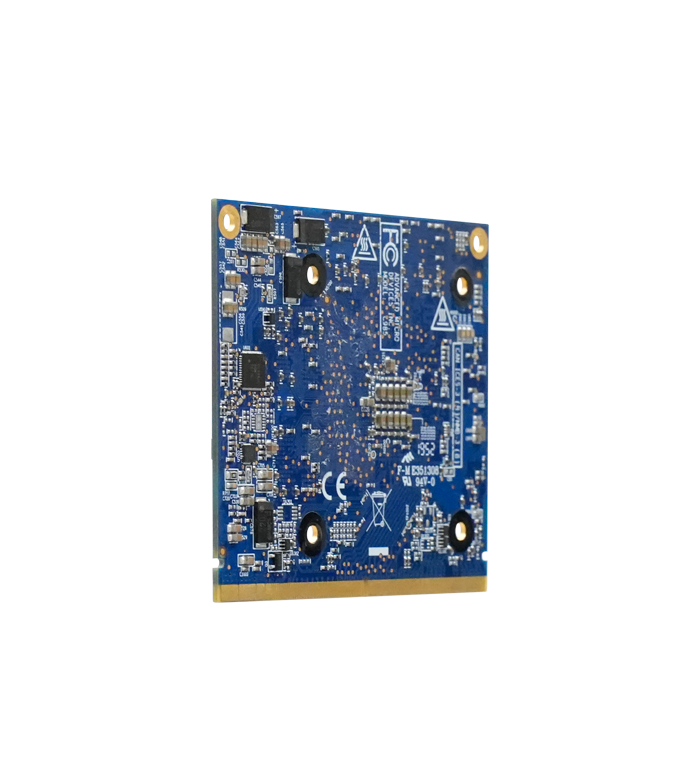

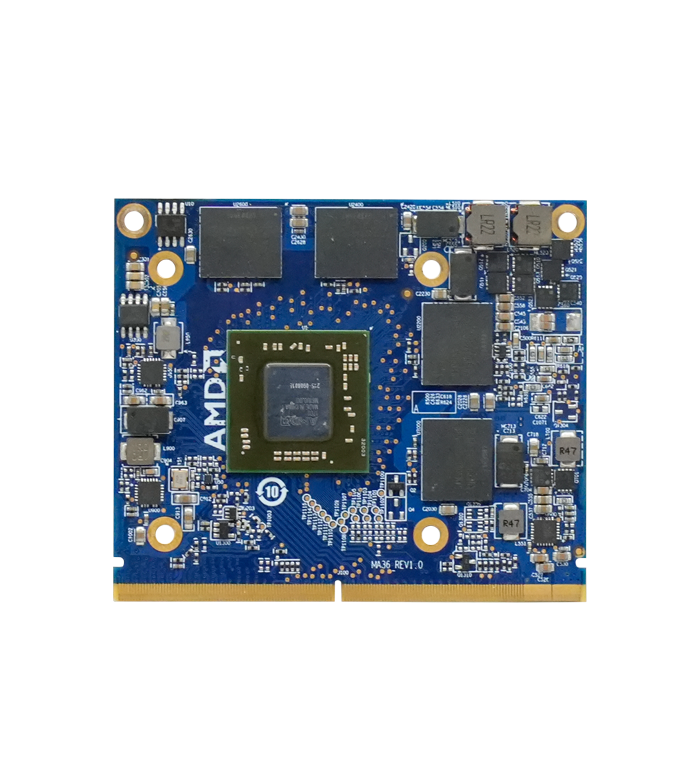

鼠标拖拽图片360°查看
产品特点
• AMD Radeon RX560显示芯片
• 4G GDDR5显存
• 2DP+2HDMI显示接口
• Type A尺寸
• MXM3.1插槽
| 处理器 Processor System | 图形核心 GPU | AMD Radeon RX560 | ||||
| GPU架构 Graphic Architecture | Polaris 21 | |||||
| 流处理器 Shader | 896SP | |||||
| 基本频率 GPU clock | 1187MHz | |||||
| 内存 Memory | 显存规格 Technology | 4G GDDR5 | ||||
| 显存位宽 Interface Width | 128bit | |||||
| 显存带宽 Bandwidth | 112.0GB/s | |||||
| 显示 Graphics | 输出接口 DP | 2Display Port1.4+2HDMI2.0 | ||||
| 扩展 Bus | 插槽规格 PCI express 3.0 | MXM3.1 | ||||
| 功耗 Power Consumption | 最大TDP功耗 Max Power Consumption | 80W | ||||
| 电源要求 Power Supply | 450W | |||||
| 环境 Environment | 工作环境 Operating | 储存环境 Storage Temperature | ||||
| 温度 Temperature | 0~45°C | -20~75°C | ||||
| 湿度 Humidity | 0~95%（non-condensing） | 10~90% | ||||
| 物理特性 Physica | 尺寸 Dimensions | 70*82mm | ||||
| 规格 Form Factor | MXM3.1 | |||||
| 保固 warranty | 3 Years | |||||
| 操作系统 OS | Microsoft | Windows 7/8/8.1/10 32/64bit、Windows 11 | ||||
| Linux | Linux 32/64bit | |||||
