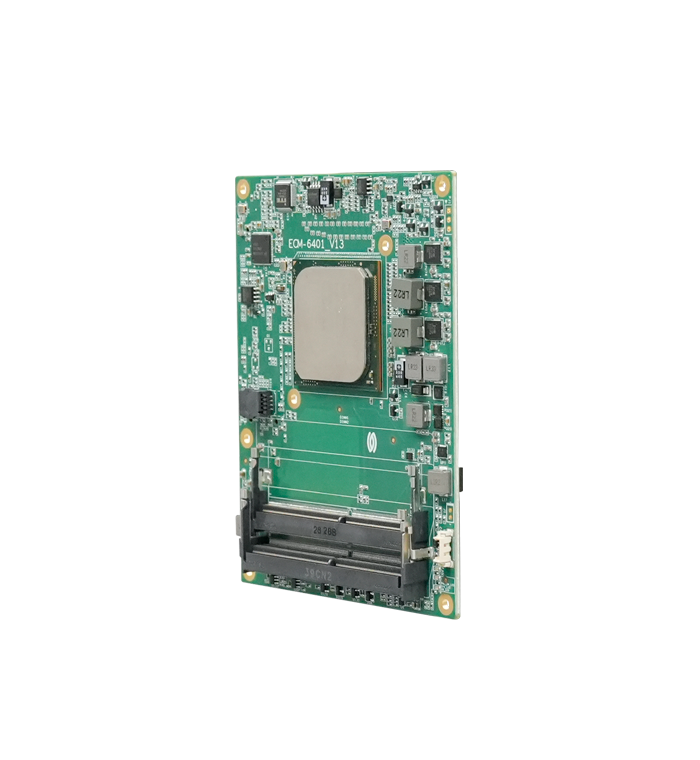

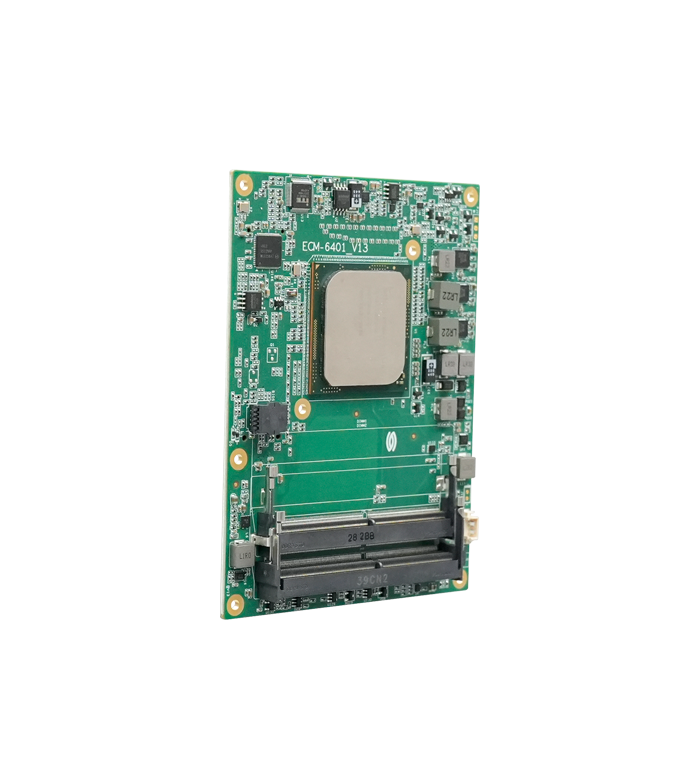

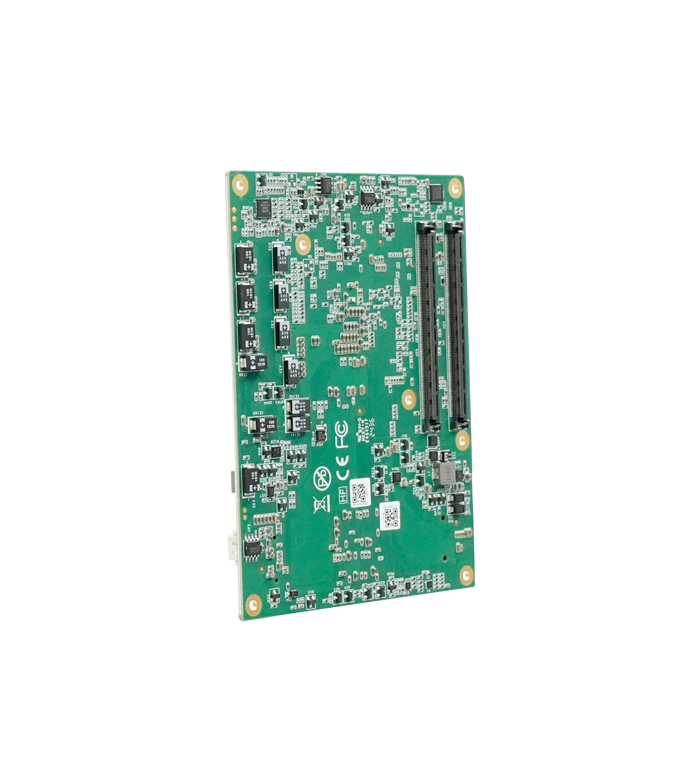

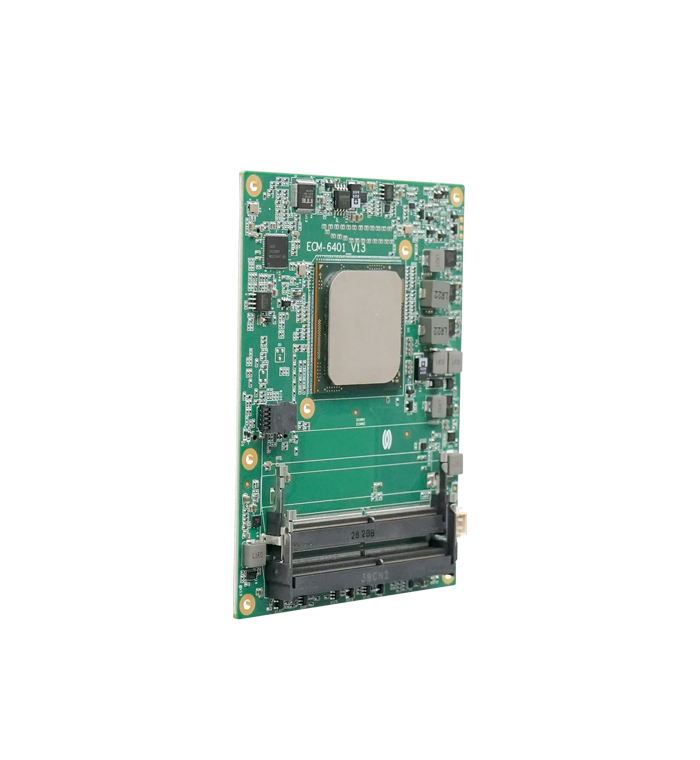

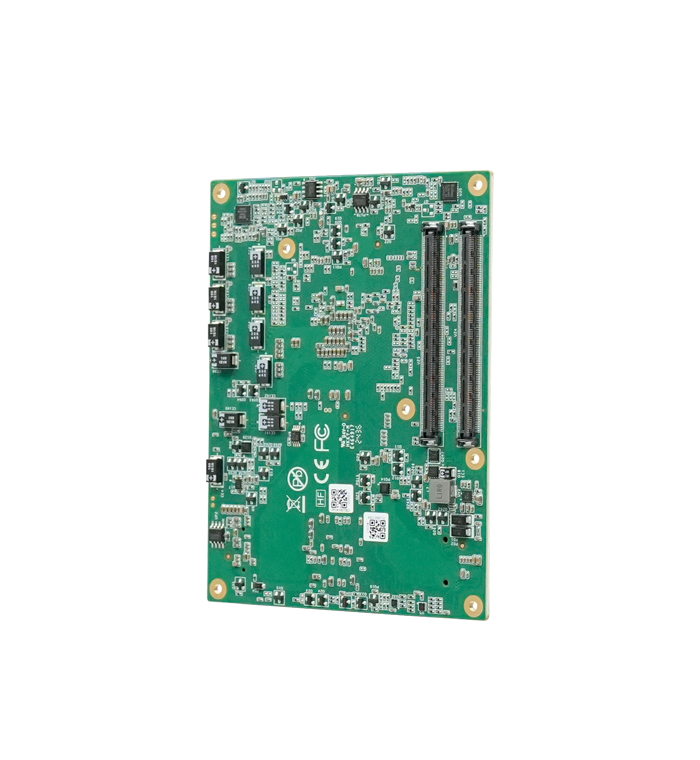

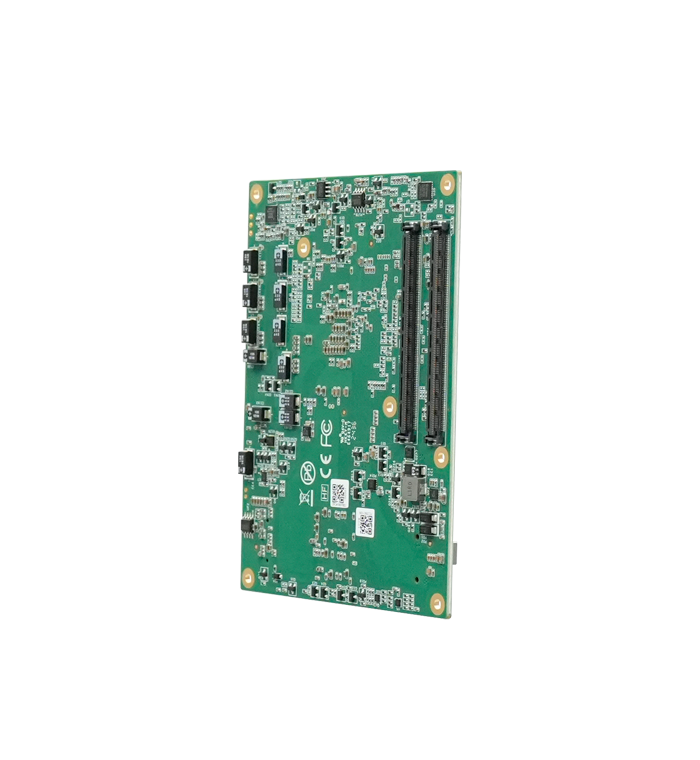

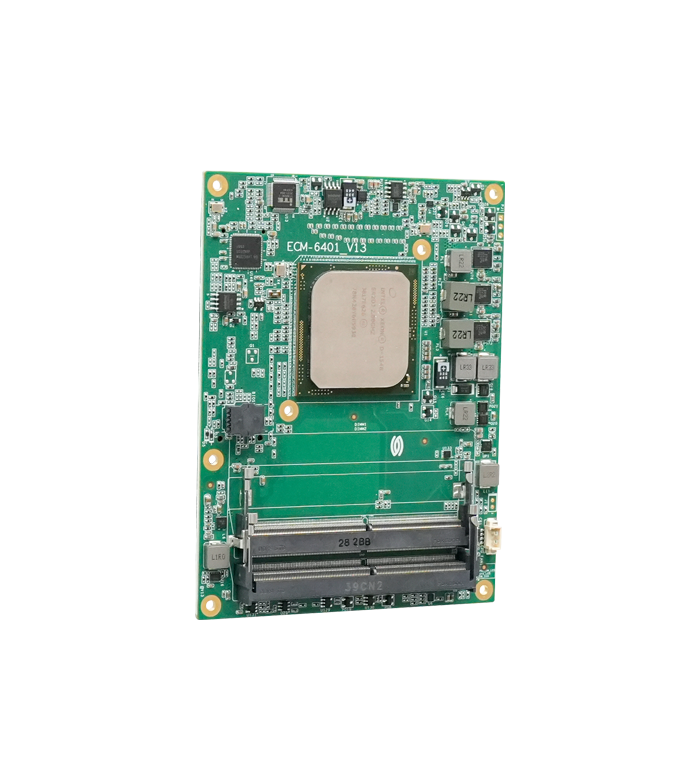

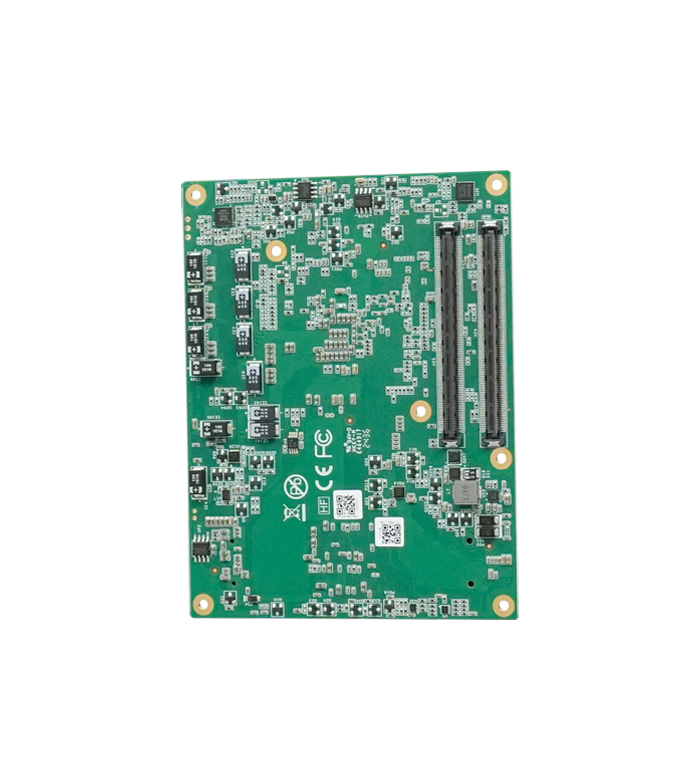

X86平台、工业级、PICMG COM-E接口定义核心板

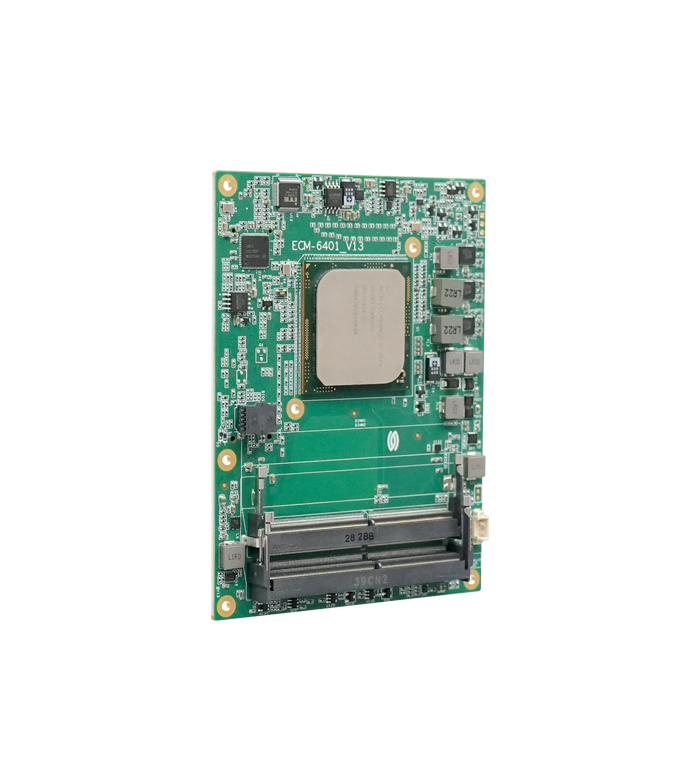

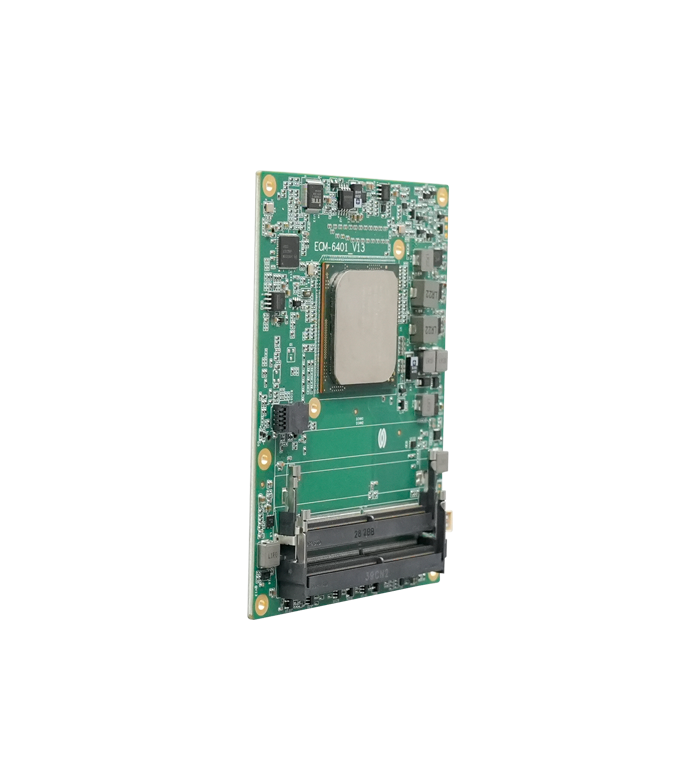

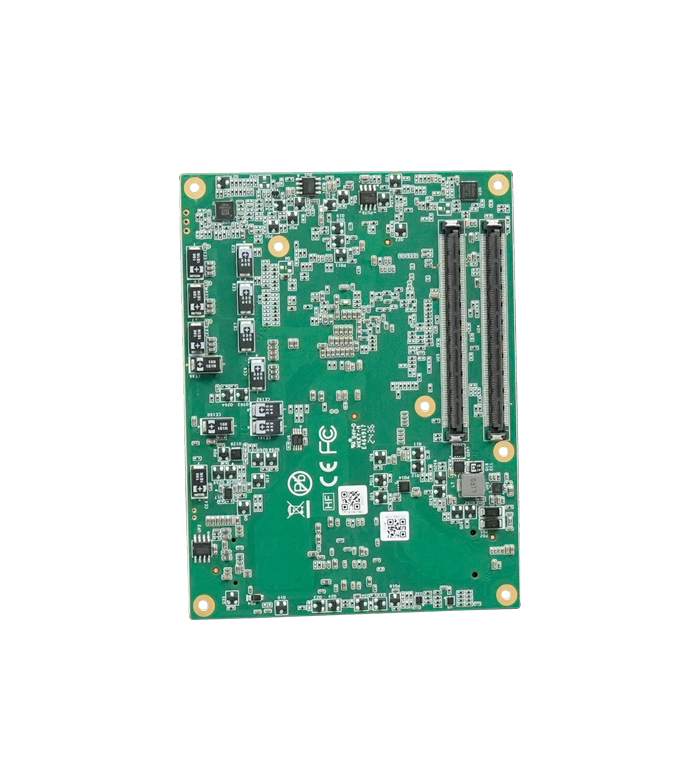

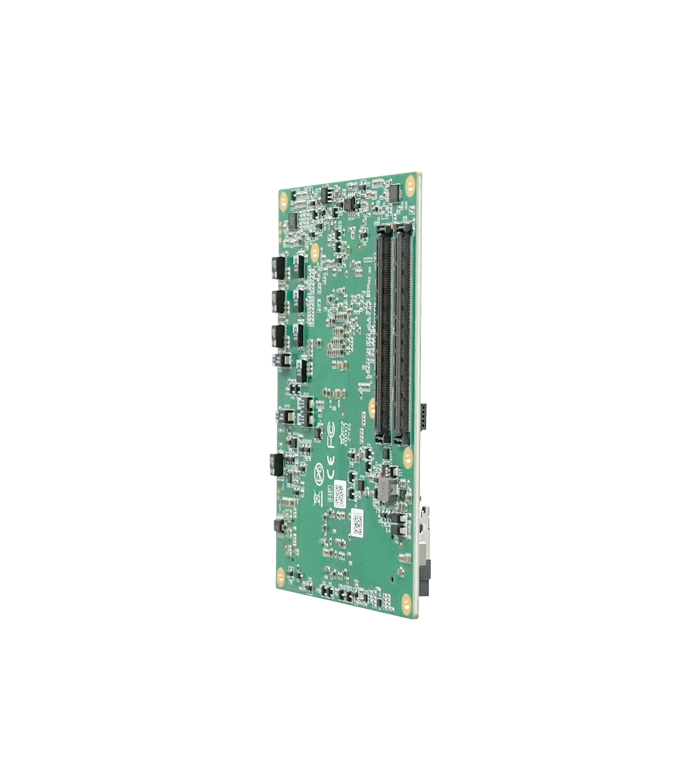

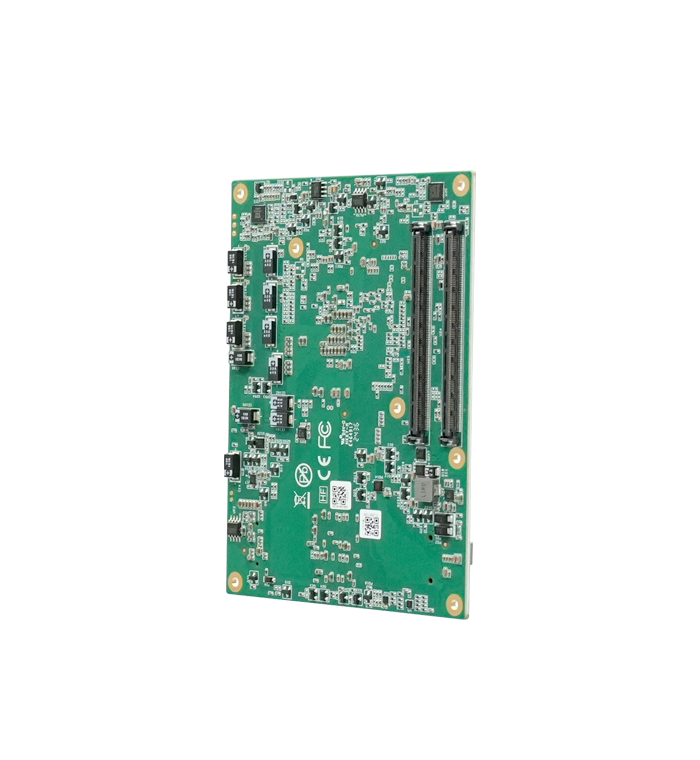

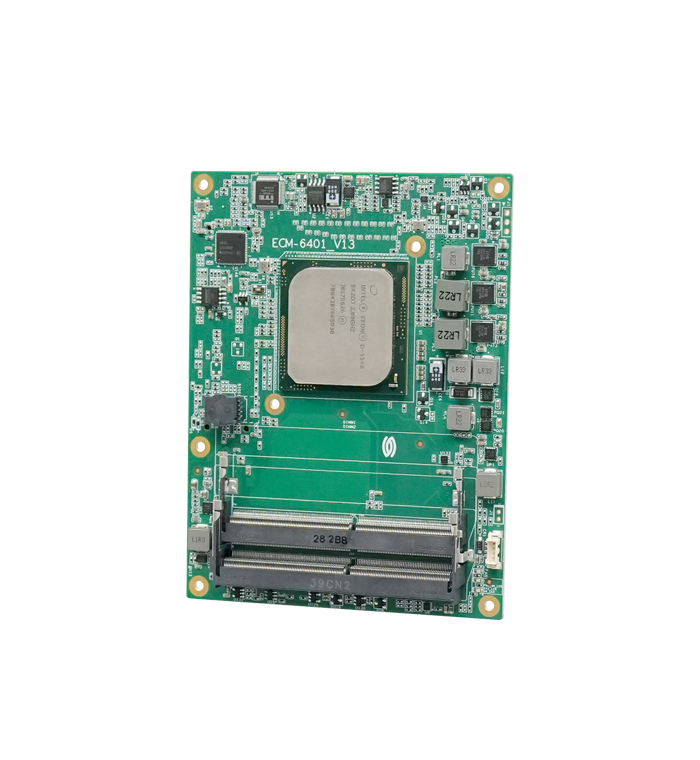

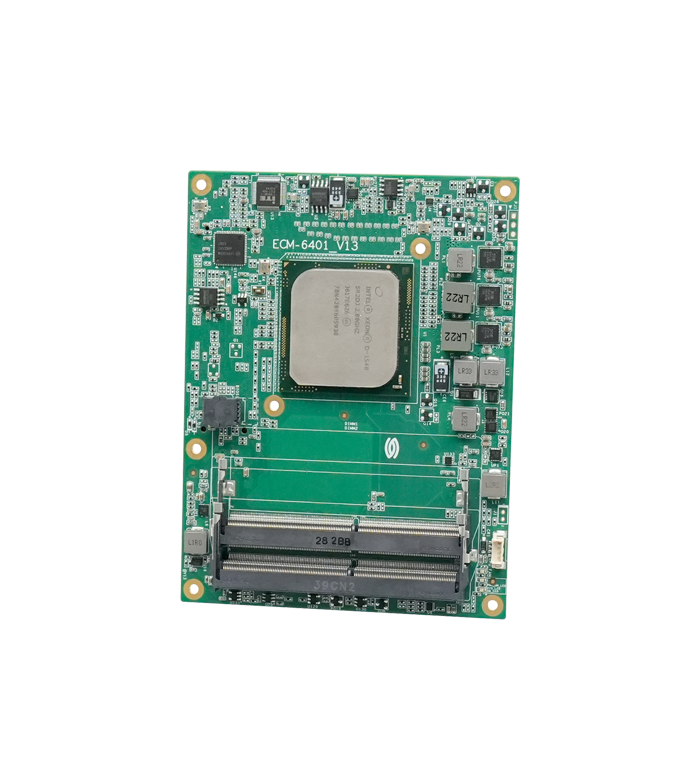

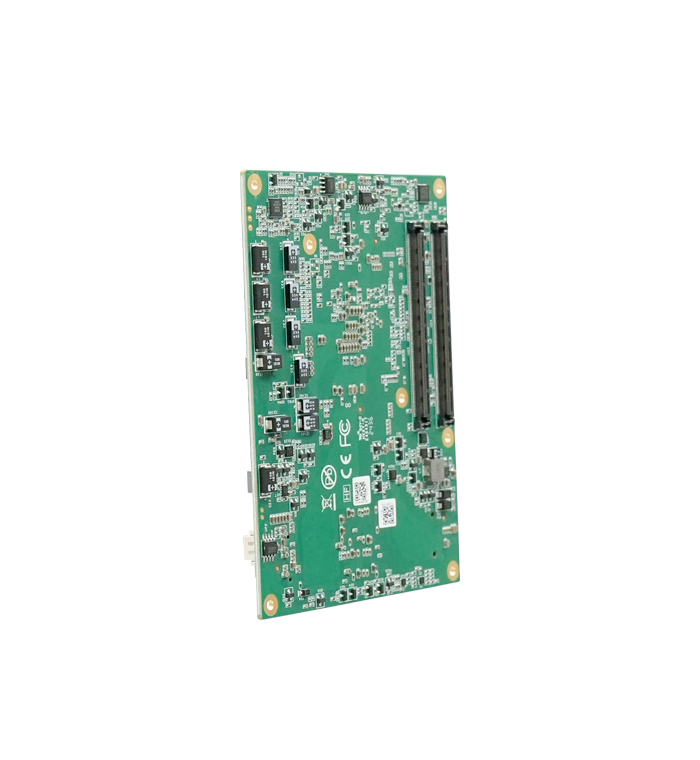

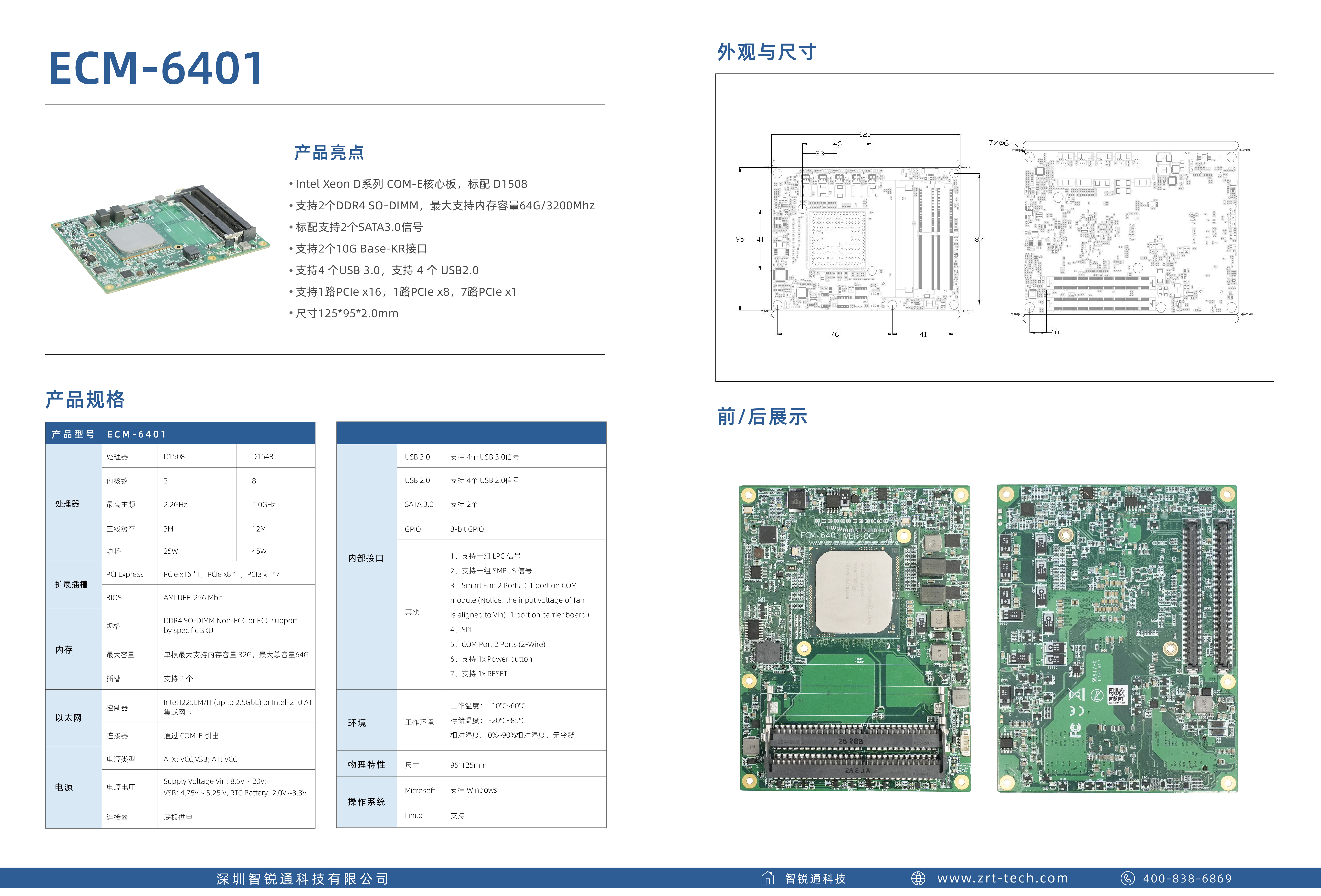

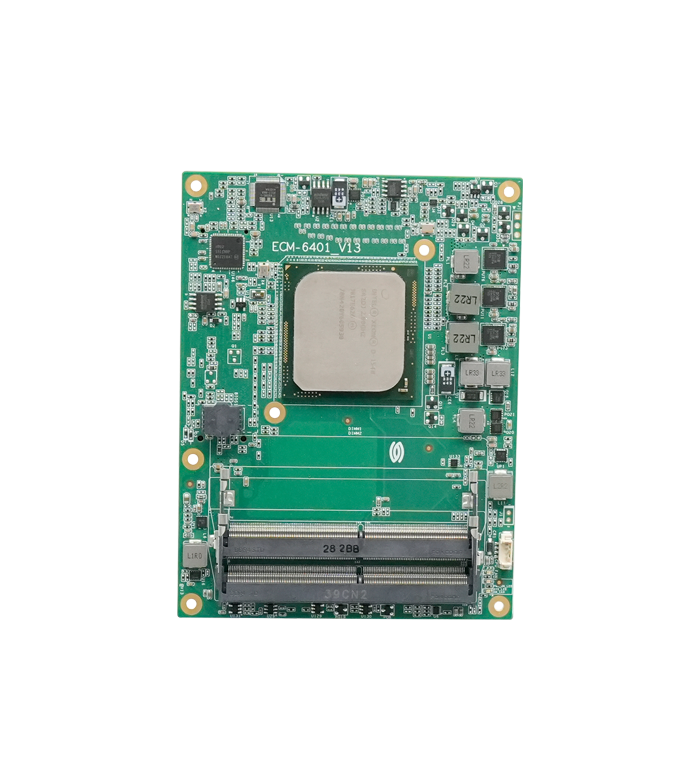

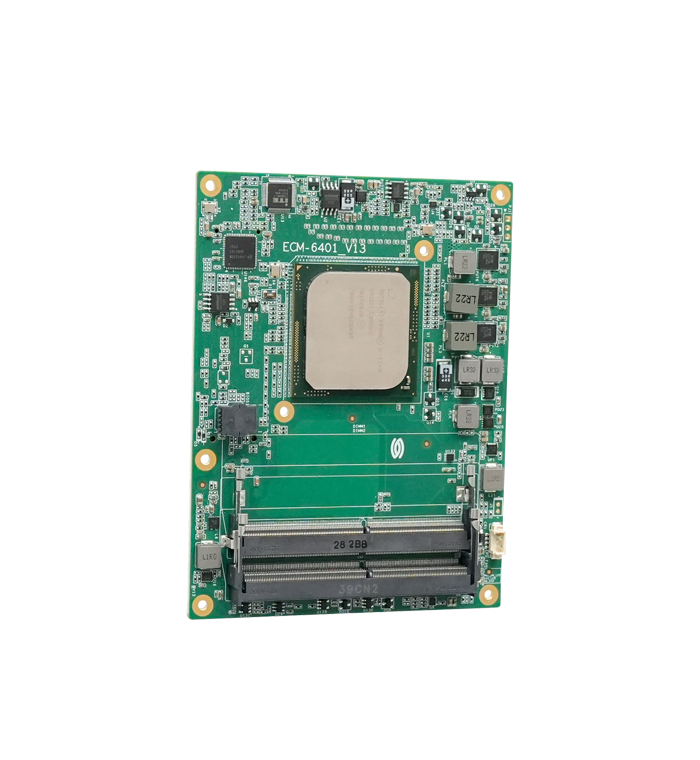

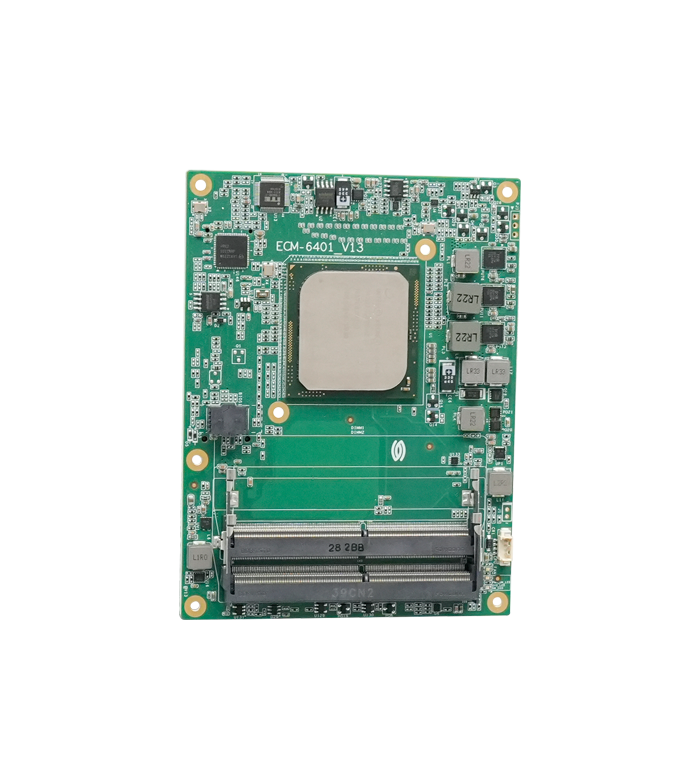

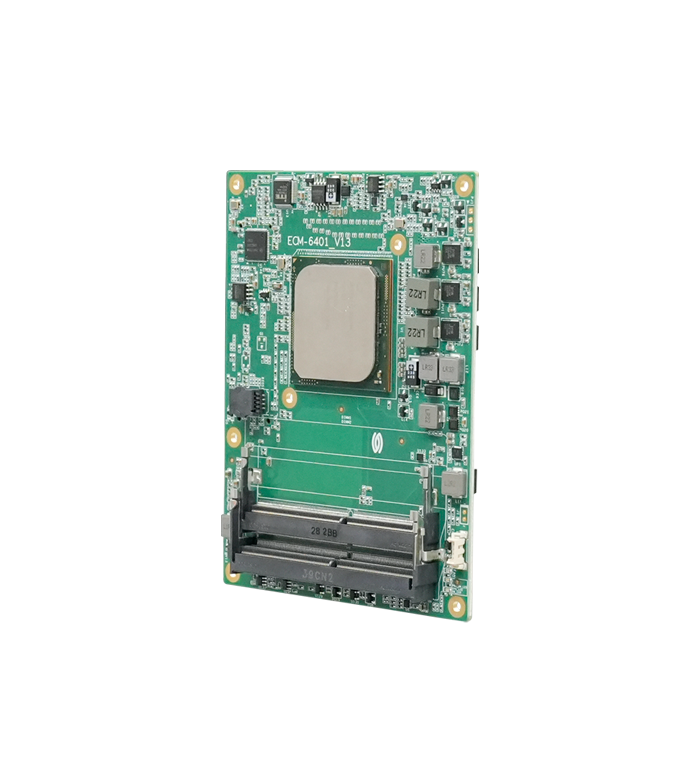

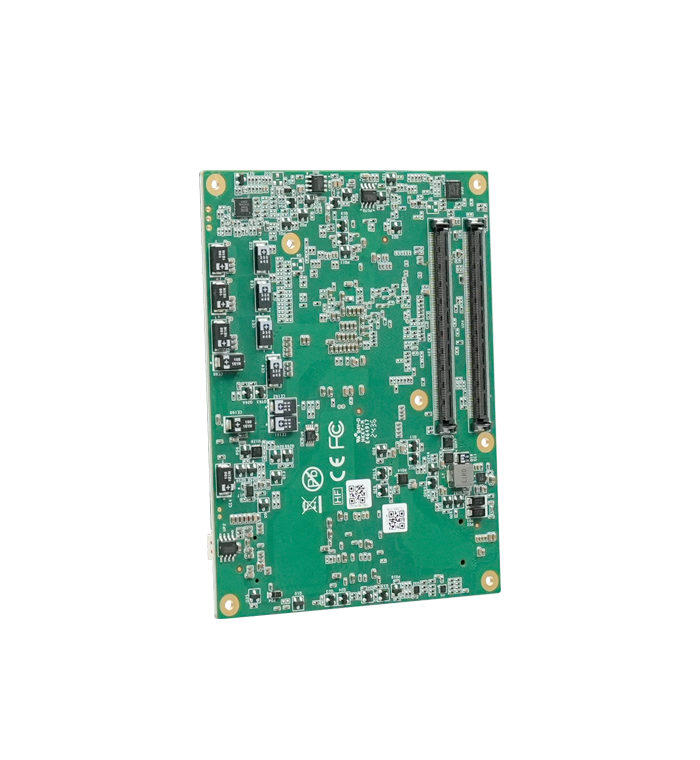

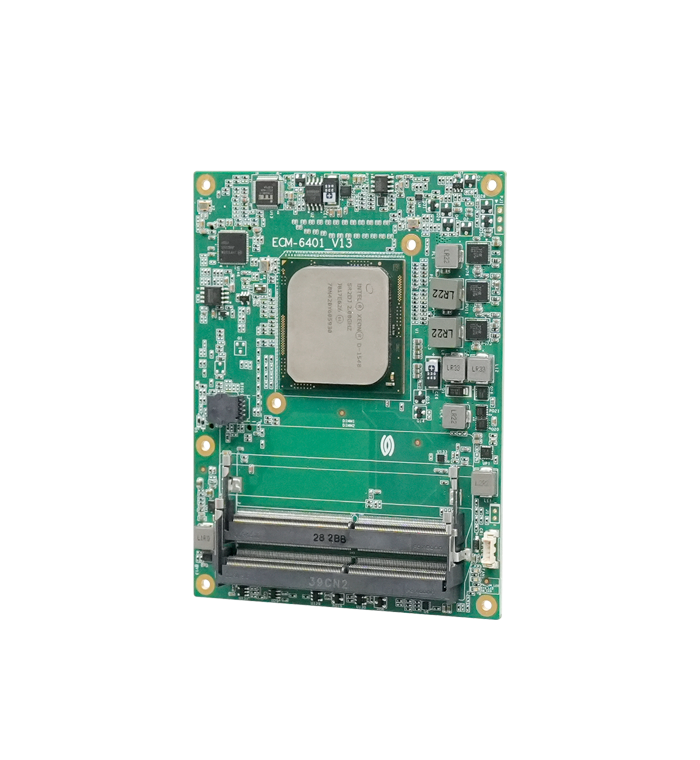

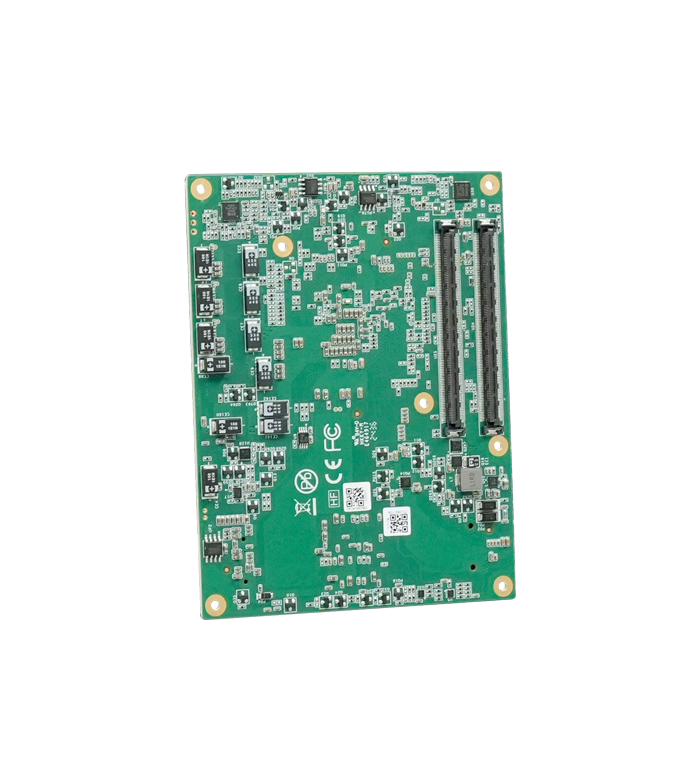

ECM-6401

l基于Intel®第六代Skylake平台处理器

l支持 FCBGA 1440i3/i5/i7处理器

l支持三个显示输出,HDMI1.4最大支持4096x2304@24HzDP最大支持4096x2304@60Hz

l双通道DDR4板载内存设计,最大支持16GB

l工作温度支持-20~70

lCOM-Express Type6 Basic板型,尺寸为95x125 mm



联系我们



Model

ECM-6401

Form Factor

Form Factor

COMe Type7

   Core Board



Processor System

CPU

D1508

D1548

Core Number

2

8

Max. Speed

2.2GHz

2.0GHz

L2 Cache

3M

12M

TDP (W)

25W

45W

Expansion Slot

PCI Express

PCIe x16 *1,PCIe x8 *1,PCIe x1 *7

 Memory

Technology

DDR4 SO-DIMM

Max. Capacity

64G

Socket

2

Ethernet

Controller

Intel I225LM/IT (up to 2.5GbE) or Intel I210 AT

integrated

Connector type

Through COM-E



Internal Connector

USB 3.0

4 x USB 3.0

USB 2.0

4 x USB2.0

SATS3.0

2 x SATA3.0

GPIO

8-bit GPIO



Others


1、1 x LPC

2、1 x SMBUS

3、Smart Fan 2 Ports( 1 port on COM module   (Notice: the input voltage of fan is aligned to Vin); 1 port on carrier board)

4、SPI

5、COM Port 2 Ports (2-Wire)

6、1 x Power button




7、1 x RESET

Connector


2 x COM-E 220PIN connector



Power Requirements

Power Type


ATX: VCC,VSB; AT: VCC

Power input

Voltage

Supply Voltage Vin: 8.5V ~   20V; VSB: 4.75V ~ 5.25 V, RTC Battery: 2.0V ~3.3V

Connector type

board supply



Environment

Operating

Temperature



0~60℃

Storage

Temperature



-20~85℃

Operating

Humidity



20~90%(non-condensing)

 Physical

Dimensions

95*125mm

Warranty

2 years



OS

Microsoft

Support

Linux

Support
