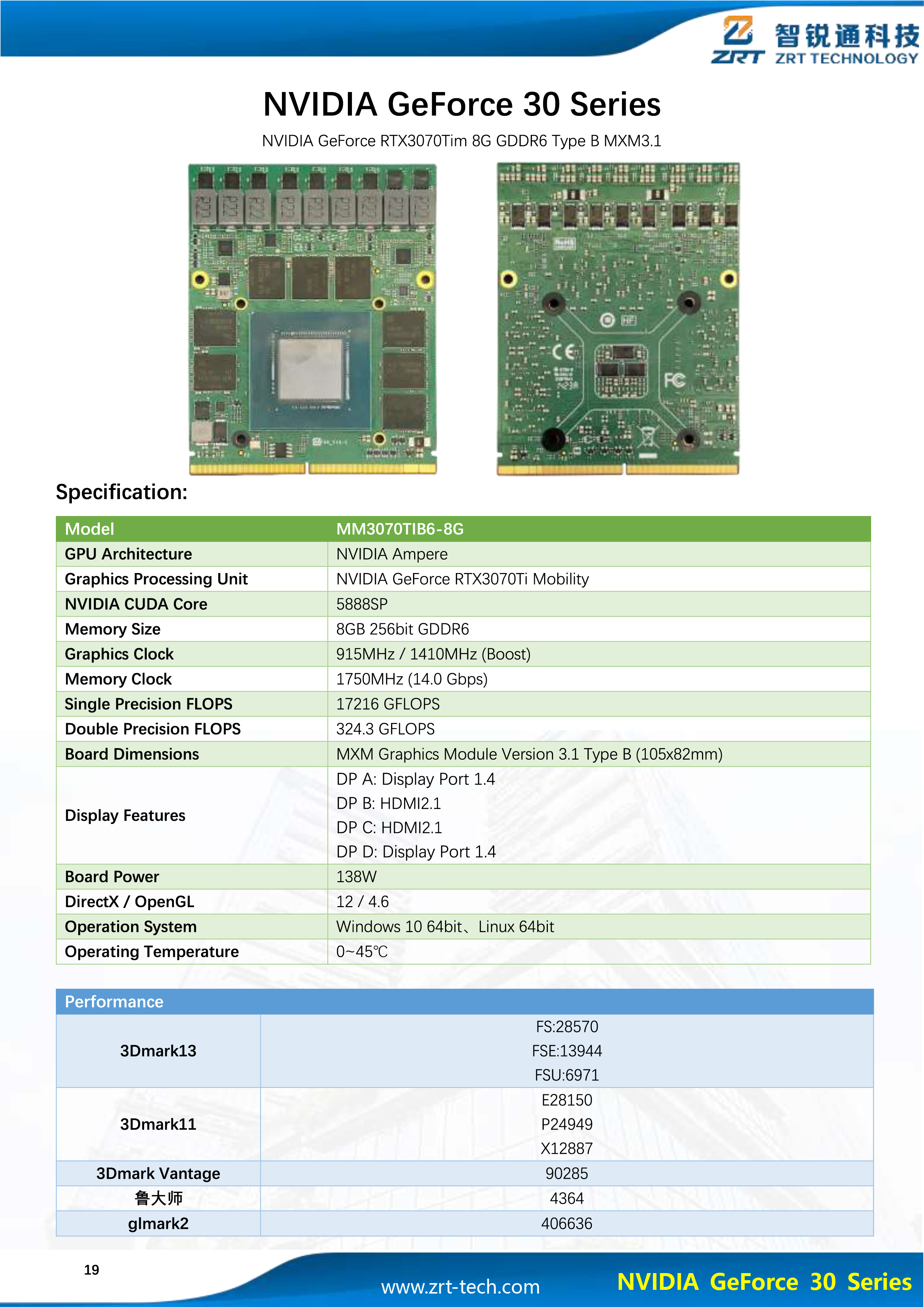

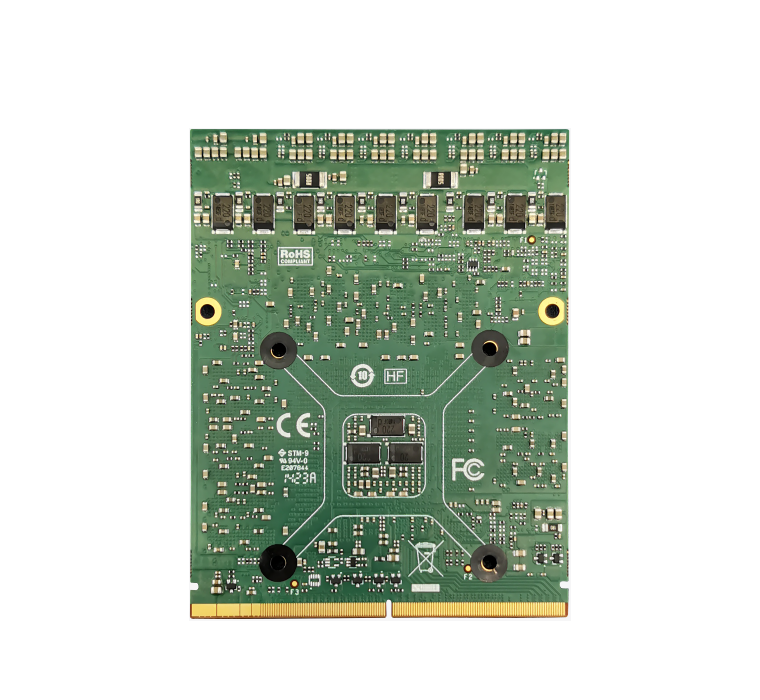

RTX3070Ti 8G GDDR6 Type B MXM3.1
RTX3070Ti-8G

NVIDIA GeForce RTX3070Ti Mobility显示芯片

8G GDDR6显存

4DP显示接口

Type B尺寸

MXM3.1插槽

联系我们



Model

MM3080TIB6-16G

GPU   Architecture

NVIDIA Ampere

Graphics   Processing Unit

NVIDIA GeForce   RTX3080Ti Mobility

NVIDIA CUDA   Core

7424

Bus Type

MXM3 .1 / up to PCI   Express 4.0

Graphics Clock

975MHz / 1395MHz   (Boost)

Tensor Core

232

RT Core

58

Single   Precision FLOPS

19954GFLOPS

Double   Precision FLOPS

433.7GFLOPS

Memory Size

16G 256bit GDDR6

Memory Clock

2000MHz (16.0 Gbps)

Memory   Bandwidth

512.0GB/s



Display   Features

DP_A: Display Port1.4++   DP_B: HDMI2.1

DP_C: HDMI2.1



DP_D: Display   Port1.4++



Max Resolution

DP:7680x4320@120Hz



HDMI:3840x2160@60Hz

Board Power

160W (Option 110W)

Board   Dimensions

MXM Graphics Module   Version 3.1 Type B (105x82mm)

Number of   output Channel

4

Operation   System

Windows 11/10 64bitLinux

VIN Range

DC 12~19V, 3.3V &   5V; +/-5%



OpenGL

4.6

OpenCL

1.2

DirectX

12

Video Playback

H.265, VC1, MPEG2   1080P



Operating   Temperature

0~45°C

Storage   Temperature

-20~75°C

Operating   Humidity

0~95% (non-condensing)

Storage   Humidity

10~90%



Surround   (Landscape)

Surround   (Portrait)

2x1(3840x1080@60Hz)

1x2(1920x2160@60Hz)

3x1(5760x1080@60Hz)

1x3(1920x3240@60Hz)

4x1(7680x1080@60Hz)

1x4(7680x1080@60Hz)

2x2(3840x2160@60Hz)

2x1(2160x1920@60Hz)

1x2(1080x3840@60Hz)

3x1(3240x1920@60Hz)

1x3(1080x5760@60Hz)

4x1(1080x7680@60Hz)

1x4(1080x7680@60Hz)

2x2(2160x3840@60Hz)

*Total resolution based on every display resolution is 1920*1080@60Hz.
